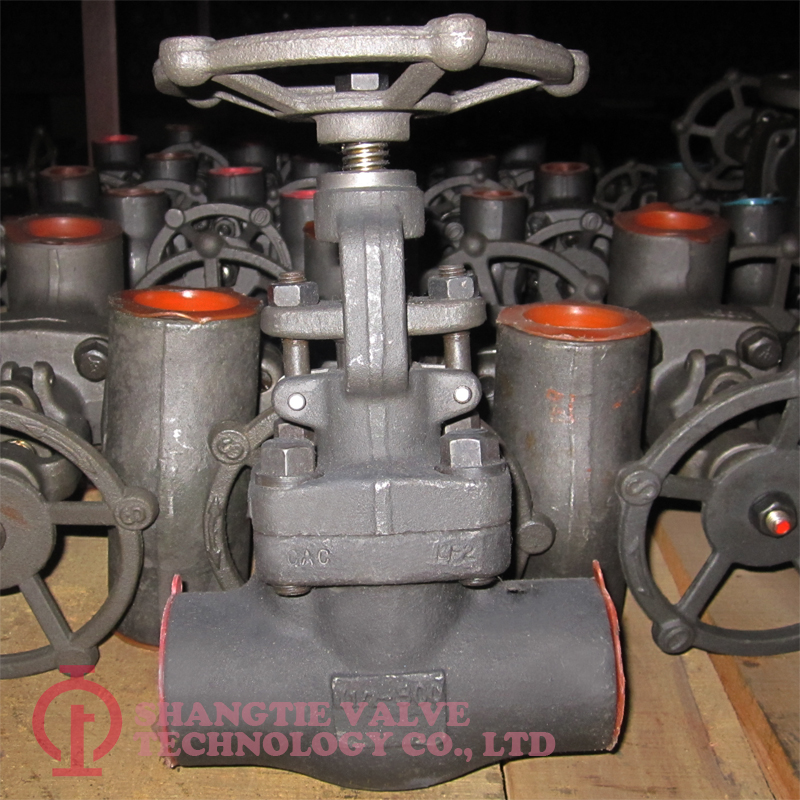

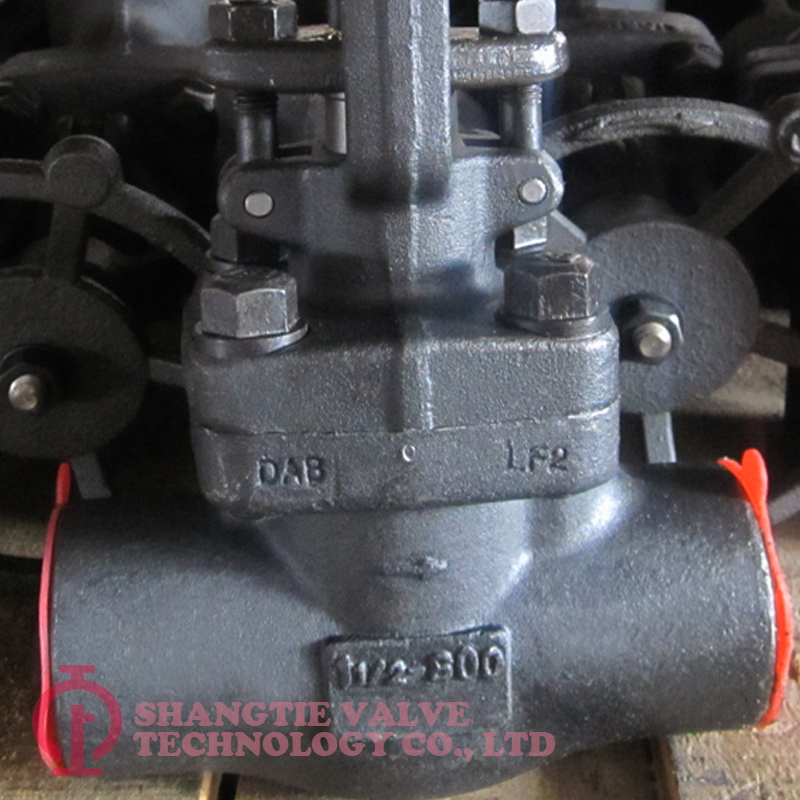

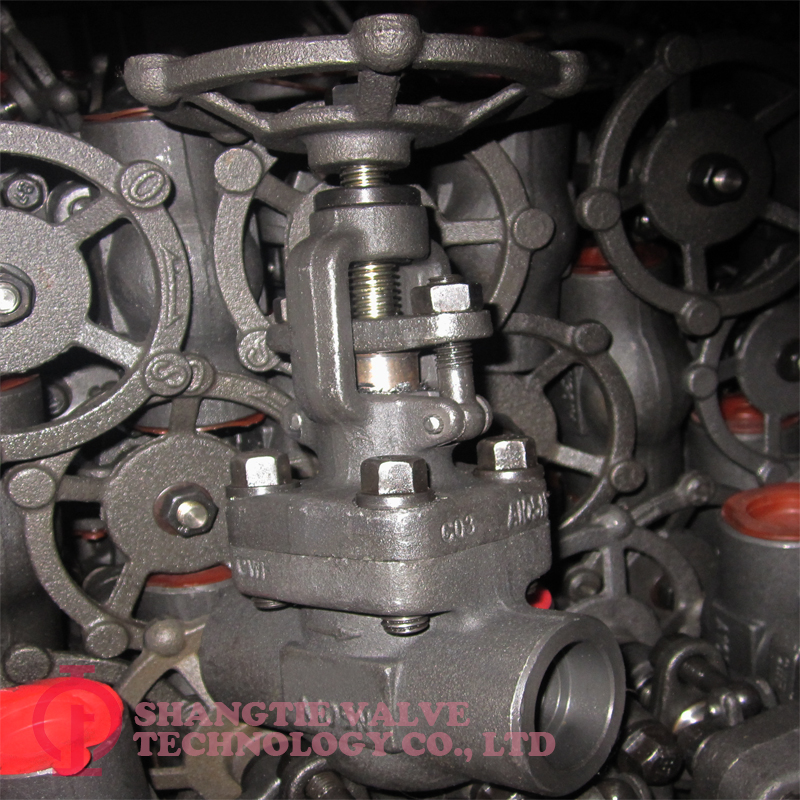

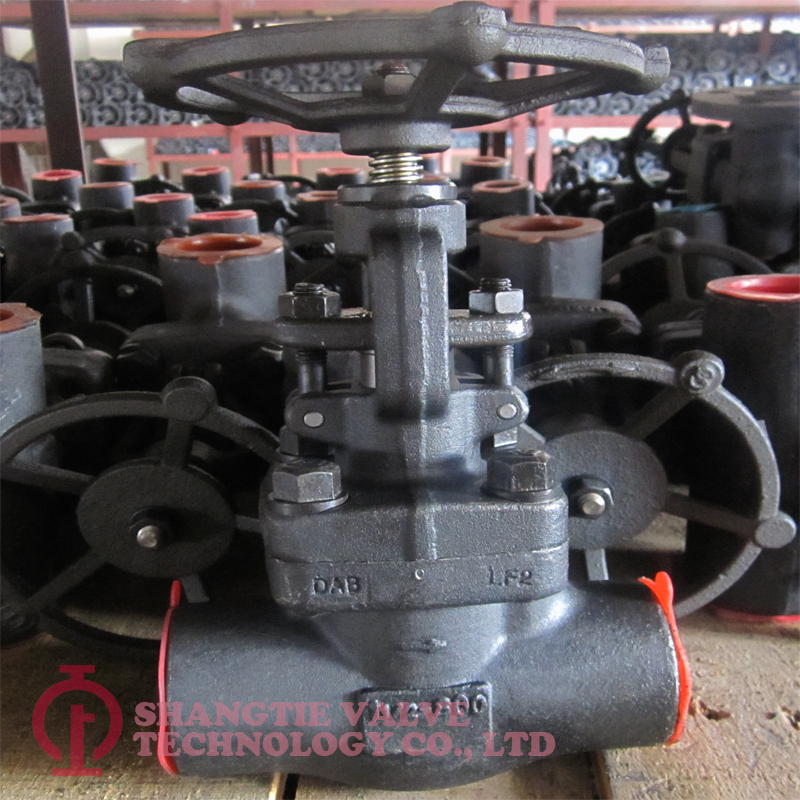

Key Features of the API 602 Bolted Bonnet Flanged Forged Steel Globe Valve

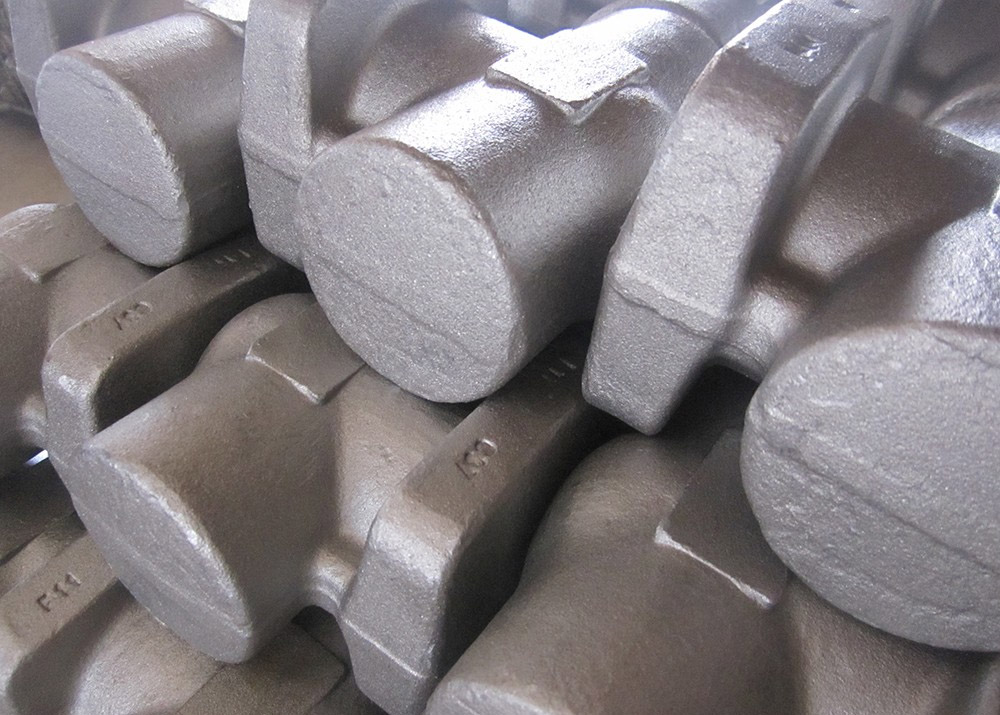

Forged Steel Construction: Forged steel valves are known for their superior strength and resistance to internal defects compared to cast steel valves. The API 602 bolted bonnet forged steel globe valve is made from high-quality forged steel, which allows the valve to perform under high-pressure and high-temperature conditions. Forged steel construction ensures long-lasting durability and excellent resistance to mechanical stress, thermal cycling, and corrosion.
This makes the valve suitable for critical applications where reliability is paramount, including high-pressure steam, gas, and liquid control in industries such as oil and gas exploration, petrochemical processing, and power generation.
Bolted Bonnet Design: The Bolted Bonnet design is an important feature of the API 602 globe valve. It refers to the method of securing the bonnet to the valve body with bolts. This design is favored for its ease of maintenance and repair. Unlike welded bonnet valves, which can be more difficult to service, the bolted bonnet provides quick access to the valve’s internals, such as the stem, disk, and seat, for inspection, cleaning, or replacement of parts.
The bolted bonnet configuration also ensures a more secure and leak-tight seal compared to other bonnet designs. The strength of the bolted connection enhances the valve’s resistance to pressure and temperature fluctuations, making it suitable for high-demand applications.
Flanged End Connections: The flanged end design refers to the valve’s connection to pipes using flanges. Flanged connections are widely used in piping systems because they allow for easy assembly and disassembly, which is essential during maintenance, inspection, or system modifications. The flanged ends are typically bolted to the corresponding flanges on the pipes, ensuring a strong, leak-proof connection.
The use of flanged ends in the API 602 valve ensures that it can be easily integrated into existing pipeline systems. Flanged connections also accommodate various pipe sizes and pressure ratings, making the valve highly versatile for different installation needs.
Globe Valve Design for Flow Control: The globe valve design is characterized by a movable disk or plug that controls the flow of fluids or gases by varying the opening between the valve’s seat and the plug. Globe valves are known for their excellent throttling and flow control capabilities, making them ideal for applications where precise flow regulation is necessary.
The API 602 bolted bonnet forged steel globe valve is specifically designed for applications requiring fine control over the flow of fluids, whether in open or closed systems. This ability to precisely regulate flow makes it an indispensable component in industries like power generation, water treatment, and chemical processing.
High Pressure and Temperature Ratings: The API 602 bolted bonnet forged steel globe valve is engineered to handle high-pressure and high-temperature conditions. The valve can operate at pressures up to 6000 psi (depending on the specific valve model and material) and temperatures reaching 850°F (454°C) or higher. These performance ratings make the valve suitable for critical applications in environments where conventional valves might fail due to thermal or pressure stresses.
Whether controlling steam in power plants, gas in petrochemical facilities, or liquids in high-pressure pipeline systems, the API 602 globe valve provides a reliable solution for maintaining system performance and safety.
Precision Flow Control: The globe valve design allows for exceptional throttling capabilities, giving operators fine control over fluid or gas flow. This is especially important in systems where the flow rate must be adjusted or regulated continuously, such as in chemical processes, water treatment, and HVAC systems. The ability to precisely regulate the flow helps optimize system performance and ensures safe operation.
Benefits of API 602 Bolted Bonnet Flanged Forged Steel Globe Valve
Durability and Strength: The forged steel construction ensures exceptional strength and resistance to wear and tear, providing long-term reliability even in harsh conditions.
Ease of Maintenance: The bolted bonnet design allows for quick and easy access to internal components for inspection, cleaning, and part replacement.
Leak-Proof Sealing: The flanged end connections and bolted bonnet design provide a strong and leak-proof seal, essential for high-pressure systems.
Precise Flow Control: Globe valves are known for their excellent throttling capabilities, allowing precise regulation of flow in pipelines and process systems.
High-Pressure and Temperature Performance: The valve is capable of handling high-pressure and high-temperature conditions, making it suitable for critical industrial processes.
Application Of API 602 bolted bonnet forged steel globe valve
The API 602 bolted bonnet forged steel globe valve is versatile enough for a wide range of industrial applications. Some of the primary sectors and uses include:
Oil and Gas Industry: In the oil and gas industry, the valve is used for controlling the flow of crude oil, natural gas, refined products, and associated fluids. It is commonly employed in upstream exploration, midstream pipeline transport, and downstream refinery operations. The API 602 globe valve ensures tight shutoff and reliable control of media in pipelines, pressure vessels, and process equipment.
Upstream Operations: In exploration and production, globe valves are used to regulate the flow of oil or gas in wellheads, pipelines, and processing facilities. Their precision flow control is essential for managing the complex systems found in offshore and onshore oil and gas operations.
Midstream Operations: In pipeline transportation, globe valves are used to regulate the flow of crude oil, natural gas, and refined products over long distances. The ability to handle high pressures and maintain a secure seal is critical for the safe and efficient transport of hydrocarbons.
Downstream Operations: Refineries and petrochemical plants use API 602 globe valves to control the flow of chemicals, gases, and fluids during the refining and processing stages.
Chemical and Petrochemical Industry: Chemical and petrochemical plants require valves that can manage aggressive chemicals, high temperatures, and fluctuating pressures. The API 602 forged steel globe valve meets these demands by providing tight shutoff and reliable flow regulation in pipelines and process systems.
Chemical Processing: These valves are used to control the flow of reactants, intermediates, and final products during chemical manufacturing. Whether used in reactors, distillation columns, or mixing vessels, the precision and durability of the globe valve ensure safe and efficient operation.
Petrochemical Refineries: In refining processes, globe valves regulate the flow of oils, gases, and chemical feedstocks. Their ability to handle high temperatures and corrosive media makes them ideal for these applications.
Power Generation: Power plants rely on globe valves for controlling steam, water, and gas flow in turbines, boilers, and heat exchangers. These valves help optimize energy generation processes and ensure efficient operation of the plant. Their ability to withstand high pressures and extreme temperatures makes them suitable for critical systems.
Boiler Systems: Globe valves regulate the flow of steam and water through the boiler, ensuring safe and stable operation.
Turbine and Gas Systems: In gas turbines, the API 602 globe valve controls the flow of fuel, air, or exhaust gases, enabling efficient combustion and power generation.
Water Treatment: In water treatment plants, globe valves control the flow of water during filtration, chemical treatment, and disinfection processes. They are essential for regulating water distribution systems and ensuring safe water quality standards.
Filtration and Purification: Globe valves regulate the flow of raw and treated water, ensuring proper filtration and treatment.
Chemical Dosing: These valves control the addition of chemicals such as chlorine or coagulants during the water treatment process.
