Introduction to Globe Valves
A globe valve is a type of valve that uses a spherical body shape, with an internal baffle that directs the flow of fluid in a particular direction. The valve controls the flow by moving a plug or disc, which either opens or closes a passage. This design allows for more precise regulation of flow compared to other types of valves, such as ball or gate valves. Globe valves are widely used in systems where throttling or flow control is necessary.
Forged Steel Material
The term forged steel refers to a material produced by shaping the steel through compressive forces, often when heated. Forging results in a higher strength-to-weight ratio compared to cast steel, which is crucial in high-pressure applications. The process eliminates internal flaws and defects in the material, creating a dense and homogeneous structure. As a result, forged steel globe valves are stronger, more durable, and capable of withstanding higher pressures and temperatures than their cast counterparts.
Pressure-Sealed Design
A pressure-sealed globe valve features a design where the valve body is sealed under pressure, offering superior performance in high-pressure and high-temperature conditions. The pressure-sealing mechanism ensures that the valve remains tightly closed during operation, preventing leakage and enhancing safety. The pressure-sealed design typically includes a bolted bonnet, a packing gland, and a carefully designed seat to provide tight sealing under a variety of operating conditions.
Advantages of Forged Steel Pressure-Sealed Globe Valves
Several advantages make forged steel pressure-sealed globe valves the preferred choice in many demanding industries:
a. Durability and Strength
Forged steel valves are far more resistant to cracking and wear than cast steel valves. This increased durability ensures that the valve will have a longer lifespan, especially in high-pressure and high-temperature applications.
b. Leakage Prevention
The pressure-sealed design of the globe valve significantly minimizes the chances of leakage. This is especially important in systems where even a minor leak can result in catastrophic consequences or increased operational costs.
c. Precision Flow Control
Globe valves are excellent for throttling and regulating flow. Unlike gate valves that are either fully open or fully closed, globe valves can provide a range of positions for partial opening, allowing for fine control over the fluid flow rate.
d. High Pressure and Temperature Tolerance
The combination of forged steel and a pressure-sealed design allows these valves to operate effectively in extreme conditions. Forged steel valves can typically handle pressures up to 10,000 psi (pounds per square inch) and temperatures ranging from -50°F to 800°F, depending on the material and design specifics.
e. Maintenance and Repair
Forged steel pressure-sealed globe valves are designed with ease of maintenance in mind. The pressure-sealed construction allows for easier repair, as the internal parts are less prone to damage during operation. Additionally, the body and bonnet are typically machined to close tolerances, which helps in reducing wear and tear on the sealing surfaces.
Design and Construction Features
The design of a forged steel pressure-sealed globe valve includes several critical components:

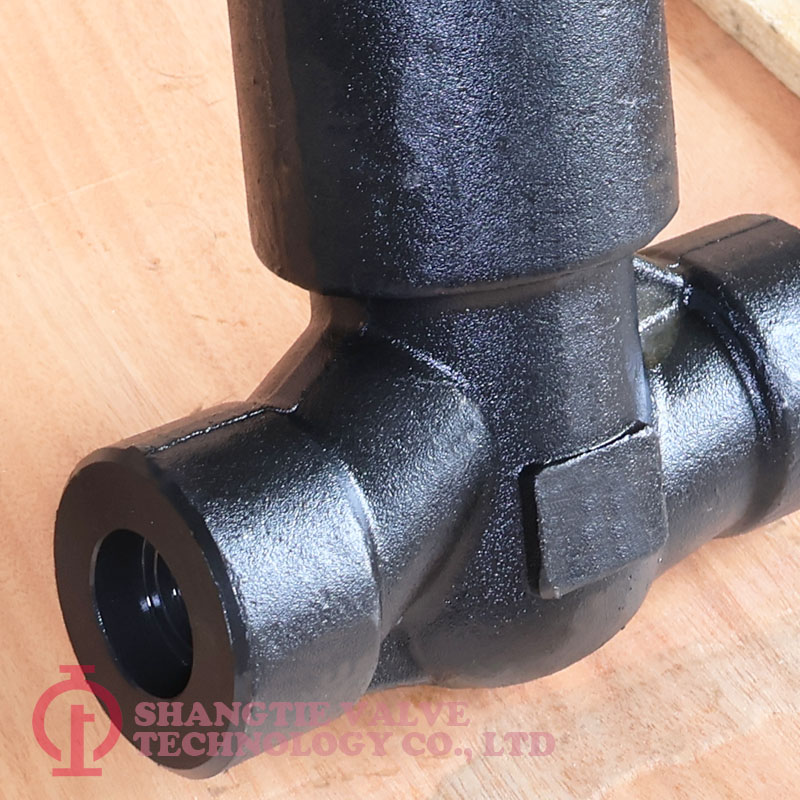

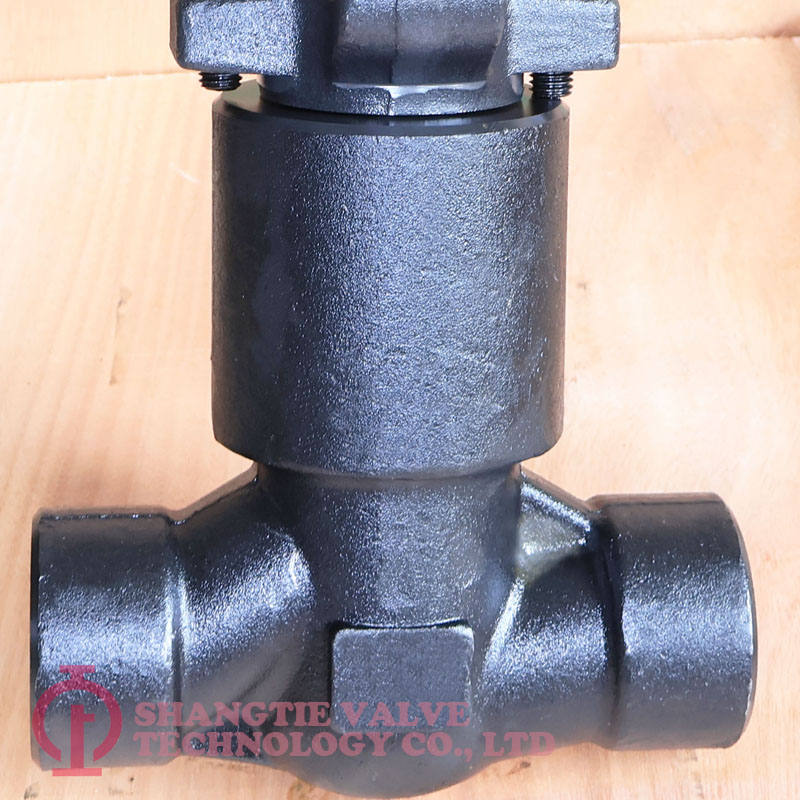

a. Body
The body of the valve is typically made of forged steel, which is capable of handling high internal pressures without distortion. The valve body also houses the internal components, including the plug and seat.

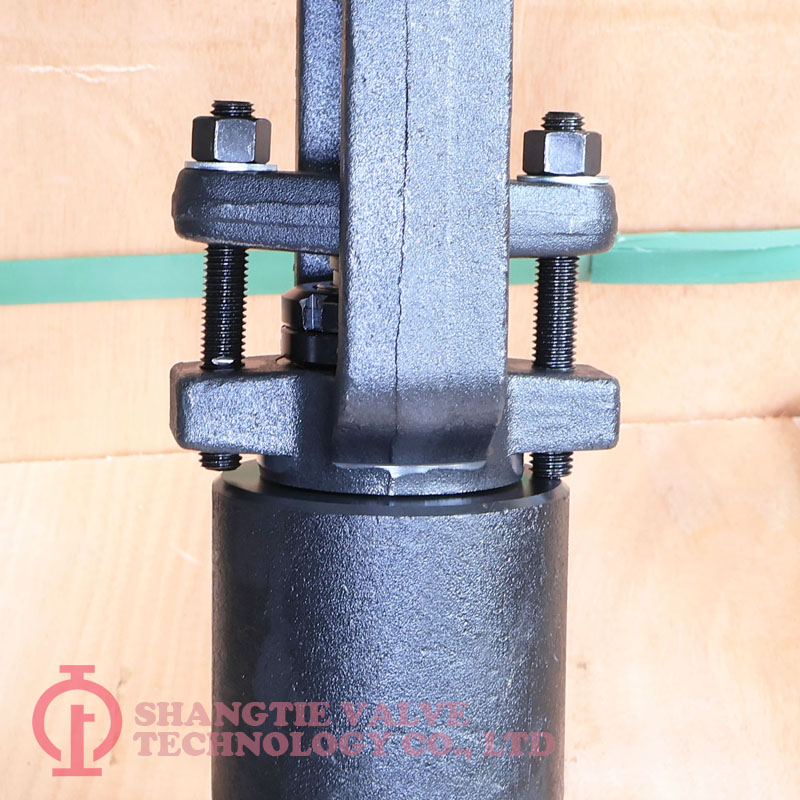

b. Bonnet
The bonnet is the top portion of the valve that houses the actuator and stem. In pressure-sealed globe valves, the bonnet is bolted to the valve body and designed to withstand high pressure. It is sealed to the body by a metal-to-metal joint, ensuring a leak-tight seal even under high-pressure conditions.
c. Plug and Seat
The plug is the movable element that controls the flow by sealing against the seat. The plug and seat surfaces are typically made of hard materials like stainless steel or alloys designed to resist corrosion and wear. The precise fit between the plug and seat allows for fine control of fluid flow.

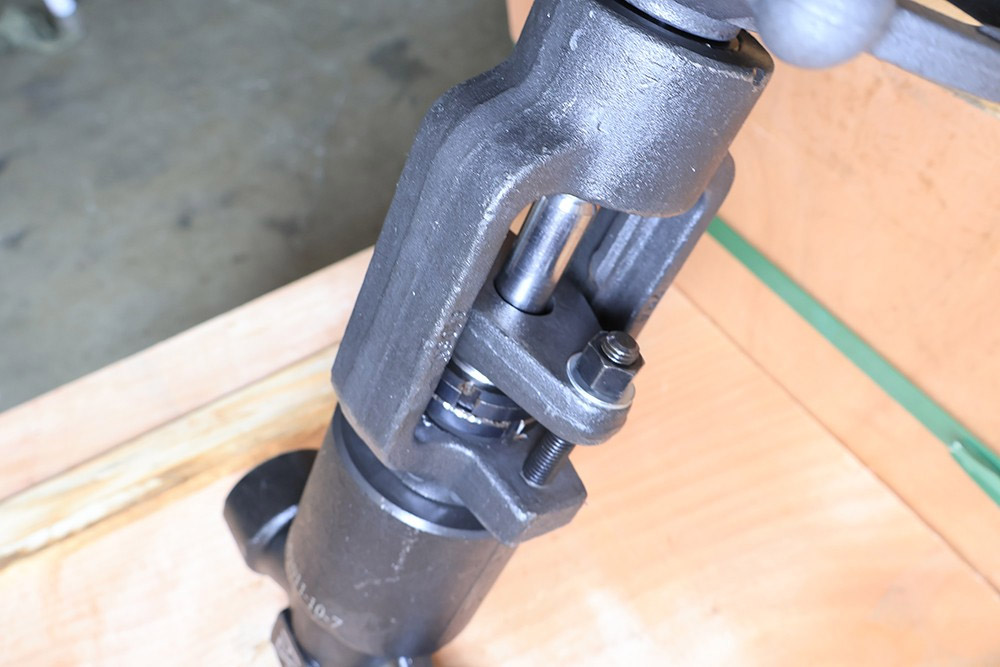

d. Packing
Packing is used to seal the valve stem and prevent leaks along the stem. It is made from materials that can handle high pressures and temperatures, such as graphite or PTFE (polytetrafluoroethylene).
e. Stem
The stem connects the actuator to the plug, allowing the plug to move and regulate the flow. The stem must be robust and able to transmit the required force without bending or warping.

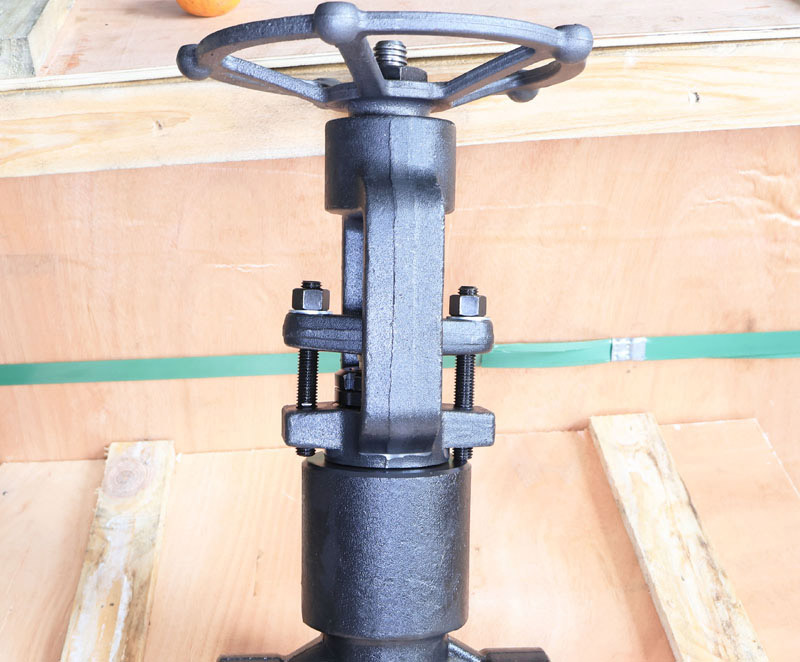

Operating Principle
When the actuator or handwheel is turned, it moves the stem, which in turn moves the plug. As the plug moves up or down in relation to the seat, the size of the opening through which the fluid flows changes, thus controlling the flow rate. A globe valve can be partially opened or closed, allowing precise throttling of the flow. When fully closed, the plug seals against the seat to completely block the flow.
Applications of forged steel pressure-sealed globe valve
The forged steel pressure-sealed globe valve is used in a wide variety of industries where high pressure, temperature, and reliability are essential. Some of the key applications include:
a. Oil and Gas Industry
In the oil and gas sector, where pipelines transport crude oil, natural gas, and other fluids under high pressure, the forged steel pressure-sealed globe valve is used for flow control and isolation. The valve's ability to withstand extreme pressure and temperature makes it ideal for upstream, midstream, and downstream applications.
b. Power Plants
In power generation, globe valves control the flow of steam, water, and other fluids critical to the operation of turbines and boilers. These valves must be able to handle high pressures and temperatures generated in the power plant environment. The forged steel construction ensures that the valves can withstand the intense mechanical stresses and thermal expansion encountered in power systems.
c. Petrochemical and Chemical Processing
Forged steel pressure-sealed globe valves are widely used in petrochemical and chemical processing plants where corrosive or high-temperature chemicals need to be handled. The robust construction ensures that the valve will remain reliable and leak-free even when exposed to challenging materials.
d. Water Treatment Plants
In water treatment facilities, globe valves are used to control the flow of water through filtration, chemical dosing, and other treatment processes. The forged steel pressure-sealed globe valve ensures that the system remains leak-proof and resistant to wear over time.
e. HVAC Systems
In heating, ventilation, and air conditioning (HVAC) systems, globe valves are used to regulate the flow of hot or chilled water. The ability to precisely control the flow makes globe valves an essential part of HVAC systems, ensuring efficient energy usage.
