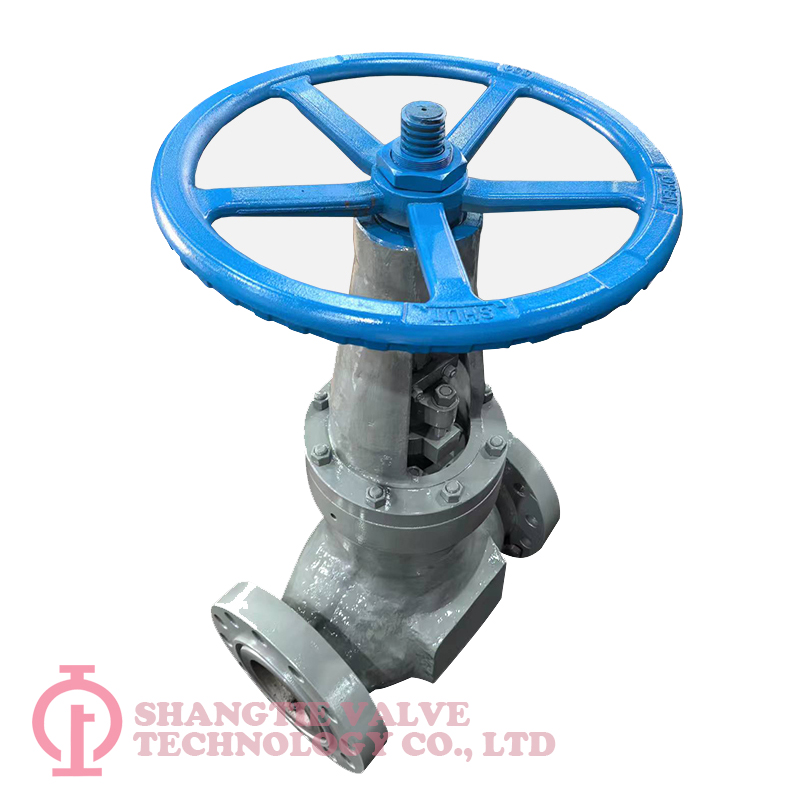

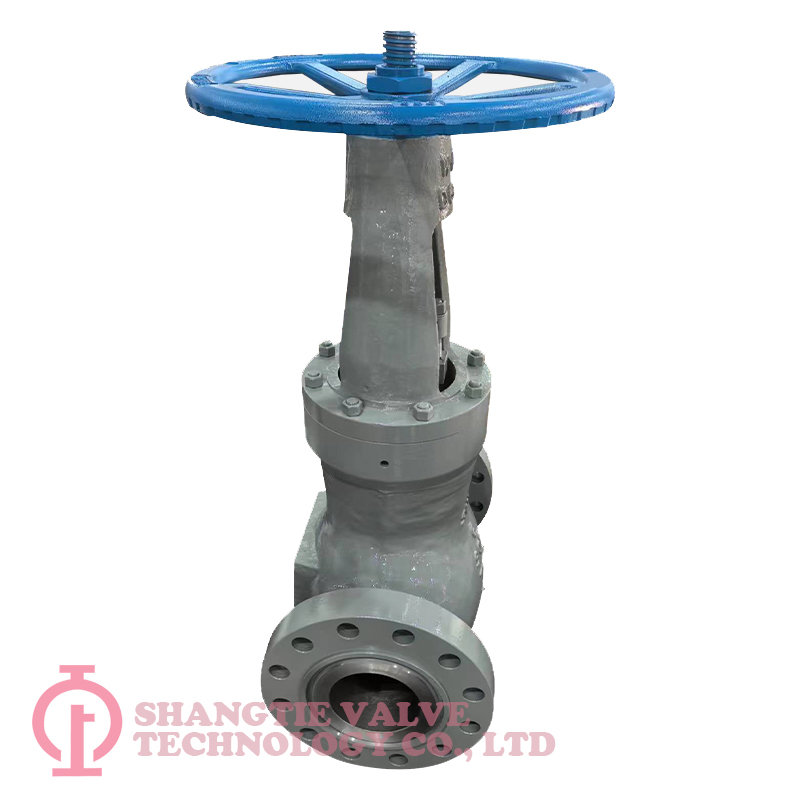

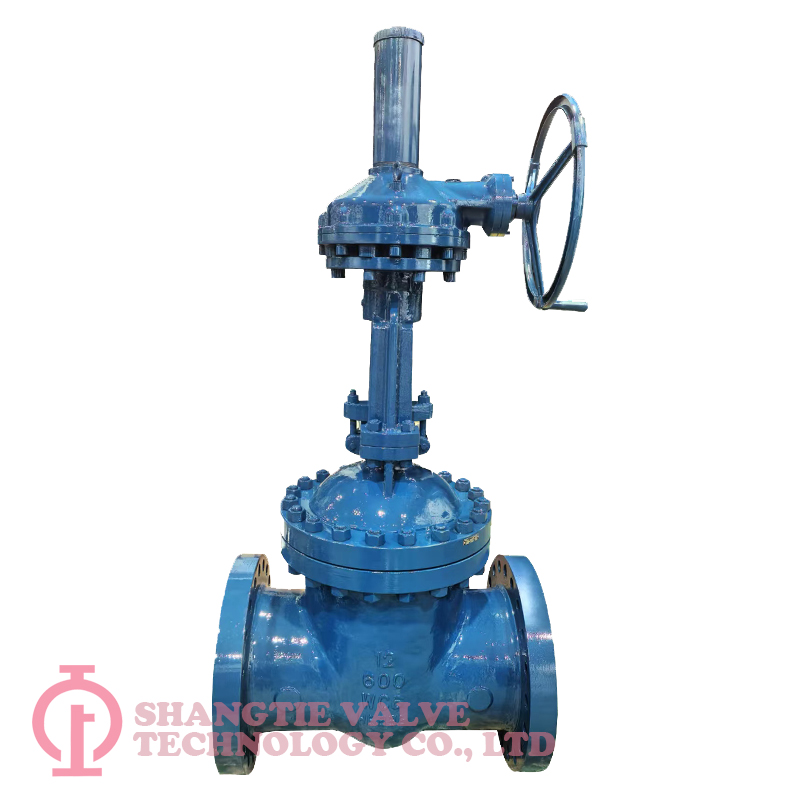

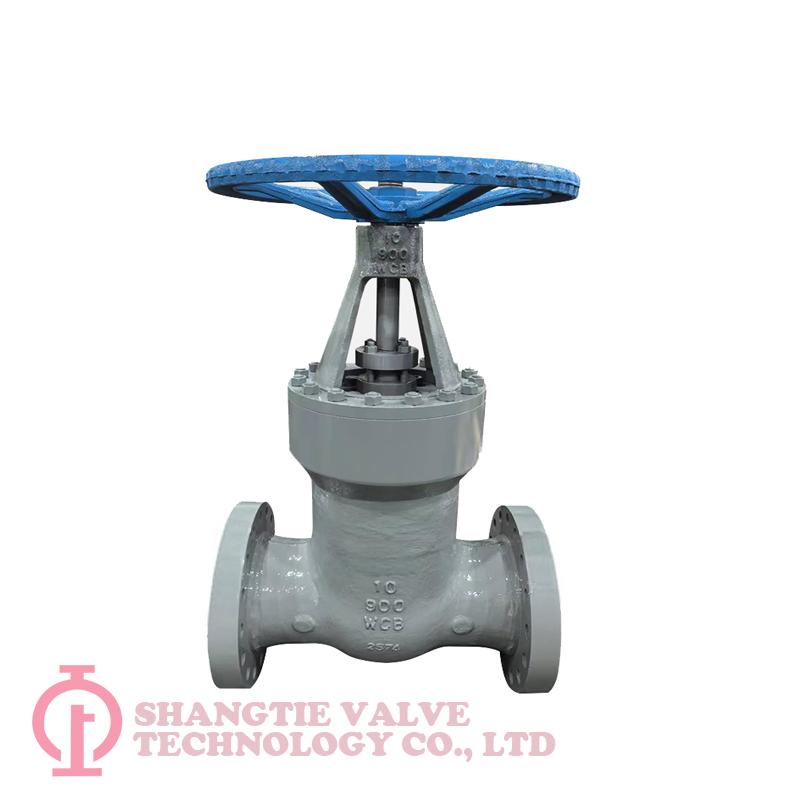

What is an API 600 Carbon Steel Pressure Seal Gate Valve?
An API 600 Carbon Steel Pressure Seal Gate Valve is a heavy-duty industrial valve engineered for high-pressure and high-temperature systems in critical applications. Compliant with the rigorous API Standard 600 for bolted bonnet gate valves, it features a unique pressure seal bonnet design that enhances sealing capability as internal pressure increases. Constructed from ASTM A216 WCB carbon steel, this valve delivers exceptional strength, corrosion resistance, and reliability in demanding environments like oil & gas, power generation, and petrochemical plants.
Key Features & Benefits:
1. Pressure Seal Bonnet:Self-Energizing Seal: System pressure forces the bonnet gasket tighter against the body, creating a leak-proof seal at extreme pressures (Class 1500 to 4500).
2. Superior Safety: Eliminates flange bolt stress relaxation issues common in standard bolted bonnets under high pressure.
3. Compact & Lightweight: Requires fewer bolts than conventional flanged bonnets at high ratings.
4. API 600 Compliance:Guarantees robust design, material quality, testing protocols (shell, backseat, closure), and manufacturing controls.Mandatory for valves in API-regulated oil & gas infrastructure.
5. Carbon Steel Construction (ASTM A216 WCB):High Strength: Withstands extreme pressures and temperatures (up to ~800°F / 427°C).
6. Cost-Effective Durability: Excellent mechanical properties and corrosion resistance for hydrocarbon services, steam, and water.
7. Weldable: Facilitates integration into piping systems.
8. Rising Stem Design:Clear visual indication of valve position (open/closed).OS&Y (Outside Screw & Yoke): Keeps threads isolated from process media, reducing corrosion and wear.
9. Robust Seating:Metal-to-Metal Seats: Standard for API 600, ensuring tight shut-off and resilience against erosion, galling, and high temperatures. Optional resilient seats available for lower pressure/temp applications needing bubble-tight closure.
10. Flexible Ends:Available in flanged (ASME B16.34), butt weld (ASME B16.25), or socket weld ends for seamless system integration.
Technical Specifications (Typical):
Feature | Specification |
Standard | API 600 (Latest Edition) |
Design Std | ASME B16.34 (Pressure-Temperature) |
Face-to-Face | ASME B16.10 |
Pressure Class | 1500, 2500, 4500 (ASME) |
Body Material | ASTM A216 WCB WCC LCC LCB Carbon Steel |
Trim Material | Typically 13Cr / Stellite (API Trim #s) |
Bonnet Type | Pressure Seal |
Stem Type | Rising Stem, OS&Y |
Seat Type | Metal Seated (Standard), Resilient (Optional) |
End Connections | Flanged (RF/RTJ), Butt Weld, Socket Weld |
Temp Range | -20°F to 800°F (-29°C to 427°C) approx |
Operation | Handwheel, Gear, Actuator (Electric/Pneumatic) |
Testing | API 598 (Shell, Backseat, Closure) |
Why Choose API 600 Carbon Steel Pressure Seal Gate Valves:
1. Reliability: Engineered to perform in extreme conditions, reducing downtime and operational risks.
2. Compliance: Meets global industry standards, ensuring regulatory approval and interoperability.
3. Cost-Effectiveness: Carbon steel offers a balance of performance and affordability for non-corrosive services.
4. Safety: Features like anti-blowout stems and pressure seal bonnets prioritize personnel and system safety.
5. Whether you’re designing a new pipeline, upgrading existing infrastructure, or maintaining critical systems, the API 600 Carbon Steel Pressure Seal Gate Valve delivers the durability and performance required for demanding industrial applications. Contact a certified valve supplier to discuss custom configurations, material options, and testing protocols tailored to your project needs.
Primary Applications:
1. Oil & Gas Production: Wellheads, manifolds, pipelines (crude, gas), refining.
2. Power Generation: Boiler feedwater, steam lines, turbine bypass.
3. Petrochemical & Chemical: High-pressure process lines, reactors, utilities.
4. Hydrocarbon Processing: Refineries, gas plants.
5. High-Pressure Water Systems.
Looking for a Reliable API 600 Pressure Seal Gate Valve Supplier?
ShangTie Valve manufactures and supplies premium API 600 Carbon Steel Pressure Seal Gate Valves tailored to your specific pressure class, end connection, trim requirements, and operating conditions. All valves undergo rigorous API 598 testing.
Installation & Maintenance Tips
API 600 Carbon Steel Pressure Seal Gate Valve Installation & Maintenance Tips:
Installation: Ensure proper alignment with piping to avoid stress on the valve body. Use gaskets compatible with system media and pressure/temperature ratings.
Lubrication: Periodically lubricate stem threads and packing to reduce friction and prevent seizing, especially in high-temperature applications.
Inspection: Regularly check for leaks, corrosion, or wear on the wedge and seats. Replace packing or gaskets at first signs of degradation to maintain performance.
Storage: Store valves in a dry, covered area with ends capped to prevent debris ingress. For long-term storage, apply protective coatings to carbon steel surfaces.
