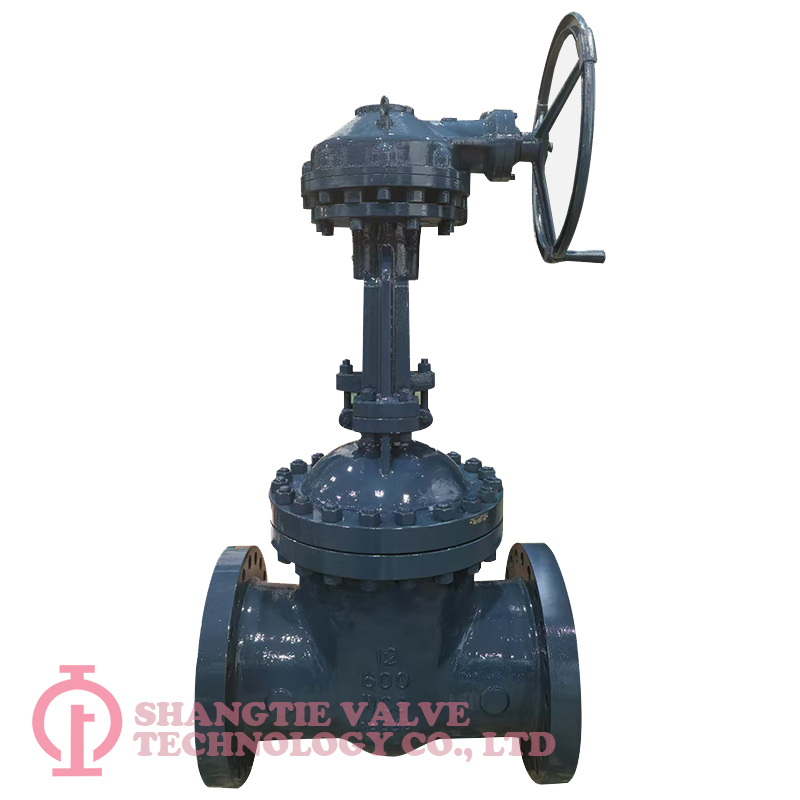

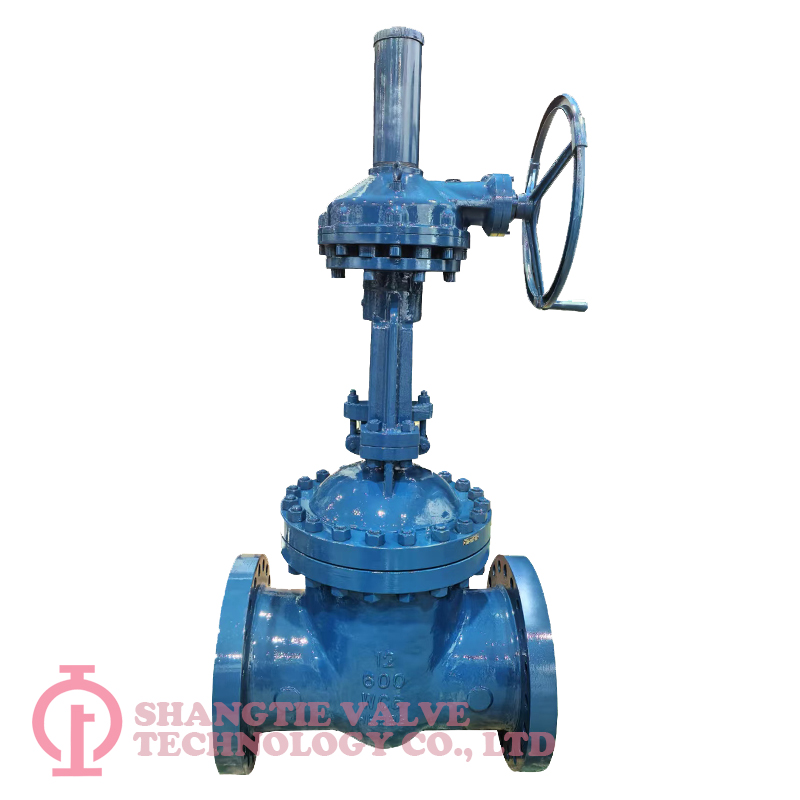

Bevel Gear Alloy Steel Flange API 600 Gate Valve: Reliable Flow Control for High-Stakes Industrial Operations
Introduction & Overview
Our Bevel Gear Operated Alloy Steel Gate Valve is engineered for reliability and performance in the most demanding high-temperature and high-pressure services. Manufactured in strict compliance with API 600 standard, this valve features a robust flanged end connection and is crafted from premium Alloy Steel (ASTM A217 WC6/WC9). The inclusion of a bevel gearbox provides exceptional mechanical advantage, ensuring smooth and efficient operation even for large-diameter valves under extreme conditions. This valve is the preferred solution for critical applications in power generation, oil and gas refining, and petrochemical plants.
Key Features & Benefits
API 600 Compliant Design: Guarantees robust construction, material integrity, and performance reliability as per the international standard for steel gate valves.

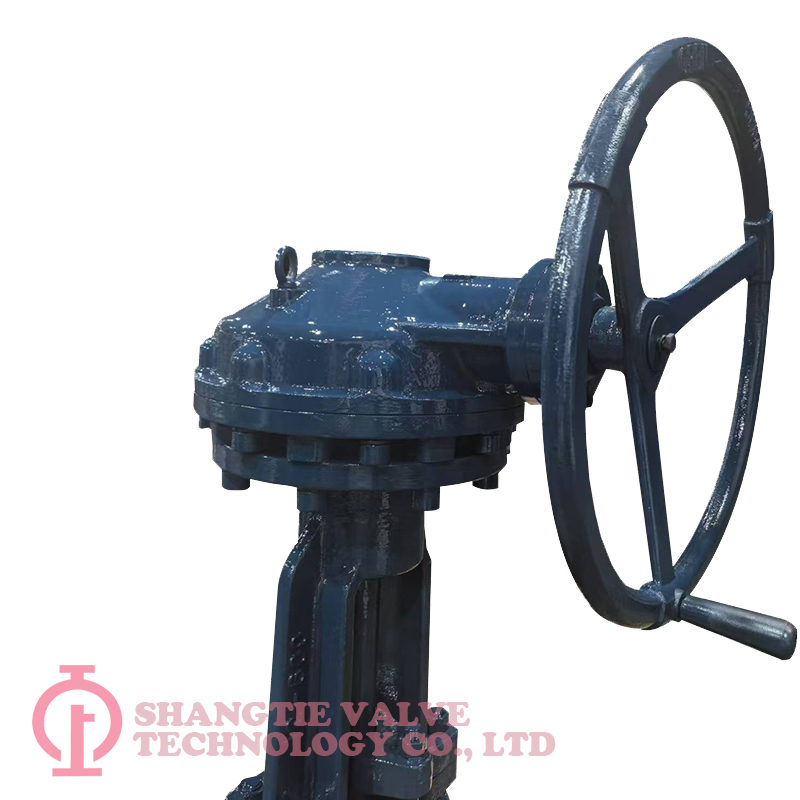

Bevel Gear Operation: The external bevel gear system provides a high torque output, making the valve easy to open and close against high differential pressures, reducing operator effort and time.
High-Temperature Alloy Steel Body: The valve body is made from ASTM A217 Grade WC6 or WC9 chromium-molybdenum steel, offering superior strength, corrosion resistance, and exceptional resistance to creep and oxidation at elevated temperatures (up to ~593°C / 1100°F for WC6).
Flanged End Connection: Standard ASME B16.5 flanged ends (RF or RTJ) ensure a secure, leak-proof connection to piping systems, simplifying installation and maintenance.
Bolted Bonnet Construction: Provides a tight seal and allows for easier maintenance and inspection in the field compared to pressure-seal bonnets for this pressure class.
Flexible Wedge Design: The flexible wedge minimizes the risk of binding and ensures tight shut-off across a wide range of operating temperatures.
Stellite Hardfacing: Critical seating surfaces are often hard-faced with Stellite (or equivalent) to provide excellent erosion and galling resistance, extending service life.
Technical Specifications
Specification Category | Details & Standards |
Product Type | Bevel Gear Operated Alloy Steel Gate Valve |
Design & Manufacturing Standard | API 600 (Heavy-Duty Gate Valves for Petroleum, Petrochemical, and Natural Gas Industries)
ASME B16.34 (Valves—Flanged, Threaded, and Welding End) |
Pressure Class | Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500 (Customizable per project needs) |
Nominal Size (NPS) | 2” – 24” (Standard range; larger sizes available via customization) |
Body & Bonnet Material | Alloy Steel (Primary Grades):
- WC6 (Chromium-Molybdenum Steel, ASTM A217)
- WC9 (High-Chromium-Molybdenum Steel, ASTM A217)
- C5 (Low-Chromium-Molybdenum Steel, ASTM A217)
- C12 (Chromium-Molybdenum-Vanadium Steel, ASTM A217) |
Trim Material (Stem/Gate/Seat) | - Stem: 17-4 PH Stainless Steel (ASTM A479), Alloy Steel (ASTM A182 F6a)
- Gate: Alloy Steel (ASTM A217 WC6/WC9) with Stellite 6 overlay (for wear resistance)
- Seat: Metal-to-Metal (Alloy Steel with Stellite 6 overlay) or Soft Seat (PTFE/Graphite for low-temperature service) |
Actuation Type | Bevel Gear Operation (Manual)
Optional: Bevel Gear + Pneumatic/Hydraulic/Electric Actuator (for automated control) |
Connection Type | Flanged Ends (Compliant with ASME B16.5 – For NPS 1/2” to 24”; ASME B16.47 – For NPS 26” to 60”)
Optional: Welded Ends (ASTM A694 F65/F70) |
Temperature Range | -40°F to 1000°F (-40°C to 538°C) for WC6/WC9 Alloys
Extended range (-150°F to 1200°F / -101°C to 649°C) available with specialized alloy grades |
Sealing Performance | - Metal-to-Metal Seat: ANSI/FCI 70-2 Class V (Leakage ≤ 0.01% of rated flow)
- Soft Seat: ANSI/FCI 70-2 Class VI (Near-zero leakage) |
Fire-Safe Certification | API 607 (Fire Test for Soft-Seated Quarter-Turn Valves) – Optional for soft-seated models
API 6FA (Fire Test for Valves) – Compliant for metal-seated models |
Corrosion Resistance | - NACE MR0175/ISO 15156 (For sour service: H₂S-containing environments)
- Optional: Fusion-Bonded Epoxy (FBE) Coating or Nickel Plating for enhanced corrosion protection |
Valve Design Features | - Full Port or Reduced Port (per flow requirements)
- Anti-Blowout Stem (prevents stem ejection under high pressure)
- Integral Bevel Gear Box (self-lubricating, sealed for dust/water resistance)
- Handwheel with Position Indicator (open/closed status) |
Testing Standards | - Factory Testing: API 598 (Valve Inspection and Testing)
- Hydrostatic Test: 1.5× Rated Pressure (Body and Bonnet)
- Pneumatic Test: 1.1× Rated Pressure (Seat Leakage)
- Optional: Radiographic Testing (RT) of Welds, Ultrasonic Testing (UT) of Body/Bonnet |
Certifications & Compliance | CE Mark (per PED 2014/68/EU)
ISO 9001 (Quality Management System)
ATEX/IECEx (for explosive atmospheres – Optional) |
Industries & Applications
This valve is specifically designed for severe service applications, including:
Power Generation: Main steam lines, feedwater systems, and turbine bypass in fossil fuel and nuclear plants.
Oil & Gas: Refinery process lines, hydrocarbon transmission, wellhead isolation, and offshore platforms.
Petrochemical: High-temperature and high-pressure process lines in ethylene, fertilizer, and chemical plants.
Industrial Applications: Any process requiring reliable isolation of superheated steam, hot oil, or other aggressive media.
Why Choose the Bevel Gear Alloy Steel Flange API 600 Gate Valve?
For industries where reliability, safety, and compliance are non-negotiable, this valve stands out for its:
API 600 certification: Ensures adherence to global standards for heavy-duty gate valves.
Alloy steel durability: Resists high temperatures, corrosion, and mechanical stress.
Bevel gear efficiency: Simplifies operation and reduces maintenance.
Flange compatibility: Easy integration into existing pipeline systems.
Whether you’re upgrading aging infrastructure, building a new facility, or seeking a replacement for a critical valve, the Bevel Gear Alloy Steel Flange API 600 Gate Valve delivers the performance, safety, and longevity your operations demand. Partner with certified manufacturers to ensure genuine, high-quality valves that meet your specific application requirements.
