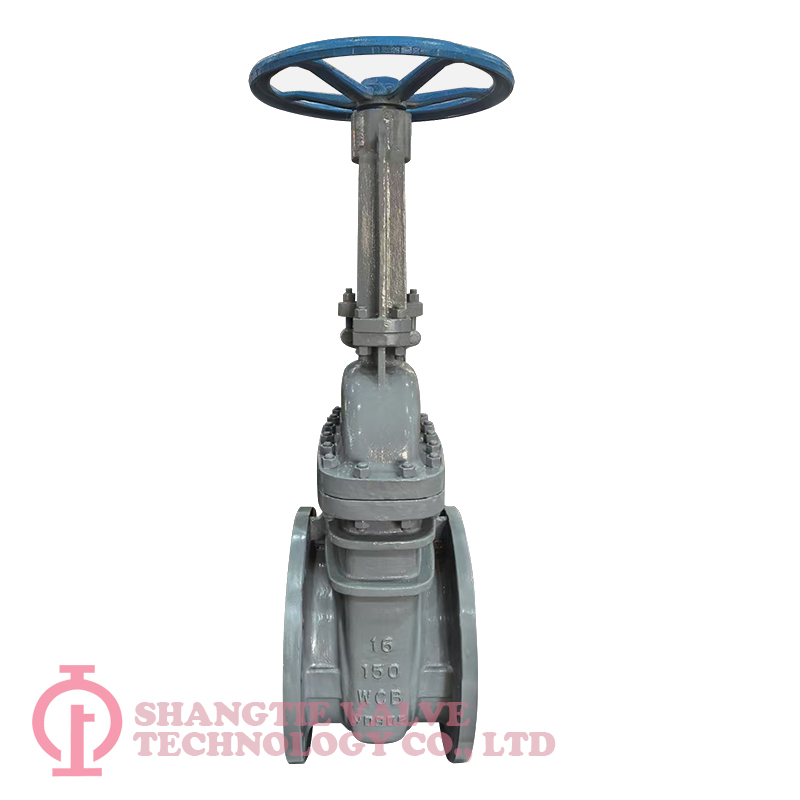

Industry 16inch Cast Steel Flange Wedge Gate Valve: The Ultimate Industrial Fluid Control Solution:
When it comes to reliable, high-performance fluid control in demanding industrial environments, the Industry 16inch Cast Steel Flange Wedge Gate Valve stands as a benchmark for durability, precision, and long-term value. Engineered to meet the rigorous demands of oil and gas, chemical processing, water treatment, and marine operations, this gate valve combines robust cast steel construction with innovative wedge design to deliver leak-proof sealing, easy operation, and unmatched resistance to harsh conditions.
Key Features of the 16inch Cast Steel Flange Wedge Gate Valve:
Premium Cast Steel Construction: Made from high-grade cast steel, this valve offers exceptional strength, durability, and resistance to corrosion, making it ideal for harsh industrial environments.
16inch Size: With a large 16-inch diameter, the valve is designed to handle significant flow rates, ensuring efficient fluid control in large pipeline systems.

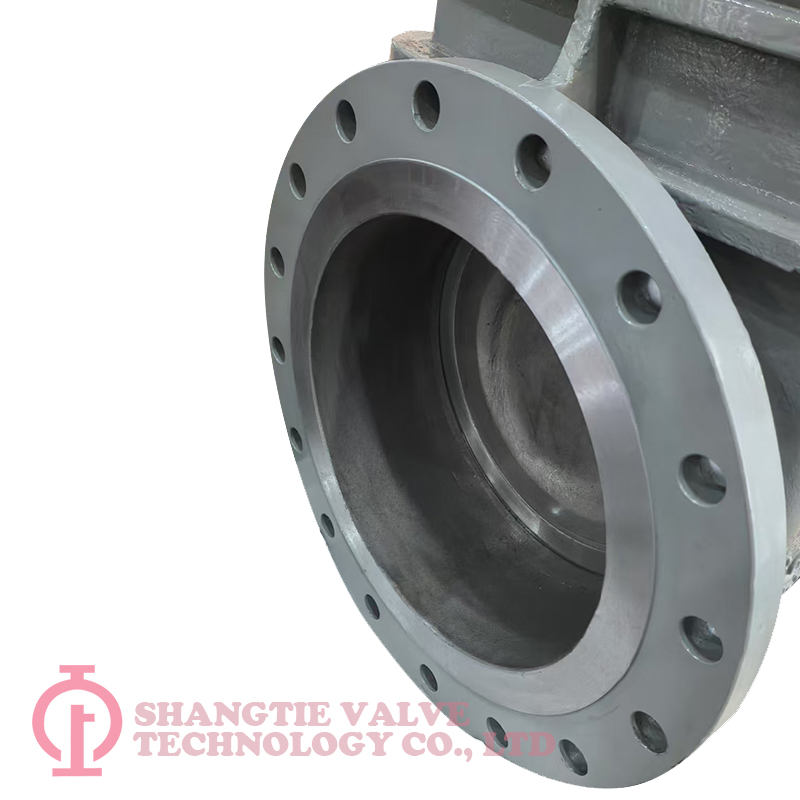

Flange Connections: Featuring flanged ends, the valve is compatible with most pipeline systems, ensuring easy and secure installation and integration into existing setups. Flanged connections are particularly ideal for high-pressure applications.
Wedge Gate Design: The wedge gate valve mechanism provides a tight seal, ensuring minimal leakage and reliable shut-off. The wedge design also allows for precise control over the flow of media, making it suitable for both on-off and throttling service.
150LB Pressure Rating: This valve is rated for 150LB pressure classes, providing excellent performance in moderate to high-pressure applications, ensuring safe and efficient operation under heavy-duty conditions.
Technical Specifications: Cast Steel Flange Wedge Gate Valve
Specification Category | Details |
Size Range | 1/2" - 48" (DN15 - DN1200); Custom sizes available upon request |
Pressure Rating | ANSI: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
PN: PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN400 |
Body & Bonnet Material | Cast Steel: WCB (A216), WCC (A216), LCB (A352), LCC (A352), WC6 (A217), WC9 (A217)
Stainless Steel: CF8 (A351), CF8M (A351), CF3 (A351), CF3M (A351) |
Disc Material | WCB, A105, 304 Stainless Steel, 316 Stainless Steel, Alloy 20, Hastelloy |
Stem Material | A182 F6a (13Cr), A182 F304, A182 F316, A182 F51 (Duplex) |
Seat Material | Metal-to-Metal (STL, 304, 316) or Soft Seal (PTFE, RPTFE, Viton) |
Design Standard | API 600, API 6D, ANSI B16.34, ISO 10434, BS 1414, DIN 3352 |
Testing Standard | API 598, ISO 5208 (Hydrostatic/Pneumatic Test, Leakage Test, NDT) |
Temperature Range | -29°C to 425°C (WCB); -196°C to 550°C (Stainless Steel); Up to 650°C (Alloy Steel) |
Connection Type | Flanged (ANSI B16.5, DIN 2501, JIS B2220), Welded (BW/SW), Threaded (NPT/BSPT) |

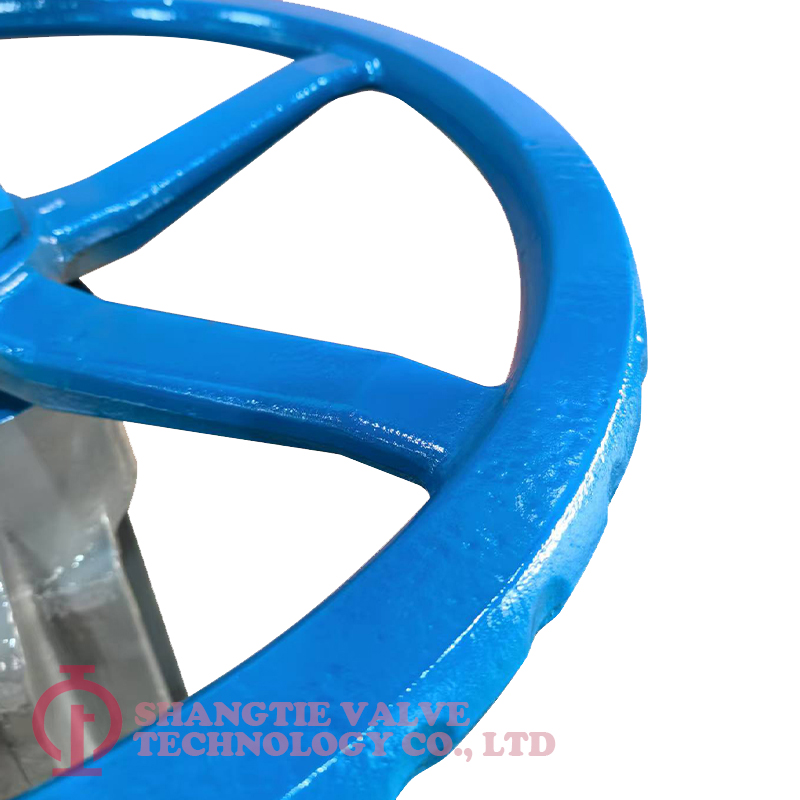

Operation Mode | Handwheel, Gear Operator, Electric Actuator (AC/DC), Pneumatic Actuator |

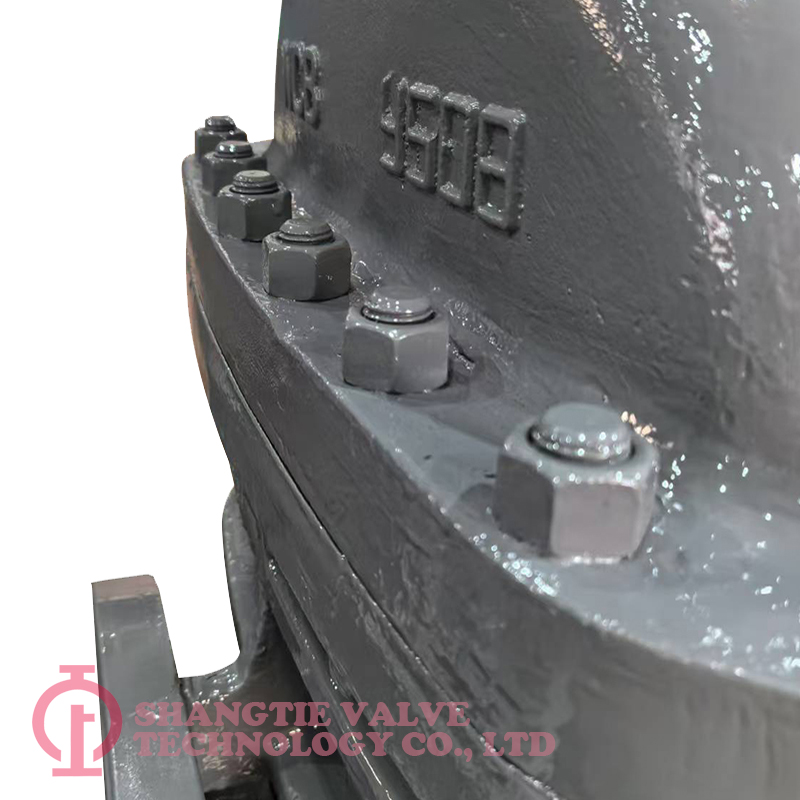

Bonnet Type | Bolted Bonnet, Pressure Seal Bonnet, Union Bonnet |
Wedge Type | Solid Wedge, Split Wedge, Flexible Wedge |
Leakage Class | API 598 Class VI (Soft Seal); API 600 Metal-to-Metal Seal |
Certifications | ISO 9001, API, CE, ABS, DNV, Lloyd's Register |
Industrial Applications:
This versatile industrial gate valve is suitable for a broad spectrum of services, including:
Steam Services: Main steam lines, boiler feed systems, and turbine bypass.
Oil & Gas: Crude oil pipelines, refinery process lines, and gas distribution.
Power Generation: Cooling water systems, feedwater control, and auxiliary lines.
Chemical Processing: Handling various process chemicals where carbon steel is applicable.
Water & Wastewater: Main supply lines, distribution networks, and pump discharge.
Why Partner With Us?
Choosing our Industry 16inch Cast Steel Flange Wedge Gate valve means investing in a product backed by:
Over 20 years of experience in industrial valve manufacturing.
Rigorous quality control (NDT testing, pressure testing, material certification).
Competitive pricing and on-time delivery for bulk or custom orders.
Global after-sales service, including on-site maintenance and training.
Ready to Upgrade Your Fluid Control System?
Whether you need a single 16inch Cast Steel Flange Wedge Gate Valve or a complete pipeline solution, we’re here to help. Contact our sales team today for a free quote, technical consultation, or sample request. Boost operational efficiency and reduce downtime with the valve trusted by industrial leaders worldwide.
