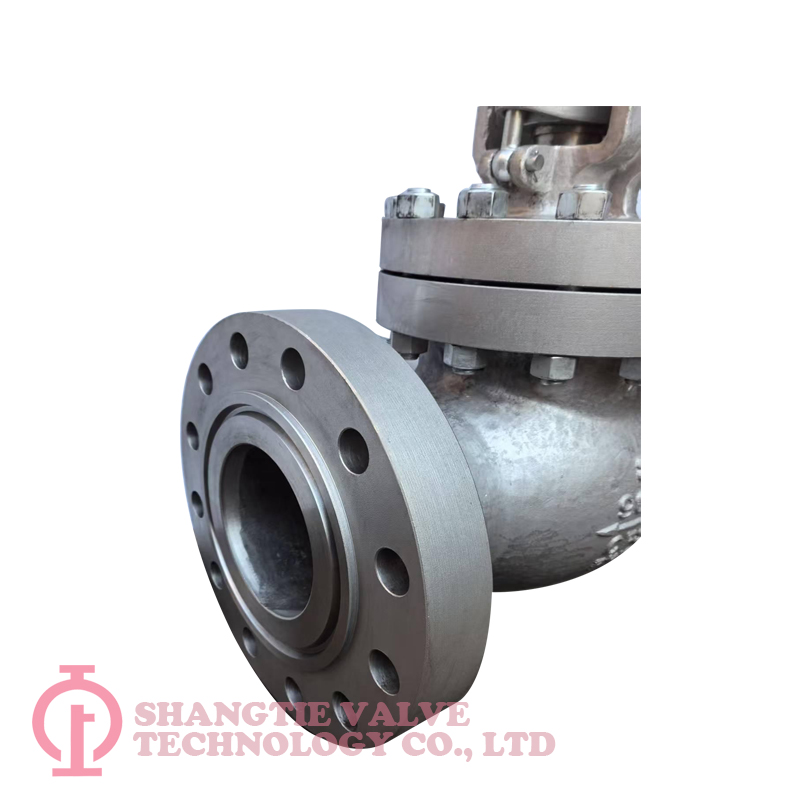

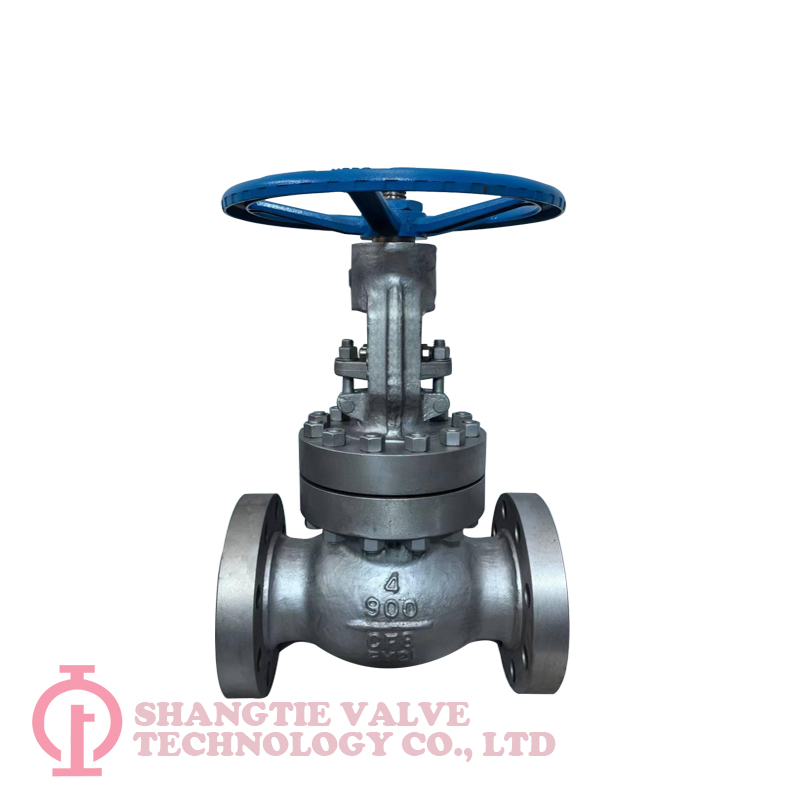

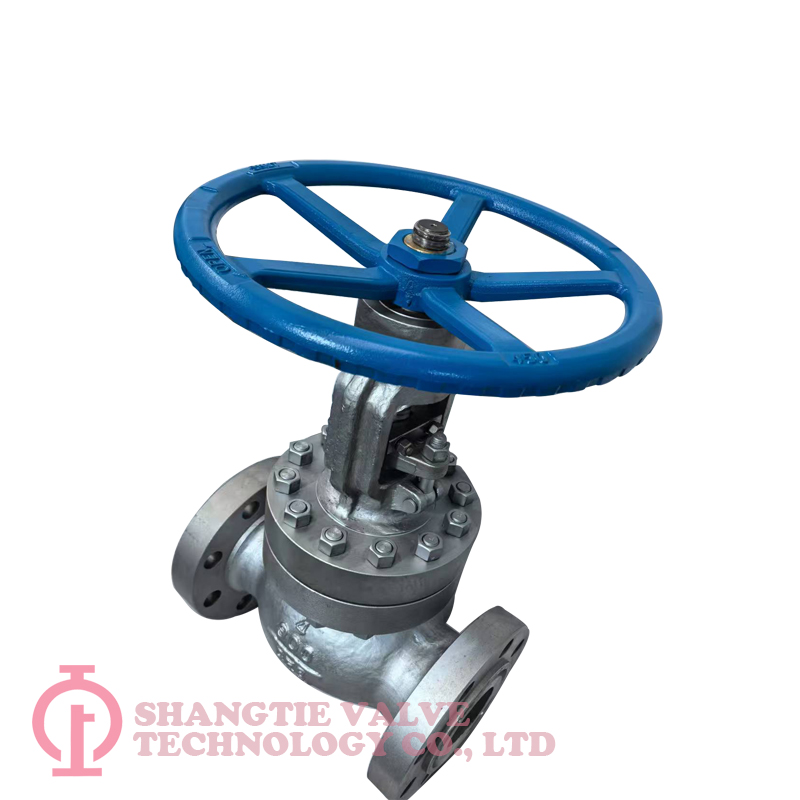

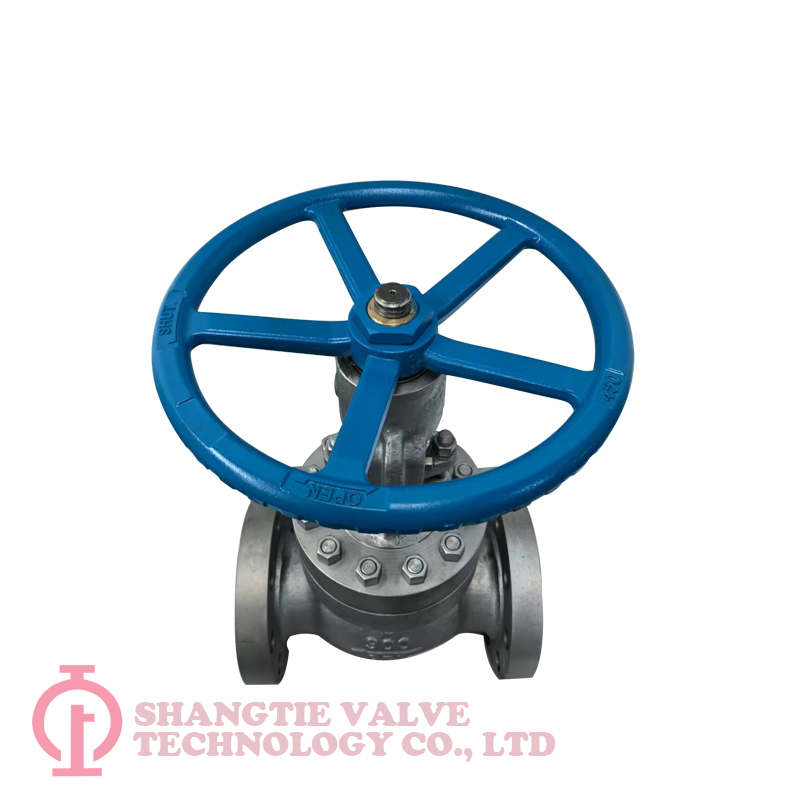

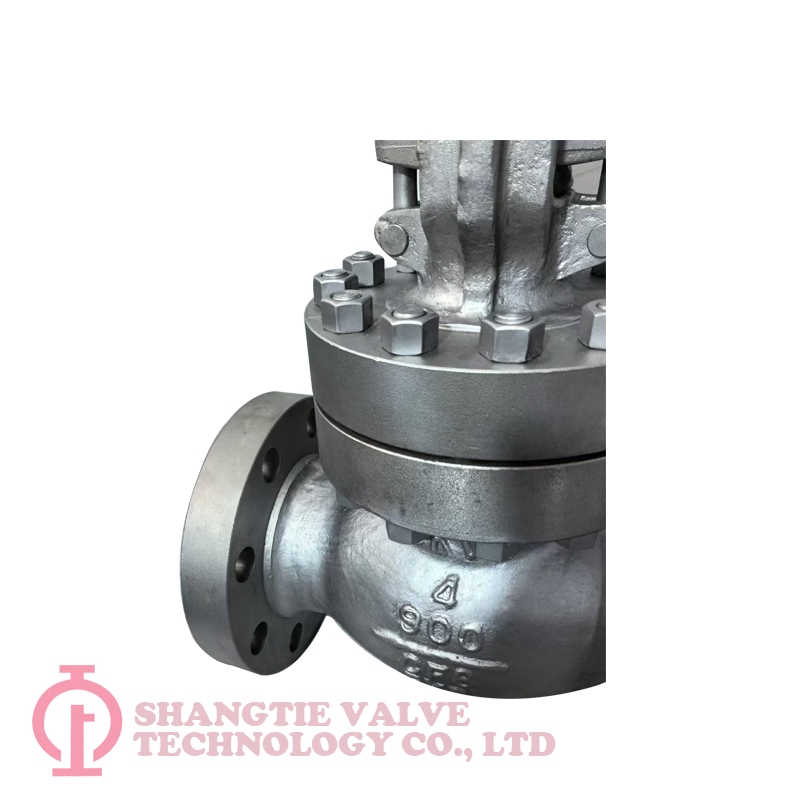

BS1873 Stainless Steel Flange Globe Valve: Precision Flow Control, Engineered for Durability.
Meet our BS1873-compliant Stainless Steel Flange Globe Valve – the robust solution for demanding flow regulation. Crafted from high-grade stainless steel (SS304/SS316), it delivers exceptional corrosion resistance and long service life in harsh environments like chemical processing, oil & gas, power generation, and marine applications. Featuring flanged ends for secure, leak-proof connections and a globe valve design for precise throttling control, this valve ensures reliable performance under high pressure and temperature. Its bolted bonnet facilitates easy maintenance, making it the ideal choice for critical industrial systems requiring safety, efficiency, and adherence to British Standard BS1873 specifications.
Design Features & Construction
Standard: ASTM A351 CF8 (304) / CF8M (316)
Low-Carbon Variant: 316L for enhanced intergranular corrosion resistance
Special Alloys: Duplex 2205/2507, Super Austenitic (904L) for extreme environments
ANSI B16.5 Flanges: Class 150~2500 (RF/FF/RTJ face)
DIN/EN 1092-1 Flanges: PN10~PN420
JIS B2220 Flanges: 5K~20K
Metal-to-Metal (Stellite Hardfaced) for high-pressure/temperature
Soft Seats (PTFE/Graphite) for bubble-tight shutoff
Fire-Safe Design (API 607/ISO 10497 Certified)
Handwheel Operation (standard)
Gearbox Operation (for large-size/high-torque valves)
Electric/Pneumatic Actuators (automated control)
OS&Y (Outside Screw & Yoke) for visual stem position indication
Balanced Trim to reduce operating torque in high-ΔP applications
Cryogenic Treatment for LNG/industrial gas services (-196°C)
Technical Specifications
| Parameter | Range |
|---|
| Size (DN) | 15~600 mm (½"~24") |
| Pressure Rating | Class 150~2500 (ANSI) / PN10~PN420 (DIN) |
| Temperature Range | -196°C ~ +600°C (material-dependent) |
| Media Compatibility | Water, Steam, Oil, Acids/Alkalis, Natural Gas, etc. |
| Leakage Class | API 598 (Class IV/V) / ISO 5208 (Grade A) |
| Design Standards | API 602 / ASME B16.34 / BS 1873 / EN 13709 |
✔ Rigorous Quality Control:
✔ Customization Services:
✔ Global Certifications:
