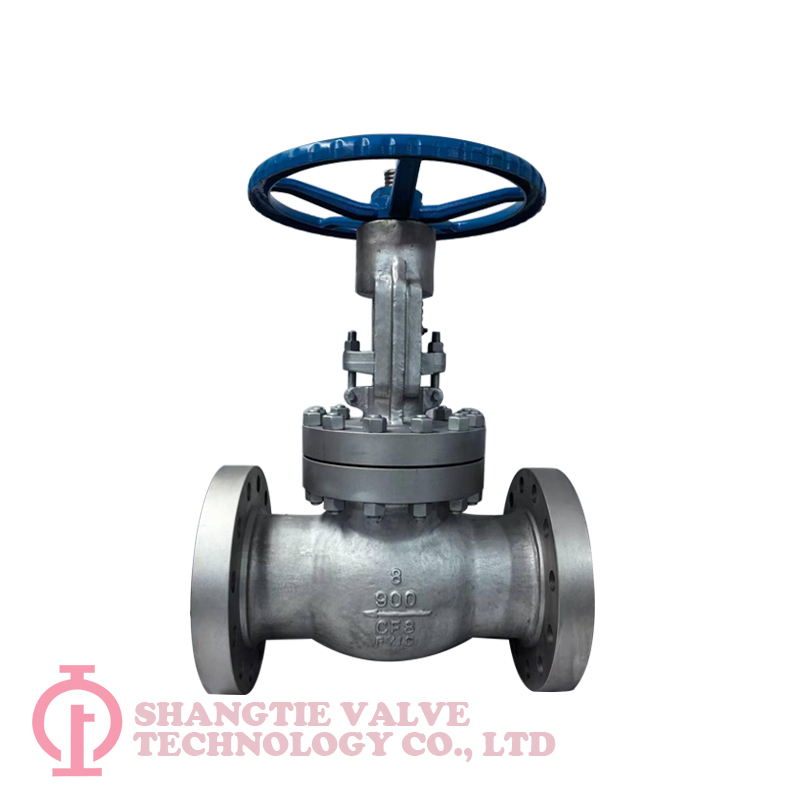

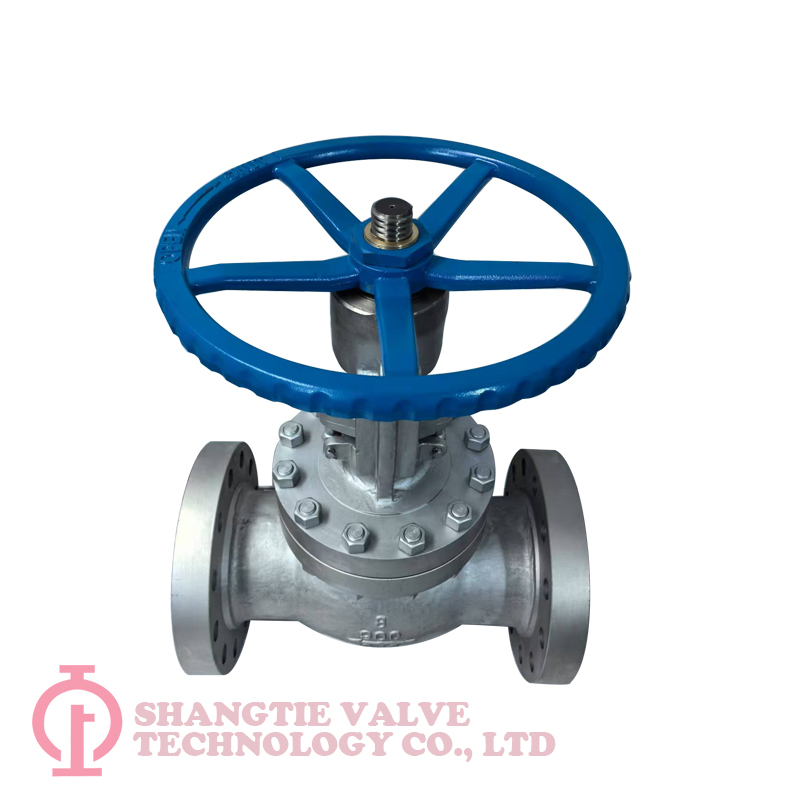

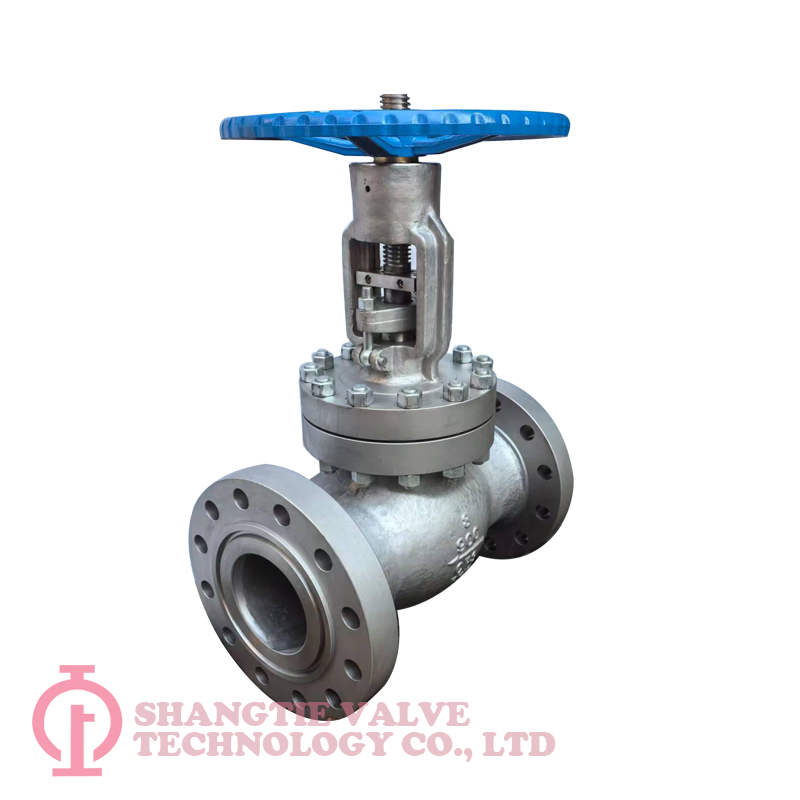

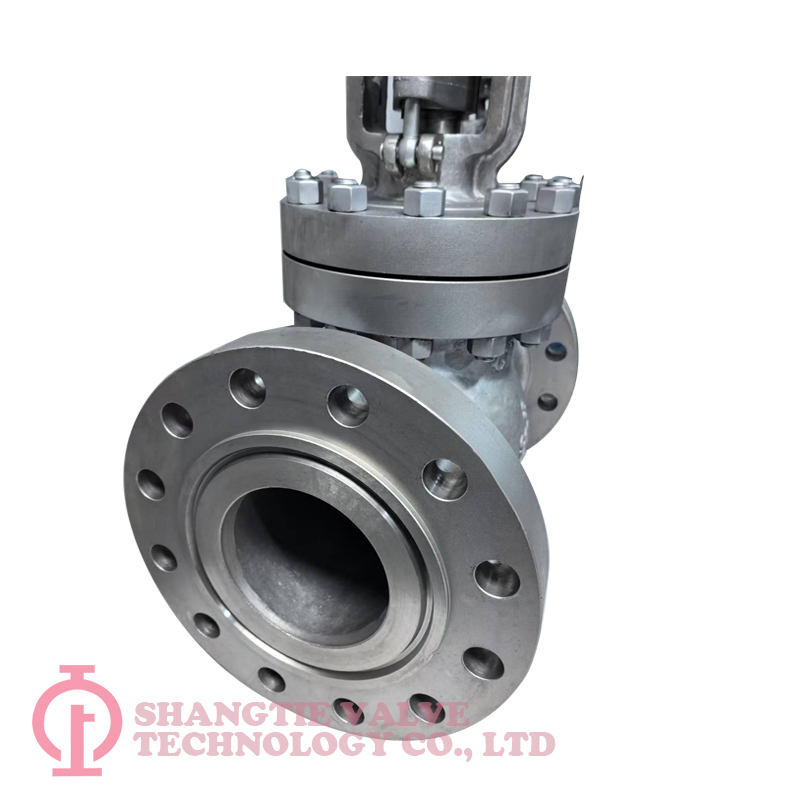

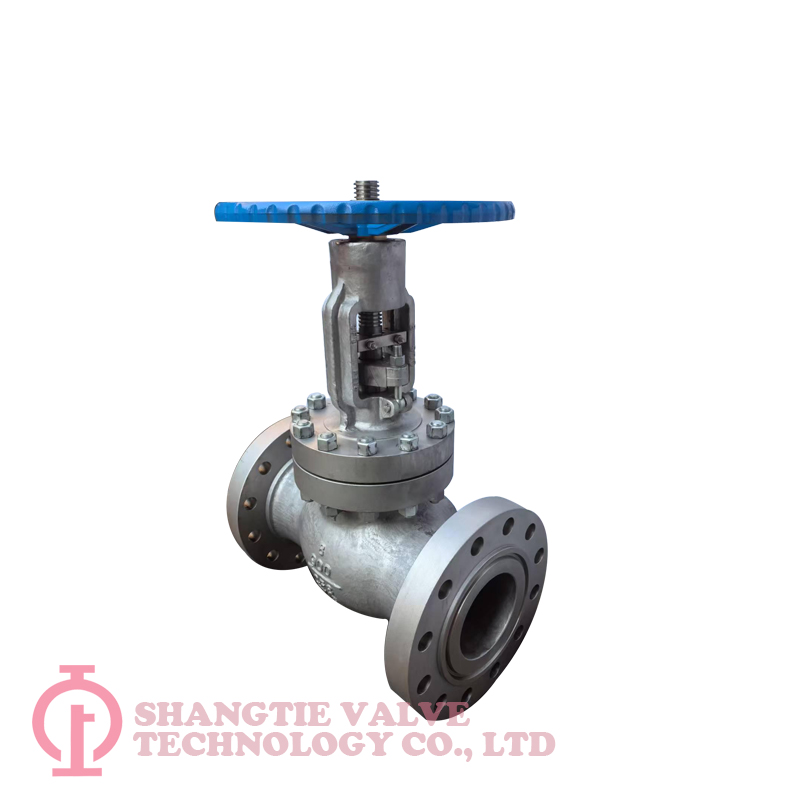

BS1873 Class900 High Pressure Stainless Steel Globe Valve

Engineered for Extreme Conditions

Our high pressure stainless steel globe valves are precision-crafted to deliver reliable flow control in the most challenging industrial environments. Manufactured from grade 316/316L stainless steel with Stellite-hardened trim, these heavy-duty valves withstand pressures up to Class 2500 (ASME B16.34) and temperatures ranging from -196°C to 593°C.Uncompromising Safety & Reliability

✔ Pressure-tested to 1.5x rated working pressure

✔ Fire-safe design compliant with API 607/ISO 10497

✔ Zero-emission bellows stem seal option available

✔ Full material traceability with PMI verification

Technical Superiority

Body Material: Forged ASTM A182 F316/F316L A216 WCB LCC LCB WCC A217 WC6 WC9 C5

Pressure Classes: 900, 1500, 2500 (Custom 4500 available)

Connection Types: RF, RTJ, BW per ASME B16.5

Leakage Class: ASME B16.104 Class IV (metal seat)

Description

Our High Pressure Stainless Steel Globe Valves are engineered for critical applications requiring reliable shut-off under extreme pressure conditions. Manufactured from 304/316L stainless steel, these valves meet ASME B16.34 Class 900 to Class 2500 standards, making them ideal for:Oil & gas production,High-pressure steam systems,Chemical injection lines.
Key Features & Benefits

Pressure ratings from Class 900 to Class 2500 (ANSI)

Suitable for working pressures up to 6,000 psi (dependent on size/temperature)

Hydrostatic tested at 1.5x rated pressure

Body: SS304 SS316L CF8M CF3M CF8C

Trim: Stellite 6 hard-faced (seat & stem)

Gaskets: Spiral-wound 316L+Graphite

Optional: Inconel 718 for ultra-high pressure

Y-pattern body for reduced pressure drop

Balanced plug design for easier operation

Bellows seal stem for zero emissions

Fire-safe per API 607/ISO 10497

Technical Specifications

Parameter	Specification
Size Range	½" to 24" (DN15 to DN600)
Pressure Class	ASME Class 900, 1500, 2500
Temperature Range	-29°C to 593°C (-20°F to 1100°F)
End Connections	RF, RTJ, BW per ASME B16.5/B16.25
Leakage Class	ASME B16.104 Class IV (metal seat)
Operation	Handwheel, gear, or actuator operated
Standards	API 602, ASME B16.34, NACE MR0175

Technical support

Custom valve configurations

Emergency replacement services
