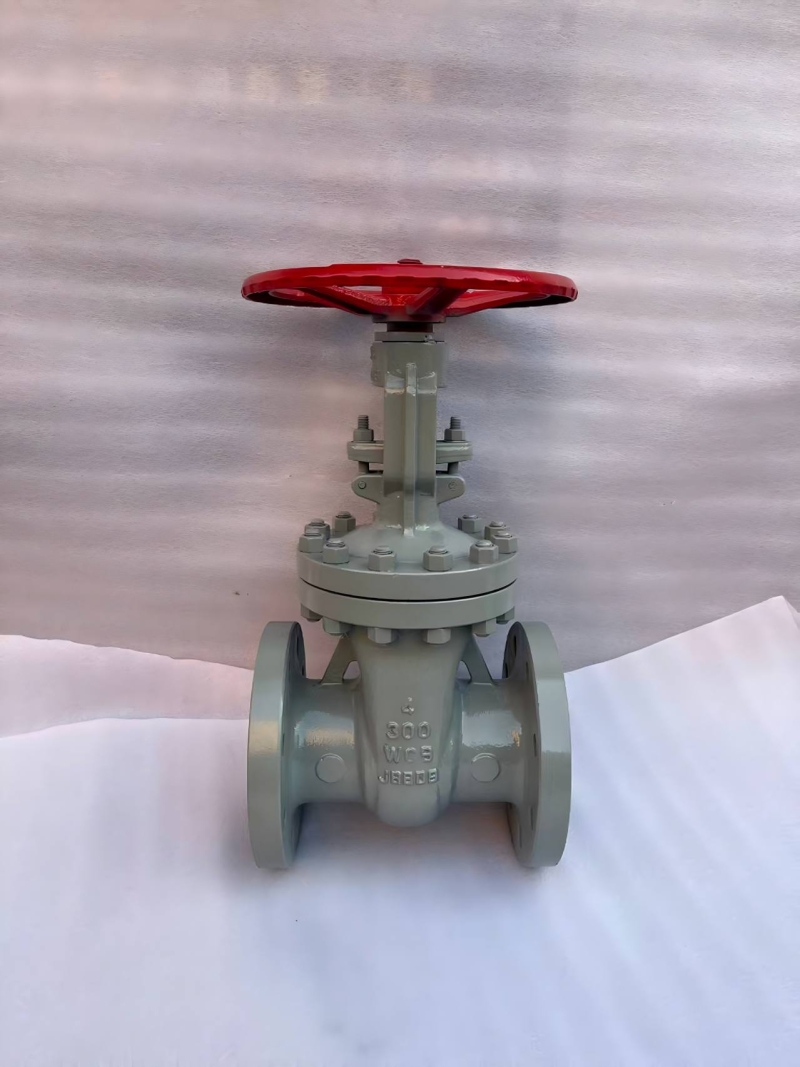

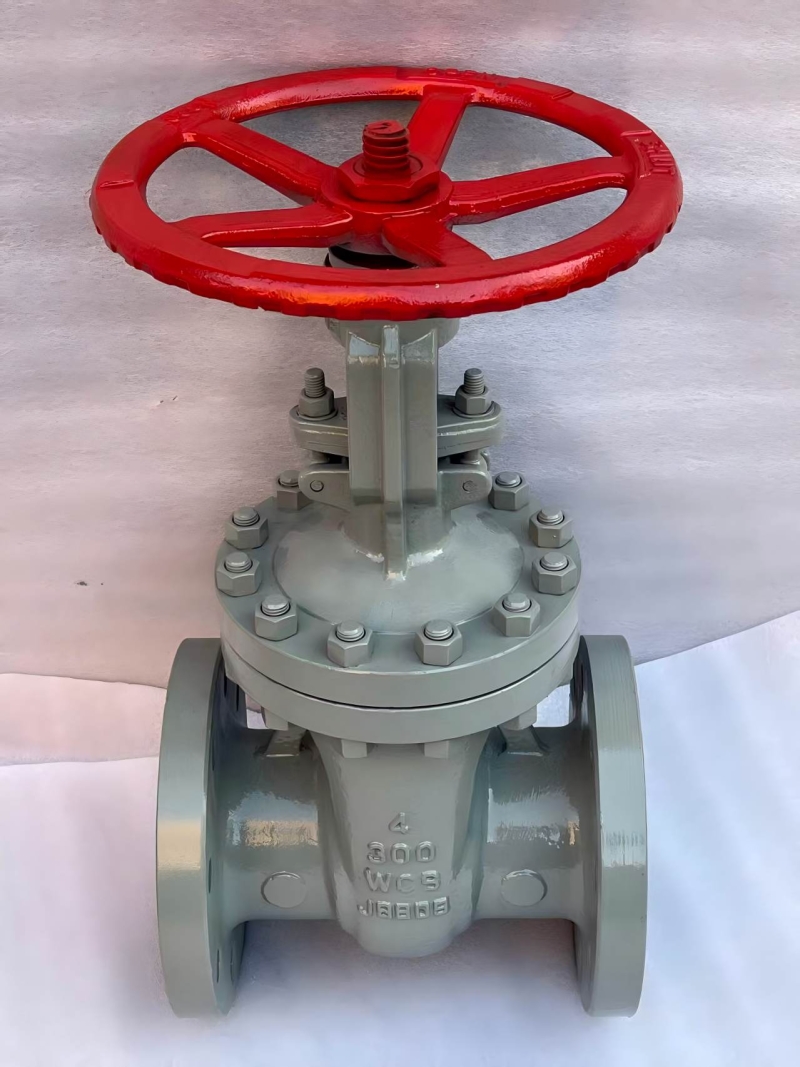

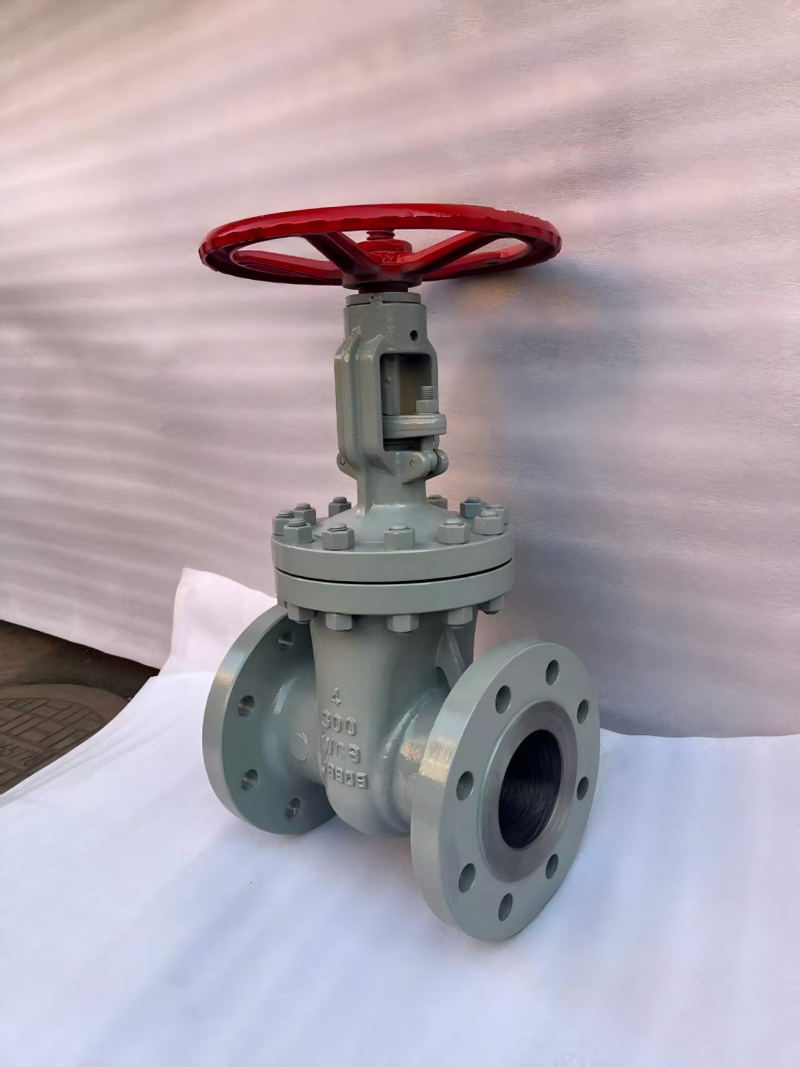

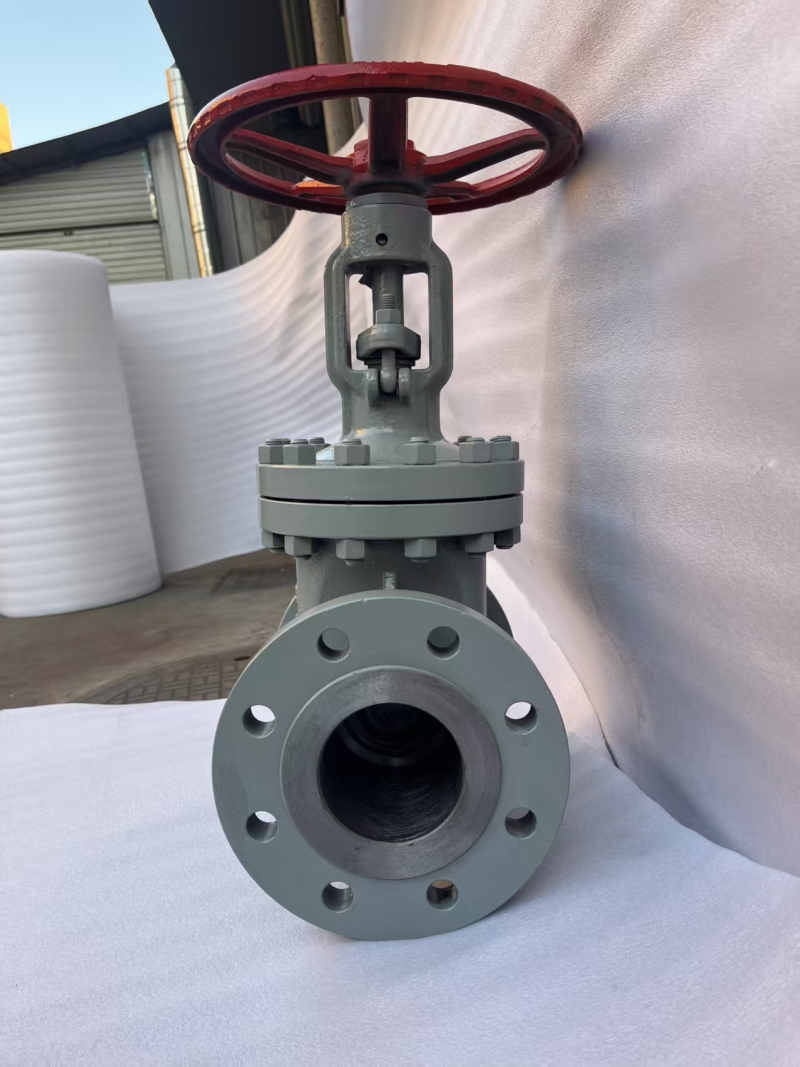

Engineered for reliable flow isolation across a broad spectrum of industrial applications, the 300LB Cast Steel WCB Flanged API 600 Gate Valve offers exceptional durability and performance.
Manufactured from high-quality ASTM A216 WCB cast steel, this valve provides excellent mechanical strength and corrosion resistance for water, oil, and gas services. Designed strictly to API 600 standards, it features a robust bolted bonnet construction and an Outside Screw and Yoke (OS&Y) design, allowing operators to visually verify the valve's open or closed status. With a full port design and standard flanged connections (ANSI B16.5), this Class 300 gate valve ensures minimal pressure drop, smooth flow characteristics, and seamless integration into existing piping systems.
Key Features & Benefits
• WCB Cast Steel Body: Crafted from premium ASTM A216 WCB carbon steel, providing superior strength, durability, and resistance to high-pressure environments.
• API 600 & Bolted Bonnet Design: Manufactured to strict API 600 standards with a secure bolted bonnet construction, ensuring reliable sealing and easy maintenance.
• OS&Y Rising Stem Mechanism: Features an Outside Screw and Yoke design with a non-rotating rising stem, providing a clear visual indication of valve position and preventing stem thread erosion from media.
• Full Port Flow Area: The full bore design matches the pipeline diameter, minimizing flow resistance, reducing pressure drop, and facilitating pipeline pigging operations.
• Flanged End Connections: Compliant with ANSI B16.5 standards, ensuring easy installation, secure sealing, and leak-proof performance in Class 300 piping systems.
• Renewable Seat Rings: Threaded-in backseat bushings and renewable seat rings extend the valve's service life and reduce long-term maintenance costs.
Technical Specifications
Parameter | Specification |
Valve Type | Cast Steel Flanged Gate Valve |
Design Standard | API 600, ASME B16.34 |
Body Material | ASTM A216 WCB (Carbon Steel) |
End Connection | Flanged (RF) per ANSI B16.5 |
Pressure Rating | Class 300 (PN50) |
Size Range | 2" to 12" (DN50 - DN300) |
Temperature Range | -29°C to +425°C |
Trim Material | 13% Cr, Stainless Steel (304/316), or Stellite |
Operation | Manual Handwheel / Gear Operator |
Testing & Inspection | API 598, API 6D |
Applications
This versatile Class 300 flanged gate valve is widely deployed in:
• Oil & Gas Industry: Gathering, transportation, and processing pipelines requiring reliable isolation.
• Chemical Processing: General-purpose fluid handling and chemical distribution systems.
• Water & Wastewater Treatment: Main water supply lines and industrial cooling water systems.
• Power Generation: Auxiliary water, steam, and general industrial utility lines.
• HVAC & Marine Systems: Large-diameter cooling water and fire protection systems.
FAQ
Q: What does WCB mean in cast steel gate valves?
A: WCB refers to ASTM A216 Grade WCB, which is a standard carbon steel casting widely used for industrial valves. It offers excellent weldability, good mechanical strength, and is suitable for high-temperature services up to 425°C, making it ideal for water, oil, and gas applications.
Q: What is the advantage of an OS&Y (Outside Screw and Yoke) design?
A: The OS&Y design features a rising stem that moves up and down with the handwheel. This provides a clear visual indicator of whether the valve is open or closed. Additionally, the stem threads are located outside the valve body, preventing them from being exposed to corrosive or abrasive media, which significantly extends the valve's lifespan.
Q: Why choose a full port gate valve?
A: A full port (or full bore) gate valve has an opening that is the same size as the pipeline. This design minimizes flow restriction and pressure drop across the valve, reduces turbulence, and allows for pipeline pigging, which is essential for cleaning and inspecting oil and gas pipelines.
