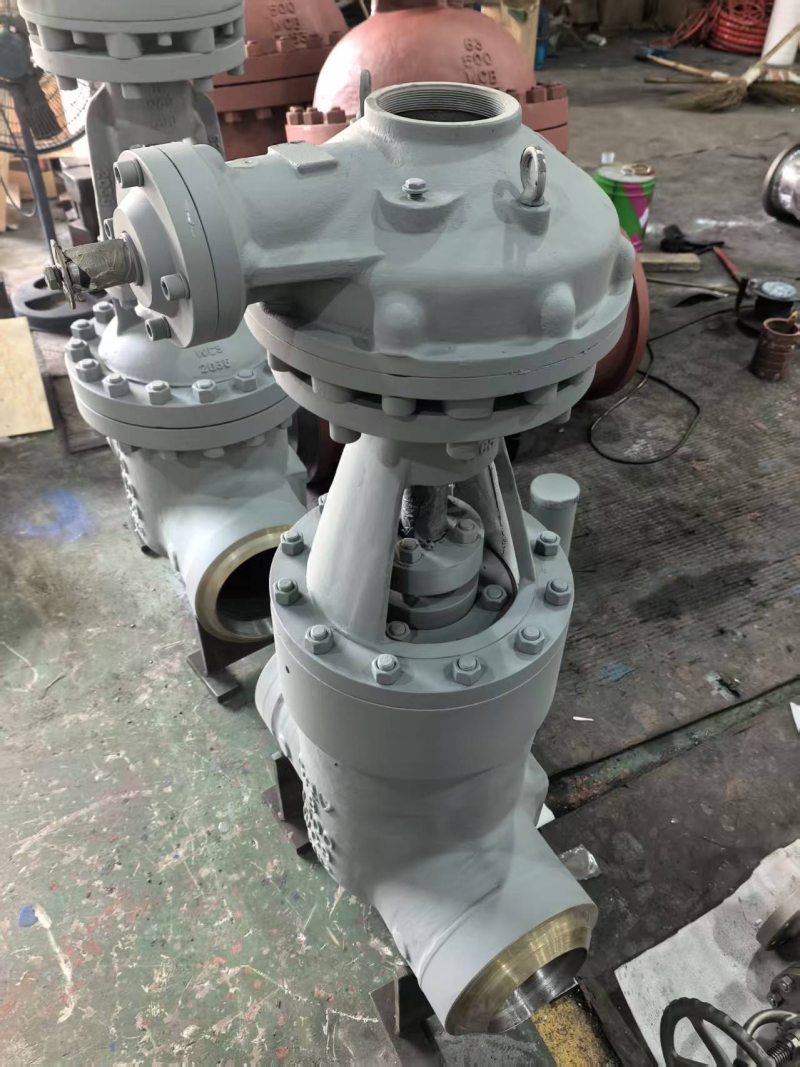

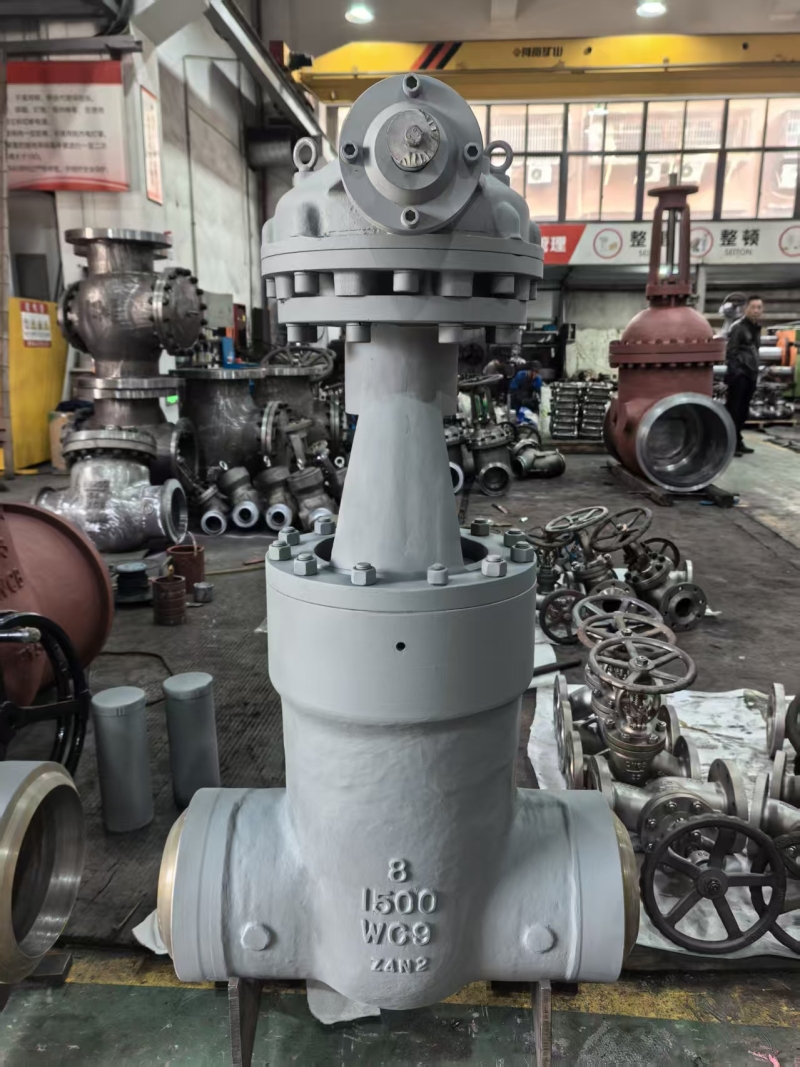

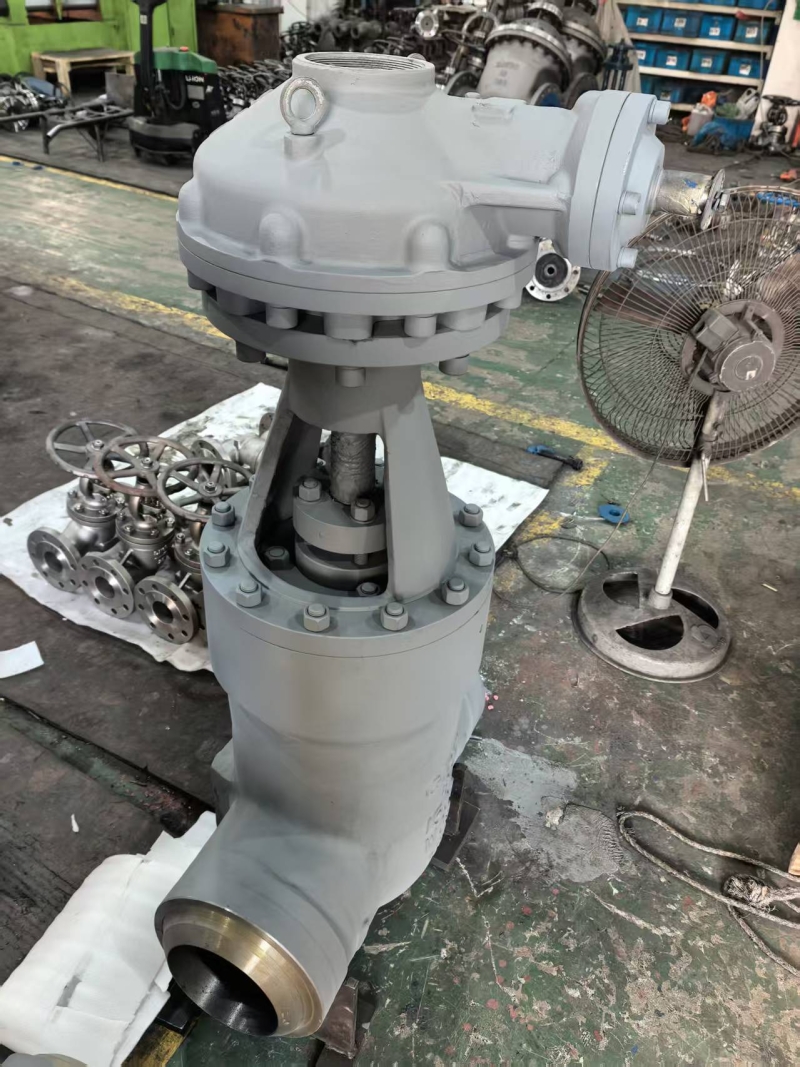

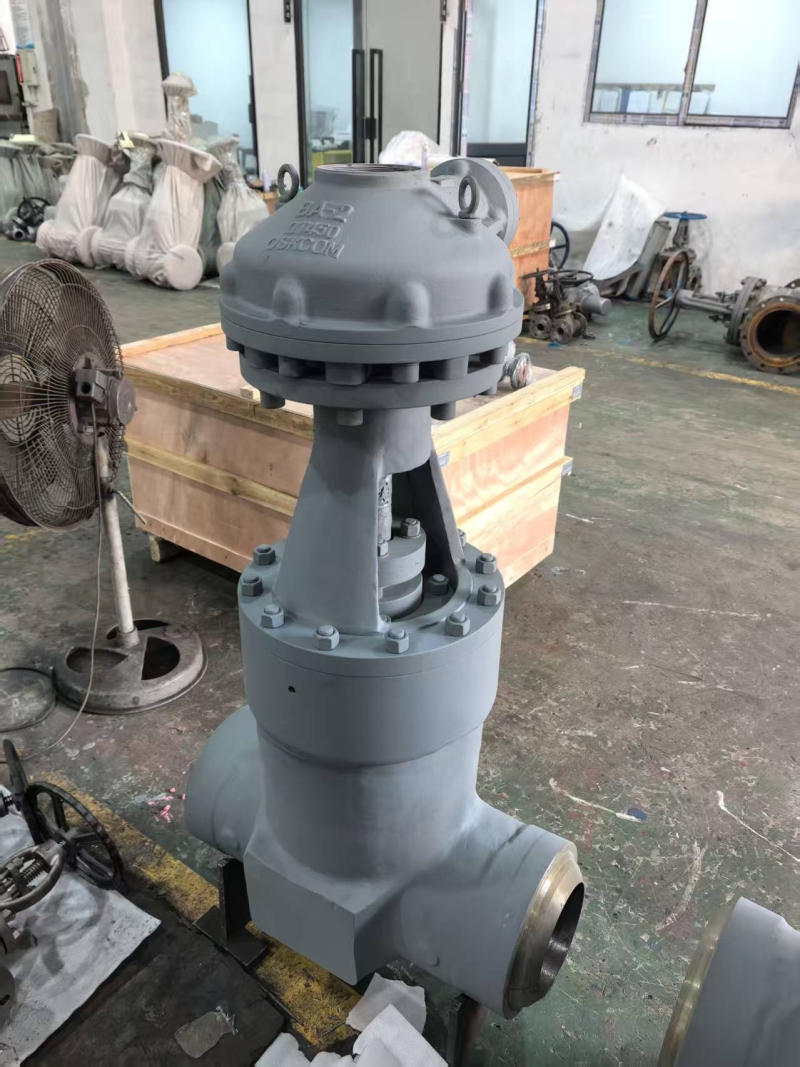

Engineered for extreme high-pressure and high-temperature environments, the OEM Made in China WC9 Alloy Steel API 600 Pressure Seal Gate Valve delivers unmatched structural integrity and reliable flow isolation.
Manufactured from premium WC9 alloy steel (ASTM A217), this valve provides outstanding creep strength and oxidation resistance in severe thermal cycling conditions. Designed strictly to API 600 standards, it features an advanced Pressure Seal bonnet construction, where the internal sealing force increases proportionally with the pipeline pressure, ensuring zero leakage uner extreme conditions. As an OEM Made in China product, it offers cost-effective customization, flexible manufacturing, and reliable quality control for global oil, gas, and power generation projects.
Key Features & Benefits
• Pressure Seal Bonnet Construction: Utilizes a unique self-sealing mechanism where internal media pressure pushes the seal ring tighter against the body and bonnet, guaranteeing zero leakage under ultra-high-pressure conditions.
• WC9 Alloy Steel Construction: Crafted from ASTM A217 WC9 chrome-moly alloy steel, providing superior creep resistance, high-temperature strength, and structural integrity in severe thermal cycling environments.
• API 600 Standard Compliance: Designed and manufactured strictly to API 600 specifications, ensuring dimensional compatibility, structural safety, and reliable performance in global petroleum and petrochemical infrastructure.
• OEM Customization & Made in China: Backed by China's robust manufacturing supply chain, we offer flexible OEM services including custom dimensions, special trim materials, and branding to meet specific project requirements at competitive costs.
• OS&Y Rising Stem Mechanism: Features an Outside Screw and Yoke design with a non-rotating rising stem, providing a clear visual indication of valve position and protecting stem threads from high-temperature media exposure.
• Stellite Hard-Faced Trim: Seat rings and wedge seating surfaces are overlaid with Stellite 6 (Co-Cr-W alloy) to resist severe erosion, high-temperature corrosion, and galling, ensuring long service life.
Technical Specifications
Parameter | Specification |
Valve Type | Pressure Seal Gate Valve |
Design Standard | API 600, ASME B16.34 |
Body Material | Alloy Steel (ASTM A217 WC9) |
End Connection | Flanged / Butt Welded (BW) |
Pressure Rating | Class 900 - 2500 |
Size Range | 2" to 24" (DN50 - DN600) |
Temperature Range | -29°C to +595°C |
Operation | Manual Handwheel / Bevel Gear / Electric |
Trim Material | WC9 + Stellite 6 Hard-Faced |
Testing & Inspection | API 598 |
Applications
This high-performance OEM WC9 pressure seal gate valve is widely deployed in:
• Power Generation: Main steam, reheat steam, and high-pressure feedwater lines in thermal and nuclear power plants.
• Oil Refineries: High-temperature crude oil, hot product pipelines, and coker units.
• Petrochemical Plants: High-pressure and high-temperature fluid isolation in critical cracking and processing units.
• Industrial Boilers: High-pressure steam generation and distribution headers.
• Heavy Industry: Any high-temperature, high-pressure piping systems requiring reliable OEM manufacturing and API 600 compliance.
FAQ
Q: What is a Pressure Seal Gate Valve and why is it used for high-pressure applications?
A: A Pressure Seal Gate Valve uses a self-sealing bonnet design where the internal media pressure pushes the seal ring against the body and bonnet. The higher the pipeline pressure, the tighter the seal. This makes it the safest and most reliable choice for ultra-high-pressure applications, as it eliminates the massive bolted flanges required in traditional designs.
Q: Why choose WC9 alloy steel for high-temperature valves?
A: WC9 is a chrome-moly alloy steel specifically designed for high-temperature applications. It offers excellent creep strength and oxidation resistance, preventing the valve body from deforming or failing under continuous exposure to extreme heat (up to 595°C) and high pressure.
Q: What are the advantages of OEM Made in China valves?
A: OEM Made in China valves combine cost-effective manufacturing with flexible customization. Buyers can request custom dimensions, special materials, branding, and flexible MOQs while benefiting from China's mature valve manufacturing supply chain and rigorous quality control systems.
