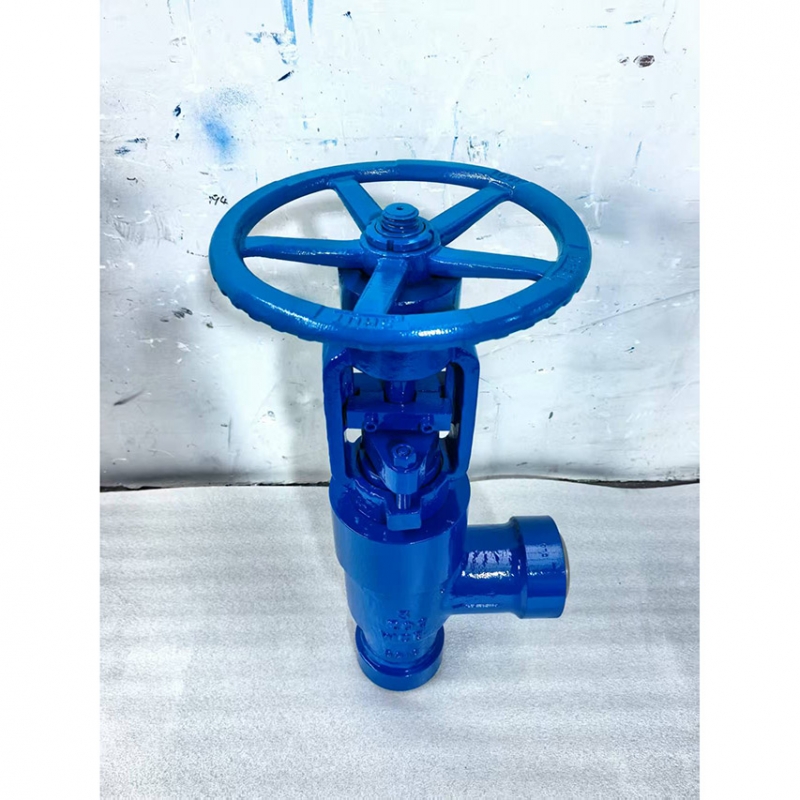

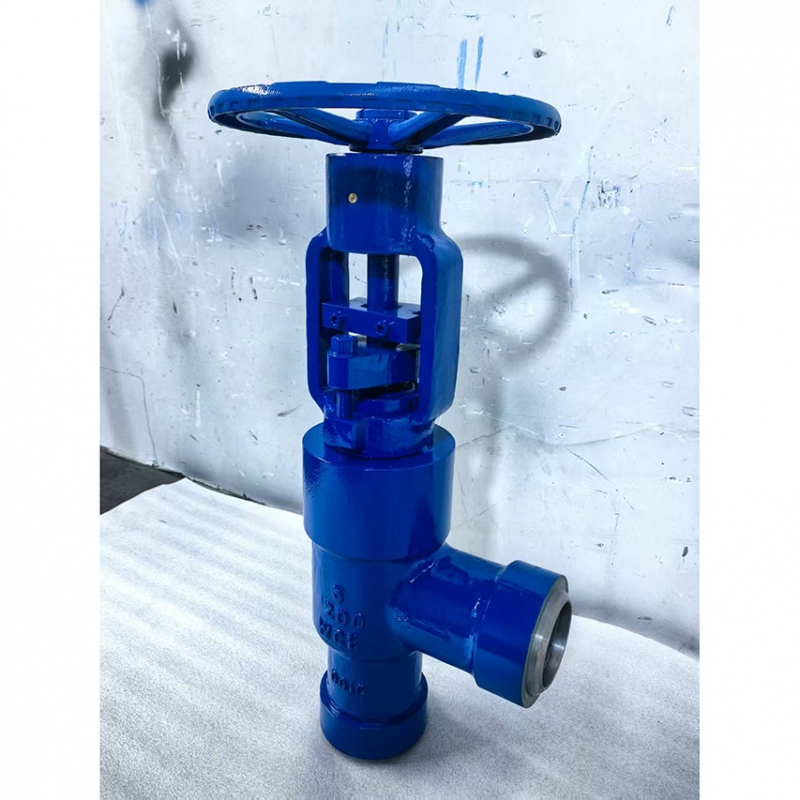

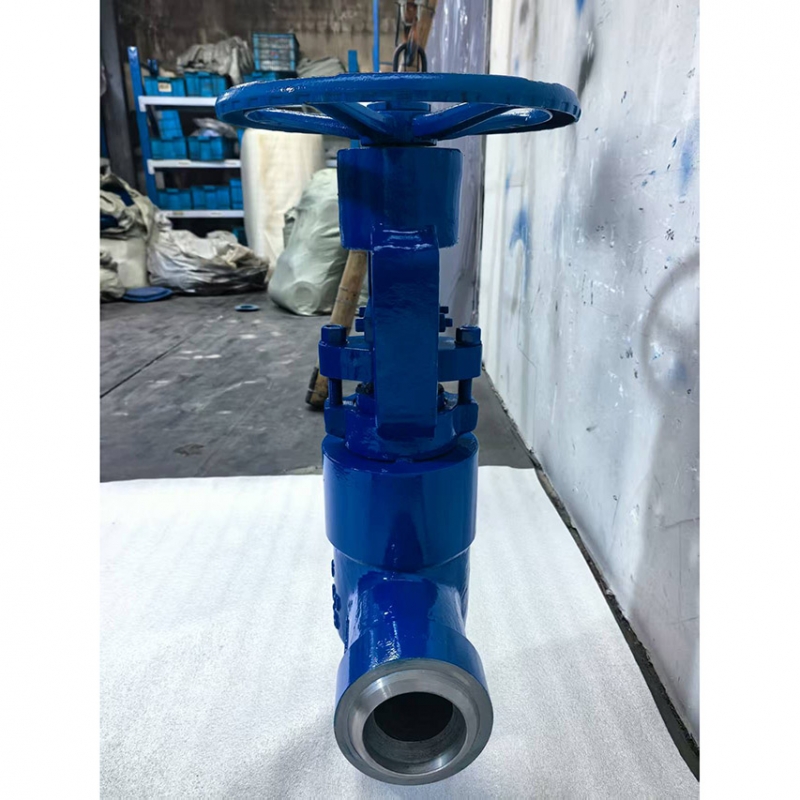

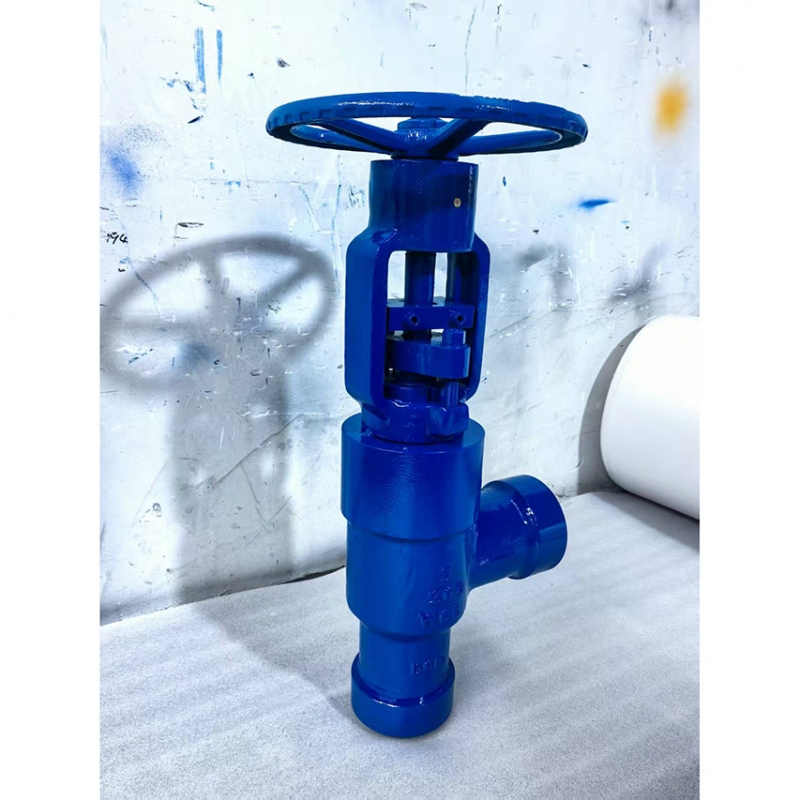

1500LB High Temperature High Pressure Welded Angle Globe Valve

Engineered for the most extreme thermal and pressure conditions, the 1500LB High Temperature High Pressure Welded Angle Globe Valve delivers uncompromising safety and reliable flow isolation.

Designed specifically for severe service environments, this valve features a robust angle body configuration that minimizes pressure drop and resists erosion in high-velocity steam flows. The welded end connections (BW/SW) provide a permanent, leak-proof seal directly to the pipeline, eliminating potential leak paths associated with flanged connections. Built to withstand continuous high-temperature and high-pressure cycling, this angle globe valve is the ultimate solution for critical main steam, reheat steam, and high-pressure feedwater systems in thermal and nuclear power plants.

Key Features & Benefits

· Angle Body Design: The 90-degree angle configuration reduces flow resistance and minimizes erosion in high-velocity steam services, while also saving valuable installation space in compact piping layouts.

· Welded End Connections: Features butt-welded (BW) or socket-welded (SW) ends to provide a permanent, structurally sound, and completely leak-proof connection, essential for 1500LB ultra-high-pressure applications.

· HTHP Structural Integrity: Engineered with heavy-duty wall thickness and high-strength alloy materials to withstand extreme thermal cycling and severe pressure surges without deformation or failure.

· Pressure Seal Bonnet: Utilizes a self-sealing bonnet structure where internal media pressure enhances the sealing force, guaranteeing zero leakage at 1500LB and above without the need for massive external bolting.

· Stellite Hard-Faced Trim: Seat rings and disc seating surfaces are overlaid with Stellite 6 (Co-Cr-W alloy) to resist severe erosion, high-temperature corrosion, and galling in aggressive steam flows.

· OS&Y Rising Stem Mechanism: Features an Outside Screw and Yoke design with a non-rotating rising stem, providing a clear visual indication of valve position and protecting stem threads from high-temperature media exposure.

Technical Specifications

Applications

This high-performance 1500LB welded angle globe valve is widely deployed in:

· Power Generation: Main steam, reheat steam, and high-pressure feedwater lines in thermal and nuclear power plants.

· Supercritical Units: Ultra-high-temperature and ultra-high-pressure steam piping networks requiring zero-leakage isolation.

· Petrochemical Plants: High-pressure steam and hot oil processing lines in critical cracking units.

· Industrial Boilers: High-pressure steam generation headers and distribution systems.

· Heavy Industry: Any high-temperature, high-pressure piping systems requiring angle flow configuration and welded connections.

FAQ

Q: Why choose an angle globe valve over a straight-through globe valve?
A: Angle globe valves have a 90-degree body configuration that reduces flow resistance and minimizes erosion in high-velocity steam services. They are also ideal for changing flow direction and saving installation space in compact piping layouts, making them preferred for power plant steam systems.

Q: What is the advantage of welded end connections for 1500LB valves?
A: Welded end connections (BW/SW) provide a permanent, leak-proof seal directly to the pipeline, eliminating potential leak paths associated with flanged connections. For 1500LB ultra-high-pressure applications, welded connections offer superior structural integrity and safety.

Q: What materials are suitable for 1500LB high-temperature angle globe valves?
A: Common materials include WCB for temperatures up to 425°C, WC6/WC9 for temperatures up to 595°C, and F304H/F316H stainless steel for temperatures up to 695°C. The material selection depends on the specific operating temperature and pressure conditions of the application.
