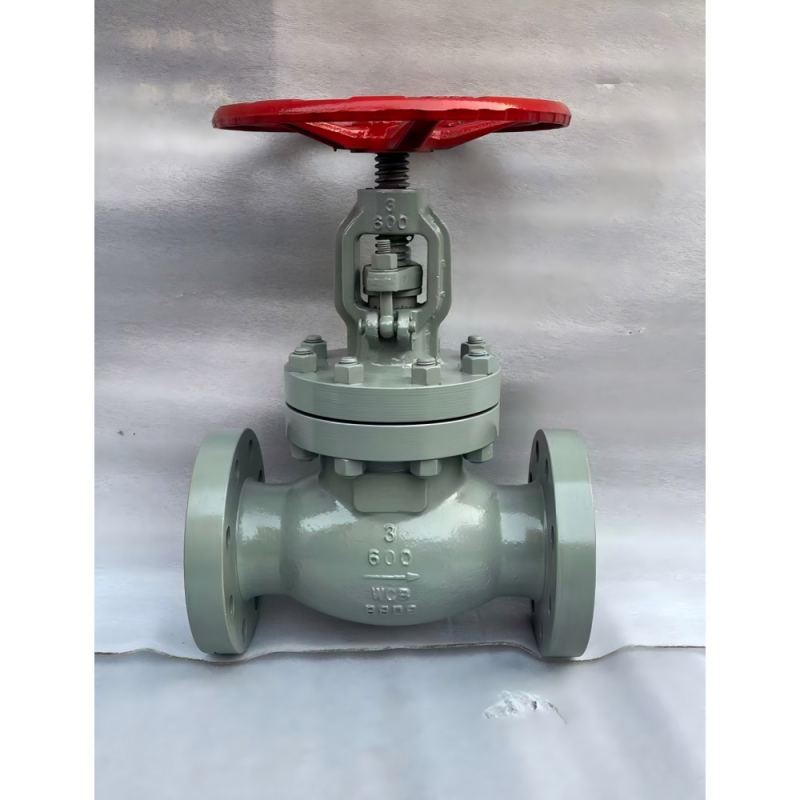

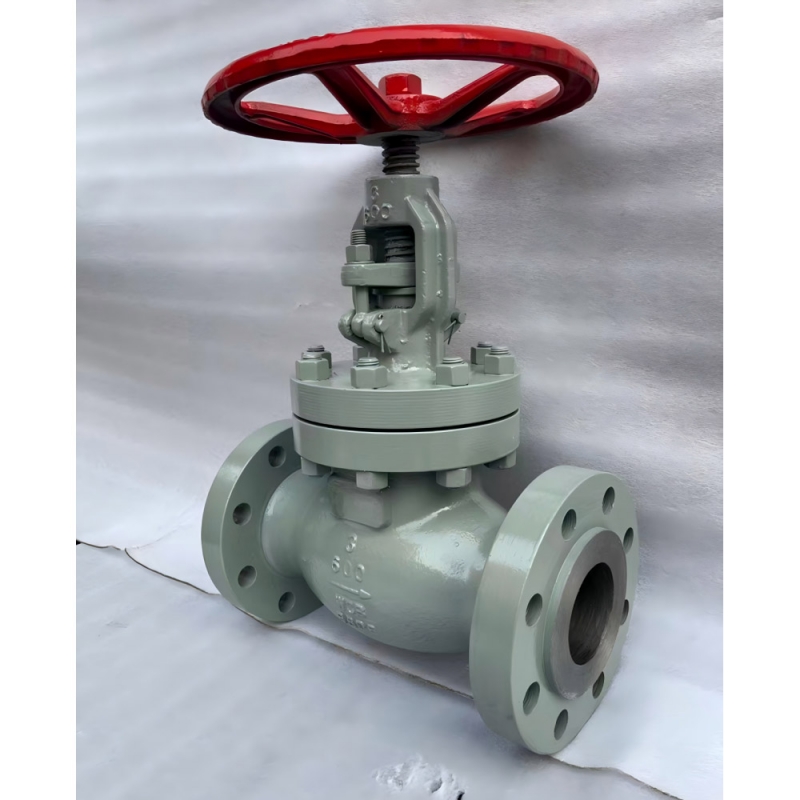

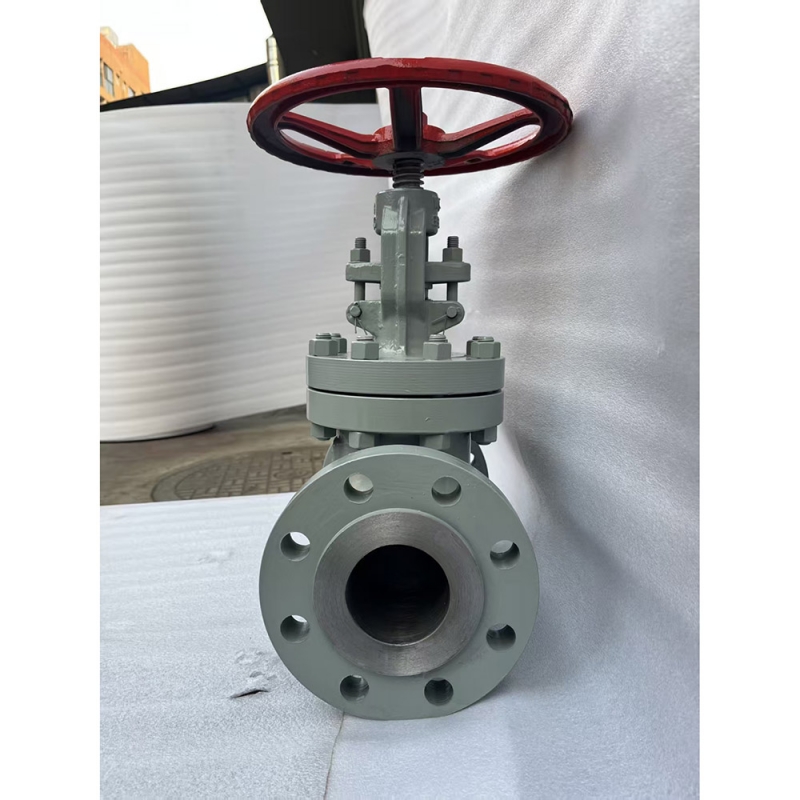

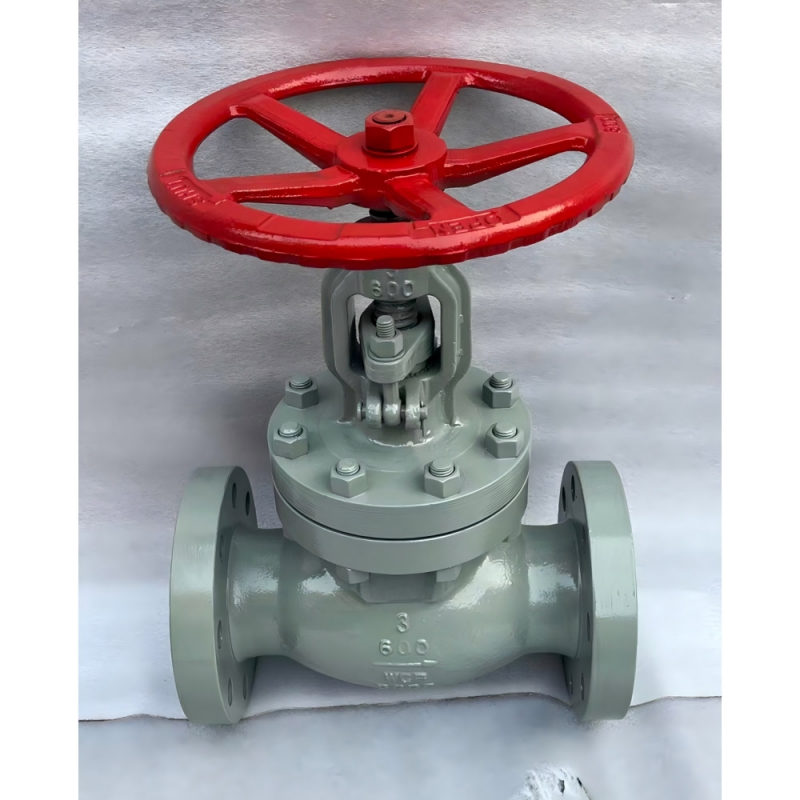

API 600 High Temperature High Pressure Flanged Globe Valve

Engineered for the most demanding thermal and pressure environments, the API 600 High Temperature High Pressure Flanged Globe Valve delivers uncompromising safety and precise flow regulation.

Designed strictly to API 600 standards, this valve is built to withstand severe thermal cycling and extreme internal pressures. It features a robust bolted bonnet construction and a heavy-duty body capable of handling high-temperature steam, oil, and gas. Equipped with standard flanged connections (ASME B16.5), this HTHP globe valve ensures reliable throttling, zero-leakage shut-off, and seamless integration into critical power generation, refinery, and petrochemical piping systems.

Key Features & Benefits

· API 600 Standard Compliance: Designed and manufactured strictly to API 600 specifications, ensuring dimensional compatibility, structural safety, and reliable performance in global petroleum and petrochemical infrastructure.
· HTHP Structural Integrity: Engineered with heavy-duty wall thickness and high-strength alloy materials to withstand extreme thermal cycling and severe pressure surges without deformation or failure.

· Precise Throttling & Shut-off: The plug-shaped disc moves linearly along the valve seat, with the port change directly proportional to the disc stroke, making it ideal for both precise flow regulation and reliable isolation in high-pressure systems.

· Robust Flanged Connections: Compliant with ASME B16.5 standards, ensuring easy installation, secure sealing (RF or RTJ), and leak-proof performance in high-pressure piping systems.

· OS&Y Rising Stem Mechanism: Features an Outside Screw and Yoke design with a non-rotating rising stem, providing a clear visual indication of valve position and protecting stem threads from high-temperature media exposure.

· Stellite Hard-Faced Trim: Seat rings and disc seating surfaces are overlaid with Stellite 6 (Co-Cr-W alloy) to resist severe erosion, high-temperature corrosion, and galling in aggressive steam and oil flows.

Technical Specifications

Applications

This high-performance API 600 HTHP flanged globe valve is widely deployed in:

· Power Generation: Main steam, reheat steam, and high-pressure feedwater lines in thermal and nuclear power plants.

· Oil Refineries: High-temperature crude oil, hot product pipelines, and coker units requiring precise throttling.

· Petrochemical Plants: High-pressure steam and hot oil processing lines in critical cracking and processing units.

· Industrial Boilers: High-pressure steam generation headers and distribution systems.

· Heavy Industry: Any high-temperature, high-pressure piping systems requiring reliable flow regulation and API 600 compliance.

FAQ

Q: What does API 600 mean for globe valves?
A: API 600 is the American Petroleum Institute standard for steel valves with flanged and butt-welding ends. It specifies strict requirements for design, materials, dimensions, and testing, ensuring the valve meets the rigorous demands of high-temperature and high-pressure applications in the petroleum and petrochemical industries.

Q: Why choose a globe valve over a gate valve for HTHP applications?
A: Globe valves are designed for precise flow regulation and throttling, with a linear disc movement that allows proportional flow control. Gate valves are designed for full open or full shut isolation only. For HTHP applications requiring flow modulation, globe valves are the preferred choice despite their higher pressure drop.

Q: What materials are suitable for API 600 HTHP globe valves?
A: Common materials include WCB for temperatures up to 425°C, WC6/WC9 for temperatures up to 595°C, and F304H/F316H stainless steel for temperatures up to 695°C. The material selection depends on the specific operating temperature and pressure conditions of the application.
