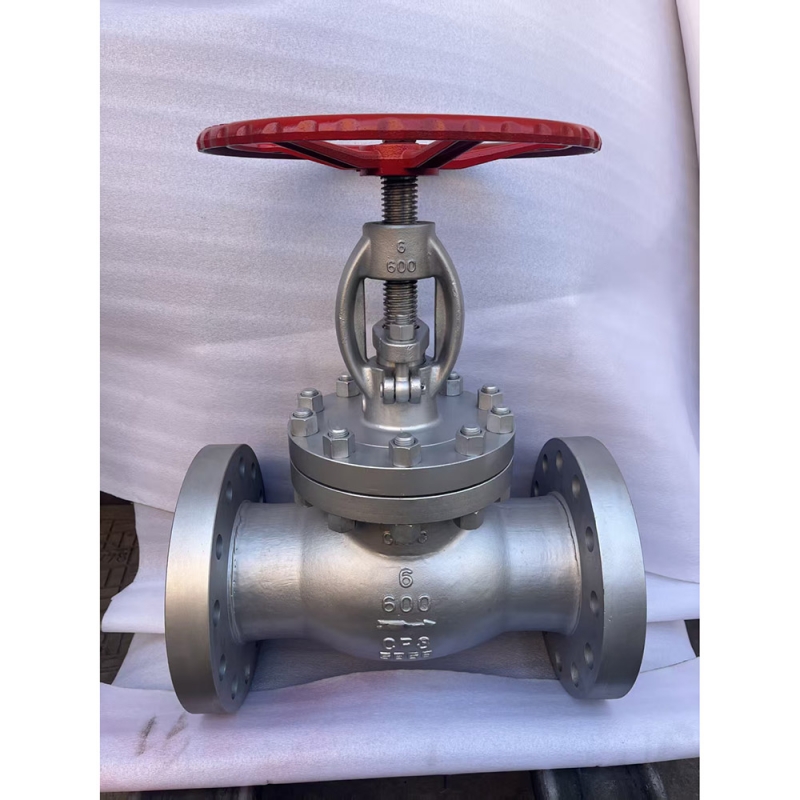

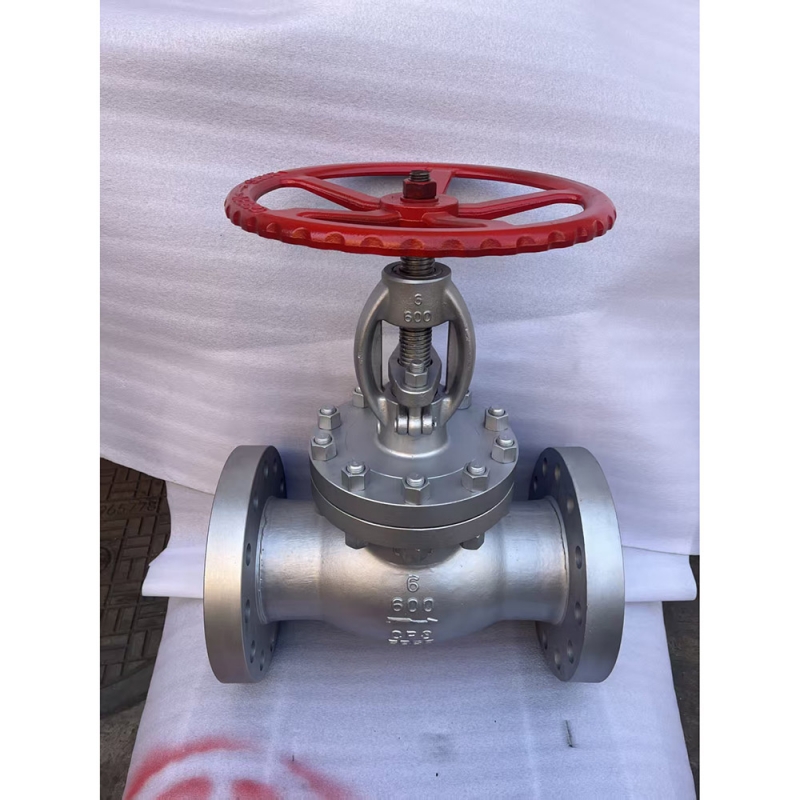

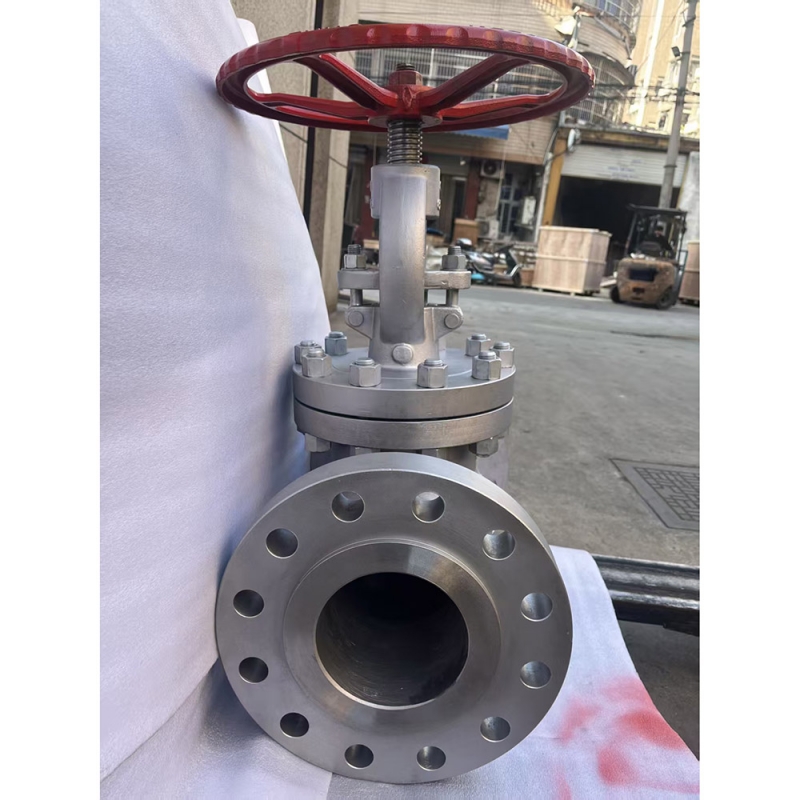

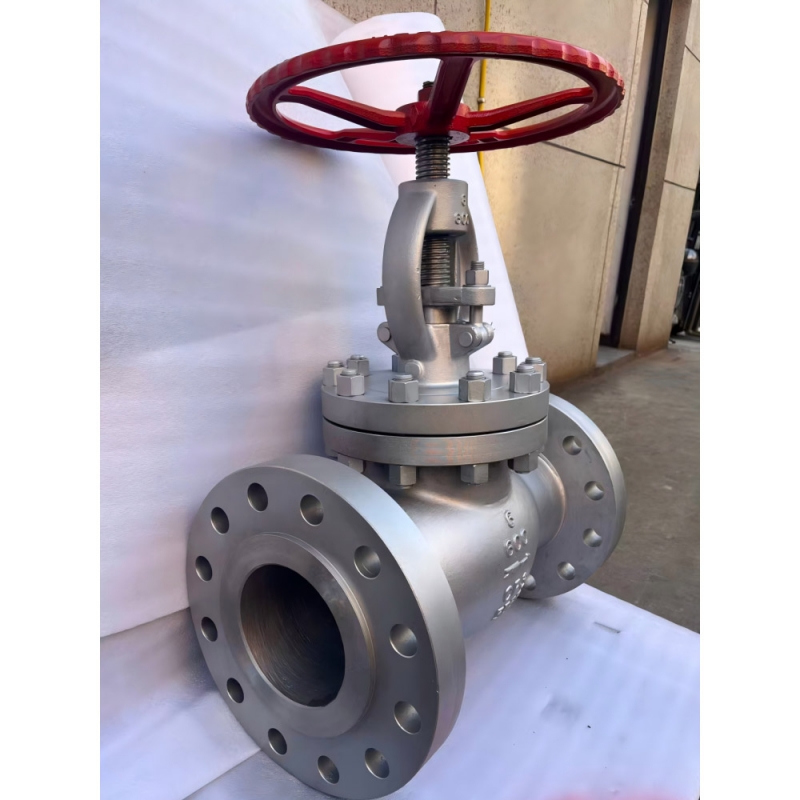

Class 600 API 600 Stainless Steel CF8M Flanged Globe Valve

Engineered for precise flow regulation and reliable shut-off in corrosive environments, the Class 600 API 600 Stainless Steel CF8M Flanged Globe Valve delivers exceptional performance and durability.

Manufactured from high-quality ASTM A351 CF8M stainless steel (cast equivalent of 316), this valve offers outstanding resistance to pitting, crevice corrosion, and chloride attack. Designed strictly to API 600 standards and compatible with ASME B16.5 flange dimensions, it features a robust bolted bonnet construction and a plug-shaped disc that moves linearly along the valve seat centerline. Equipped with standard Raised Face (RF) flanged connections, this CF8M globe valve ensures smooth flow control, reliable sealing, and seamless integration into critical chemical, petrochemical, and marine piping systems.

Key Features & Benefits

· API 600 Standard Compliance: Designed and manufactured strictly to API 600 specifications, ensuring dimensional compatibility, structural safety, and reliable performance in global industrial infrastructure.

· CF8M Stainless Steel Construction: Crafted from premium ASTM A351 CF8M cast stainless steel, providing superior resistance to chlorides, sulfuric acid, and marine environments without the risk of intergranular corrosion.

· Precise Throttling & Shut-off: The plug-shaped disc moves linearly along the valve seat, with the port change directly proportional to the disc stroke, making it ideal for both precise flow regulation and reliable isolation.

· ASME B16.5 Flanged Connections: Compliant with ASME B16.5 standards, ensuring easy installation, secure sealing with non-metallic gaskets, and leak-proof performance in Class 600 piping systems.

· OS&Y Rising Stem Mechanism: Features an Outside Screw and Yoke design with a non-rotating rising stem, providing a clear visual indication of valve position and protecting stem threads from corrosive media exposure.

· Versatile Trim Options: Available with CF8M, Monel, or Stellite hard-faced trim to suit various corrosive and erosive media requirements.

Technical Specifications

Applications

This versatile Class 600 CF8M stainless steel globe valve is widely deployed in:

· Chemical Processing: Handling chlorides, sulfuric acid, phosphoric acid, and other highly corrosive media.

· Petrochemical Plants: Corrosive fluid isolation and throttling in processing and distribution systems.

· Water & Wastewater Treatment: Seawater, desalination, and corrosive wastewater flow control applications.

· Marine & Offshore: Shipbuilding, offshore platforms, and coastal facilities requiring superior saltwater corrosion resistance.

· Food & Beverage: High-purity processing lines requiring sanitary and corrosion-resistant materials.

FAQ

Q: What does CF8M mean in stainless steel globe valves?
A: CF8M is the ASTM A351 standard casting grade for 316 stainless steel. It contains molybdenum, which provides superior resistance to pitting and crevice corrosion, especially in chloride and marine environments, making it ideal for chemical processing and offshore applications.

Q: Why choose API 600 standard for globe valves?
A: API 600 is the American Petroleum Institute standard for steel valves with flanged and butt-welding ends. It specifies strict requirements for design, materials, dimensions, and testing, ensuring the valve meets the rigorous demands of the petroleum, petrochemical, and allied industries.

Q: What is the temperature range for a CF8M stainless steel globe valve?
A: A CF8M (ASTM A351) stainless steel globe valve can typically handle temperatures from -196°C (cryogenic) up to +425°C. For continuous high-temperature service above 200°C, material strength and pressure ratings may need to be derated according to ASME B16.34 standards.
