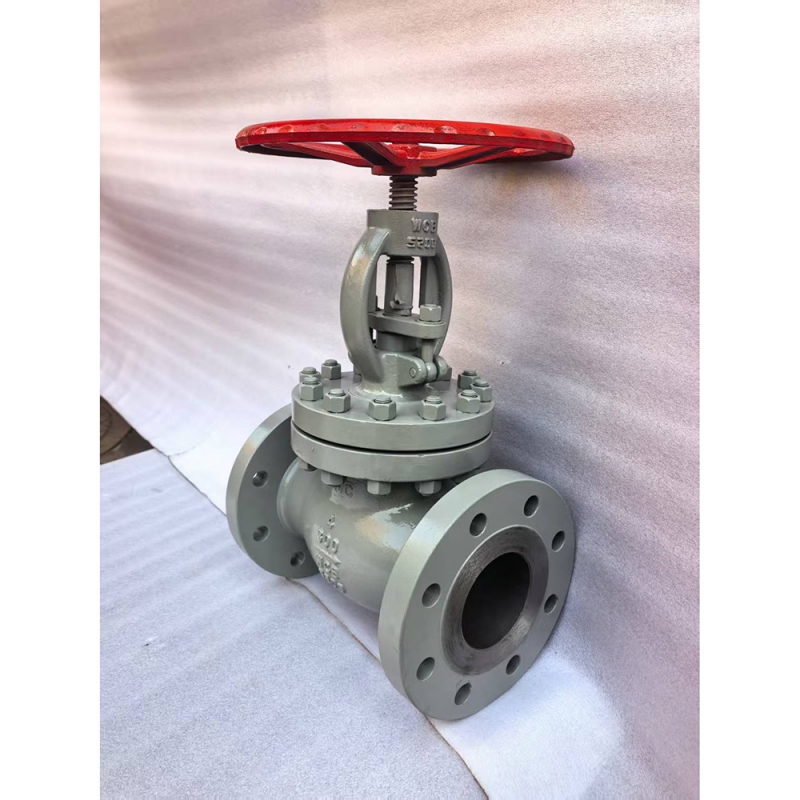

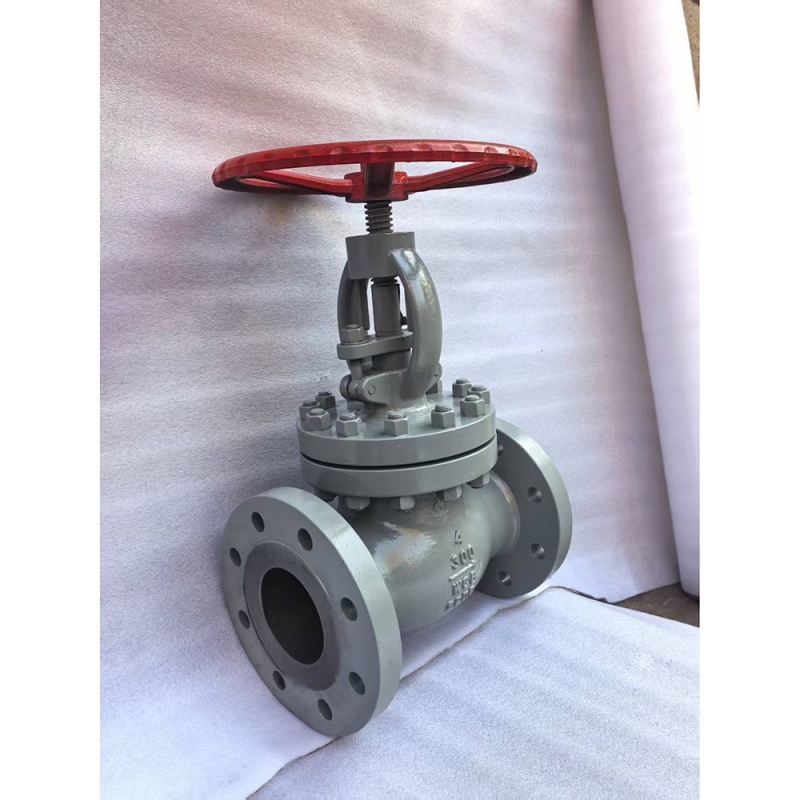

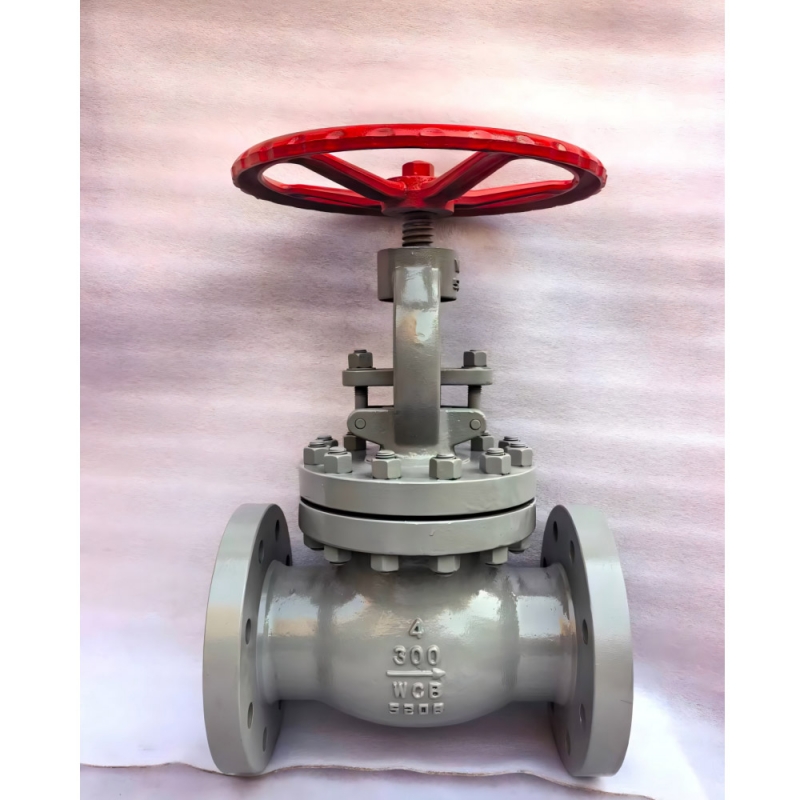

Class 300 Flanged RF WCB Cast Steel Globe Valve

Engineered for precise flow regulation and reliable shut-off in general industrial applications, the Class 300 Flanged RF WCB Cast Steel Globe Valve delivers exceptional performance and durability.

Manufactured from high-quality ASTM A216 WCB cast steel, this valve offers excellent mechanical strength and suitability for water, oil, gas, and steam services. Designed strictly to ASME B16.34 standards and compatible with ASME B16.5 flange dimensions, it features a robust bolted bonnet construction and a plug-shaped disc that moves linearly along the valve seat centerline. Equipped with standard Raised Face (RF) flanged connections, this WCB globe valve ensures smooth flow control, secure sealing, and seamless integration into critical power generation, refinery, and petrochemical piping systems under Class 300 pressure conditions.

Key Features & Benefits

· ASME Standard Compliance: Designed and manufactured strictly to ASME B16.34 specifications, ensuring dimensional compatibility, structural safety, and reliable performance in global industrial infrastructure.
· WCB Cast Steel Construction: Crafted from premium ASTM A216 WCB cast steel, providing superior strength, durability, and resistance to high-pressure environments for general industrial media.
· Precise Throttling & Shut-off: The plug-shaped disc moves linearly along the valve seat, with the port change directly proportional to the disc stroke, making it ideal for both precise flow regulation and reliable isolation.
· RF Flanged End Connections: Compliant with ASME B16.5 standards, ensuring easy installation, secure sealing with non-metallic gaskets, and leak-proof performance in Class 300 piping systems.
· OS&Y Rising Stem Mechanism: Features an Outside Screw and Yoke design with a non-rotating rising stem, providing a clear visual indication of valve position and protecting stem threads from media exposure.
· Versatile Trim Options: Available with 13% Cr, Stainless Steel, or Stellite hard-faced trim to suit various corrosive and erosive media requirements.

Technical Specifications

Applications

This versatile Class 300 WCB globe valve is widely deployed in:
· Oil & Gas Industry: Gathering, transportation, and processing pipelines requiring reliable isolation and throttling.
· Chemical Processing: General-purpose fluid handling, chemical distribution, and process control systems.
· Power Generation: Auxiliary water, steam, and general industrial utility lines requiring precise flow regulation.
· Water & Wastewater Treatment: Main water supply lines, industrial cooling water systems, and flow control applications.
· HVAC & Marine Systems: Cooling water, fire protection, and general utility piping networks.

FAQ

Q: What does WCB mean in cast steel globe valves?
A: WCB is the ASTM A216 standard casting grade for carbon steel. It offers excellent weldability, good mechanical strength, and suitability for high-temperature services up to 425°C, making it the most cost-effective and widely used material for general industrial valves handling water, oil, gas, and steam.

Q: Why choose Class 300 for general industrial globe valves?
A: Class 300 (PN50) is a standard medium-pressure rating that provides a reliable balance between structural strength and cost-effectiveness. It is suitable for most general industrial applications involving steam, oil, and gas, offering sufficient pressure capacity without the excessive weight and cost of higher pressure classes.

Q: What is the temperature range for a WCB cast steel globe valve?
A: A WCB (ASTM A216) cast steel globe valve can typically handle temperatures from -29°C up to +425°C. For continuous high-temperature service above 425°C, materials such as WC6, WC9, or stainless steel are recommended to maintain structural integrity and creep resistance.
