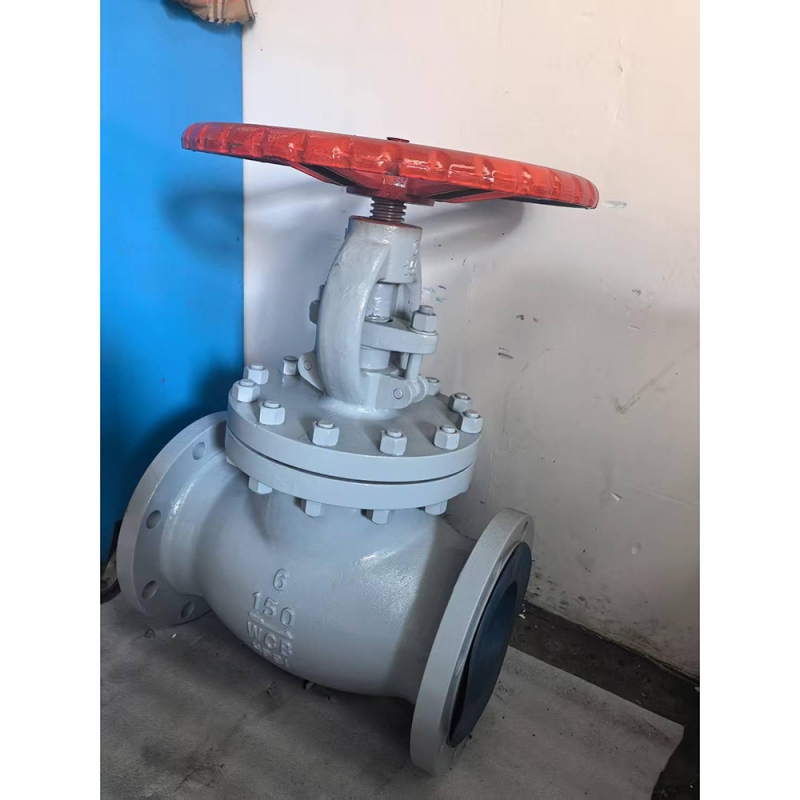

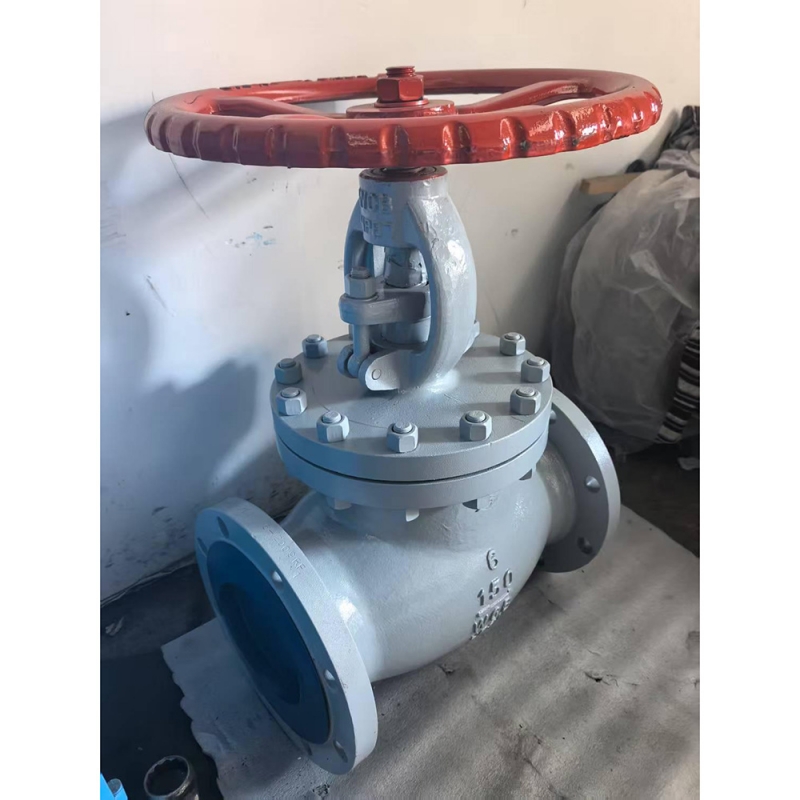

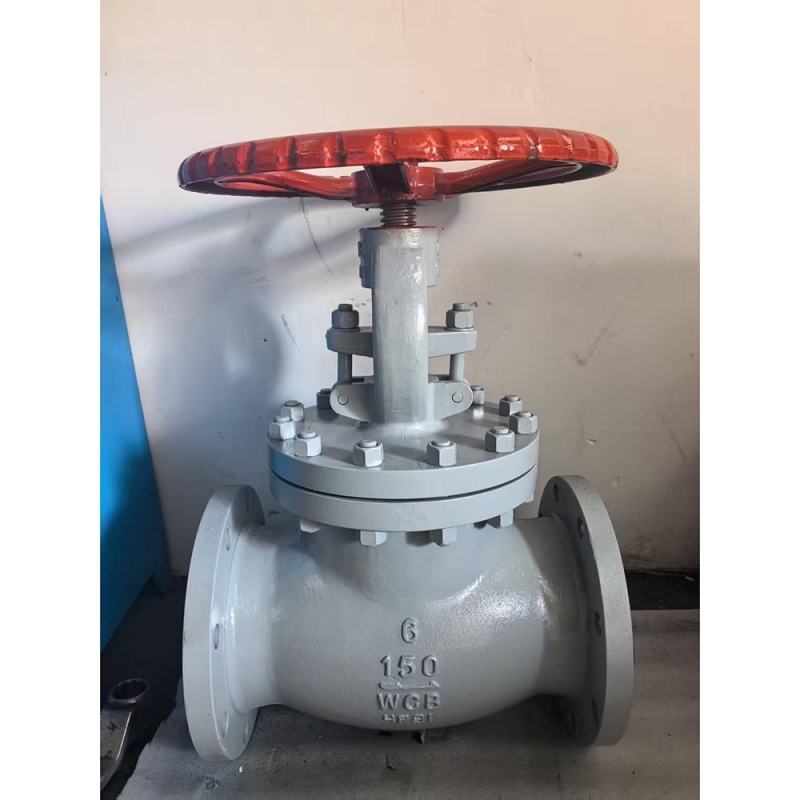

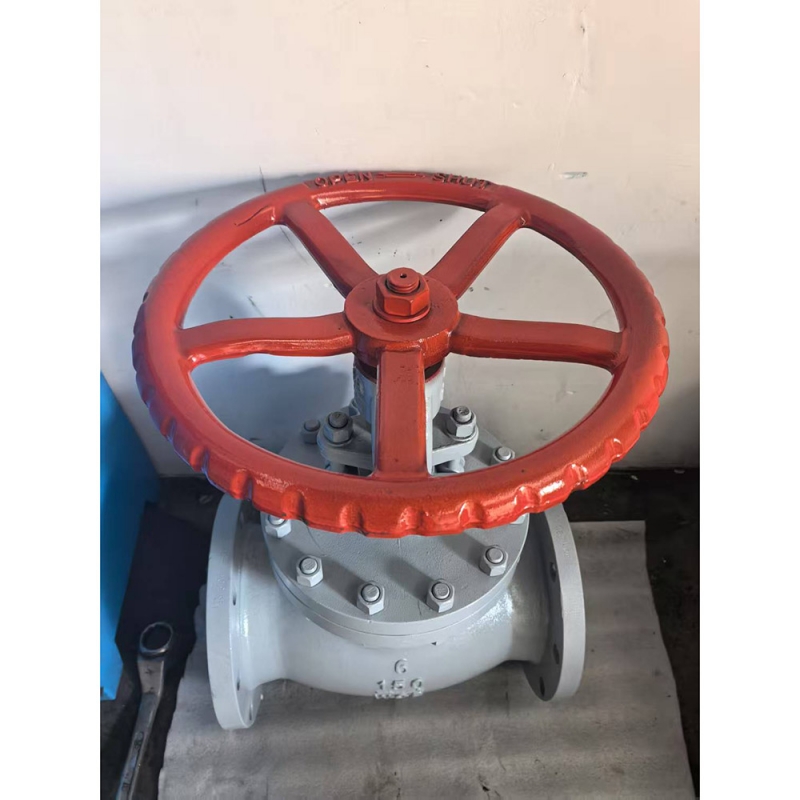

Engineered for precise flow regulation and reliable shut-off in general industrial applications, the BS 1873 Flanged RF Manual WCB Carbon Steel Globe Valve delivers exceptional performance and durability.
Manufactured from high-quality ASTM A216 WCB carbon steel casting, this valve offers excellent mechanical strength and suitability for water, oil, gas, and steam services. Designed strictly to BS 1873 standards and compatible with ASME B16.5 flange dimensions, it features a robust bolted bonnet construction and a plug-shaped disc that moves linearly along the valve seat centerline. Equipped with standard Raised Face (RF) flanged connections and a reliable manual handwheel operation, this WCB globe valve ensures smooth flow control, secure sealing, and seamless integration into critical power generation, refinery, and petrochemical piping systems.
Key Features & Benefits
· BS 1873 Standard Compliance: Designed and manufactured strictly to BS 1873 specifications, ensuring dimensional compatibility, structural safety, and reliable performance in global industrial infrastructure.
· WCB Carbon Steel Construction: Crafted from premium ASTM A216 WCB cast steel, providing superior strength, durability, and resistance to high-pressure environments for general industrial media.
· Precise Throttling & Shut-off: The plug-shaped disc moves linearly along the valve seat, with the port change directly proportional to the disc stroke, making it ideal for both precise flow regulation and reliable isolation.
· RF Flanged End Connections: Compliant with ASME B16.5 standards, ensuring easy installation, secure sealing with non-metallic gaskets, and leak-proof performance in standard piping systems.
· Manual Handwheel Operation: Features a durable manual handwheel for direct, reliable control without the need for external power, ideal for applications requiring simple and cost-effective operation.
· OS&Y Rising Stem Mechanism: Features an Outside Screw and Yoke design with a non-rotating rising stem, providing a clear visual indication of valve position and protecting stem threads from media exposure.
Technical Specifications
Parameter | Specification |
Valve Type | Flanged Globe Valve |
Design Standard | BS 1873 |
Body Material | Carbon Steel (ASTM A216 WCB) |
End Connection | Flanged (RF) per ASME B16.5 |
Pressure Rating | Class 150 - 2500 (PN16 - PN420) |
Size Range | 1/2" - 24" (DN15 - DN600) |
Temperature Range | -29°C to +425°C |
Trim Material | 13% Cr, Stainless Steel, or Stellite Hard-Faced |
Operation | Manual Handwheel |
Testing & Inspection | API 598 / BS 6755 |
Applications
This versatile BS 1873 WCB manual globe valve is widely deployed in:
· Oil & Gas Industry: Gathering, transportation, and processing pipelines requiring reliable isolation and throttling.
· Chemical Processing: General-purpose fluid handling, chemical distribution, and process control systems.
· Power Generation: Auxiliary water, steam, and general industrial utility lines requiring precise flow regulation.
· Water & Wastewater Treatment: Main water supply lines, industrial cooling water systems, and flow control applications.
· HVAC & Marine Systems: Cooling water, fire protection, and general utility piping networks.
FAQ
Q: What does WCB mean in carbon steel globe valves?
A: WCB is the ASTM A216 standard casting grade for carbon steel. It offers excellent weldability, good mechanical strength, and suitability for high-temperature services up to 425°C, making it the most cost-effective and widely used material for general industrial valves handling water, oil, gas, and steam.
Q: Why choose a manual handwheel for a BS 1873 globe valve?
A: Manual handwheel operation provides direct, reliable control without the need for external power sources. It is cost-effective, easy to maintain, and ideal for applications where automated control is not required or where simplicity and reliability are prioritized.
Q: What is the temperature range for a WCB carbon steel globe valve?
A: A WCB (ASTM A216) carbon steel globe valve can typically handle temperatures from -29°C up to +425°C. For continuous high-temperature service above 425°C, materials such as WC6, WC9, or stainless steel are recommended to maintain structural integrity and creep resistance.
