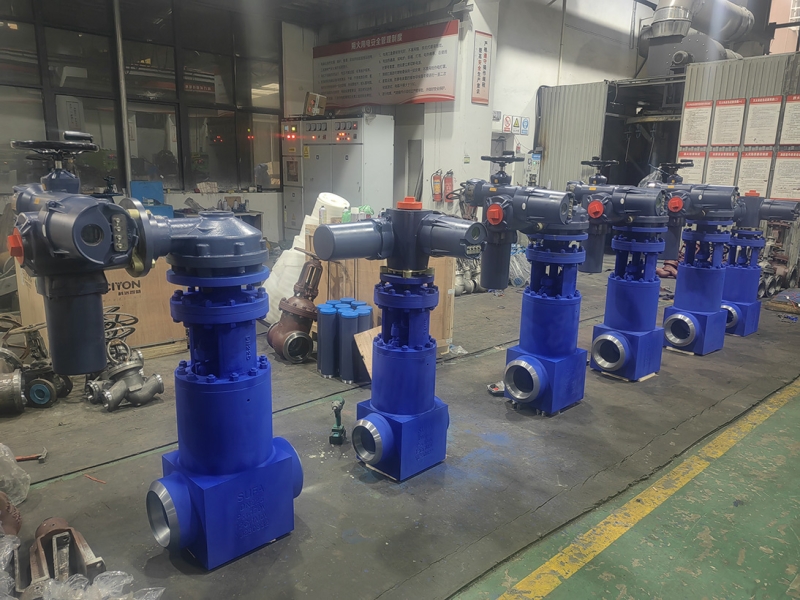

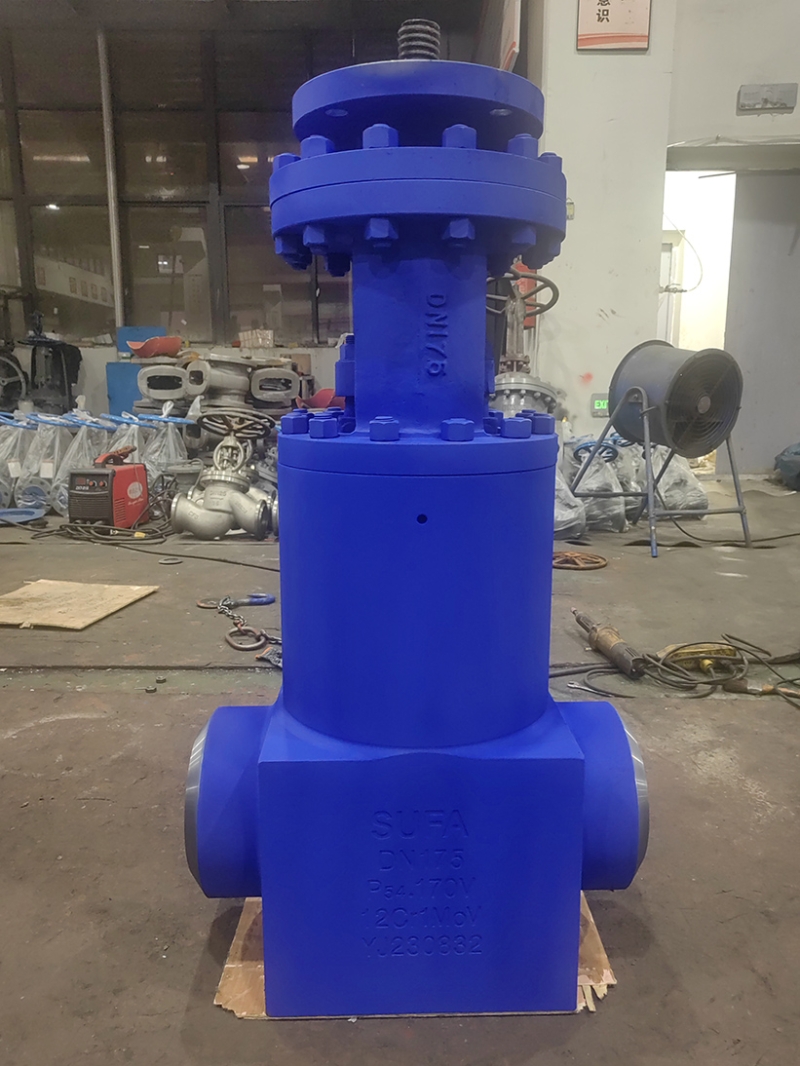

Engineered for the most critical isolation applications in supercritical and ultra-supercritical power generation, the 1500LB Electrically Actuated Butt Welded Pressure Seal Integral Forged API 600 Gate Valve represents the ultimate solution for high-temperature and high-pressure steam systems.
Unlike conventional cast steel valves, this valve features an integral forged body, eliminating casting defects and providing superior structural integrity under extreme thermal cycling. Designed specifically for power stations, the pressure seal bonnet utiizes internal system pressure to dynamically enhance sealing integrity as pressure increases. Coupled with a smart electric actuator and butt-welded end connections, this valve ensures smooth operation, zero-leakage isolation, and reliable performance in extreme high-pressure environments up to Class 1500.
Key Features & Benefits
• Integral Forged Steel Construction: Manufactured from a single piece of high-grade forged steel (e.g., ASTM A105 / F22 / F91). The continuous grain flow provides unmatched tensile strength, fatigue resistance, and leak-tight reliability in high-pressure steam service.
• Pressure Seal Bonnet Design: Utilizes a self-energizing pressure seal structure. As internal steam pressure increases, the sealing force increases proportionally, ensuring zero leakage even during rapid startup and shutdown transients in Class 1500 systems.

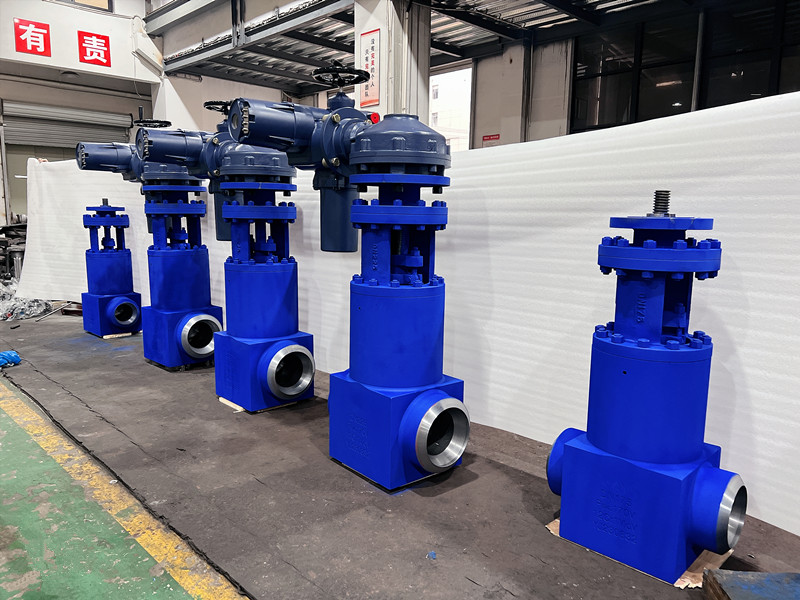

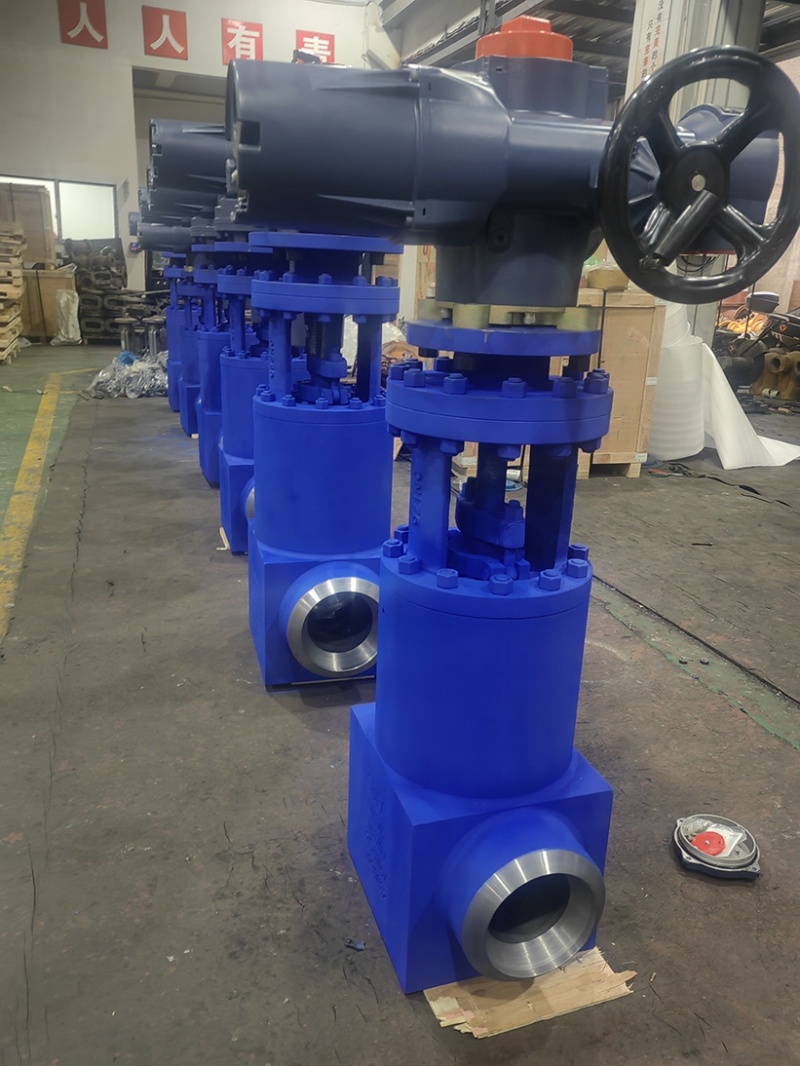

• Smart Electric Actuation: Equipped with multi-turn electric actuators featuring smart positioning, torque protection, and remote DCS/PLC integration. Ideal for automated, unattended power plant operations requiring precise flow control.
• Stellite Hard-Faced Trim: Seat rings and wedge seating surfaces are overlaid with Stellite 6 (Co-Cr-W alloy) to resist severe erosion, corrosion, and galling in high-temperature steam flows up to 600°C.
• API 600 & ASME Compliance: Designed and manufactured strictly to API 600 and ASME B16.34 standards, ensuring dimensional compatibility, structural safety, and reliable performance in global power infrastructure.
Technical Specifications
Parameter | Specification |
Valve Type | Pressure Seal Integral Forged Gate Valve |
Design Standard | API 600, ASME B16.34, E101 |
Body Material | ASTM A105, A182 F22, A182 F91 (Integral Forged) |
End Connection | Butt Weld (BW) per ASME B16.25 |
Pressure Rating | Class 1500 (PN 260) |
Size Range | 4" to 24" (DN100 - DN600) |
Temperature Range | -29°C to +600°C |
Actuation | Multi-turn Electric Actuator (Ex-proof / IP68) |
Testing & Inspection | API 598, NACE MR0175 (Sour Service Available) |
Applications
This high-performance forged gate valve is widely deployed in:
• Thermal Power Plants: Main steam isolation, hot/cold reheat lines, and high-pressure feedwater systems.
• Supercritical/ Ultra-Supercritical Units: High-temperature and high-pressure steam piping networks.
• Nuclear Power Facilities: Non-nuclear auxiliary steam and water isolation.
• Heavy Industrial Boilers: High-pressure steam generation and distribution systems.
FAQ Section
Q: Why choose an integral forged body over a cast body for high-pressure gate valves?
A: Integral forged valves are machined from a single solid block of steel, which aligns the grain structure and eliminates porosity, shrinkage, and inclusions common in castings. This results in superior mechanical strength, better resistance to thermal fatigue, and higher safety margins in extreme Class 1500 power station applications.
Q: How does the pressure seal bonnet work in high-temperature environments?
A: Unlike traditional bolted bonnets, the pressure seal design uses the internal media pressure to push the seal ring against the bonnet and body. The higher the system pressure, the tighter the seal becomes. This prevents the bolt-creep issues often seen in high-temperature thermal cycling.
Q: Can the electric actuator be integrated with our plant's DCS system?
A: Yes. We supply valves with premium multi-turn electric actuators that support 4-20mA feedback, Modbus/Profibus communication, and remote limit/torque monitoring, ensuring seamless integration into modern power plant Distributed Control Systems (DCS).
