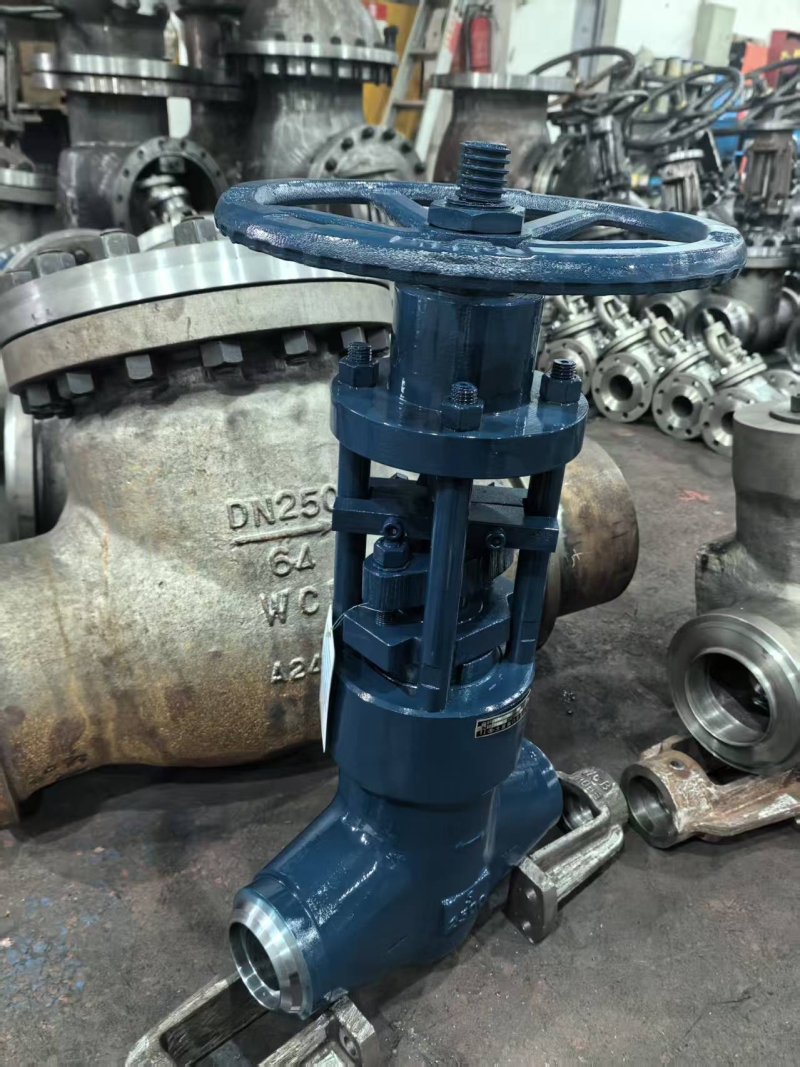

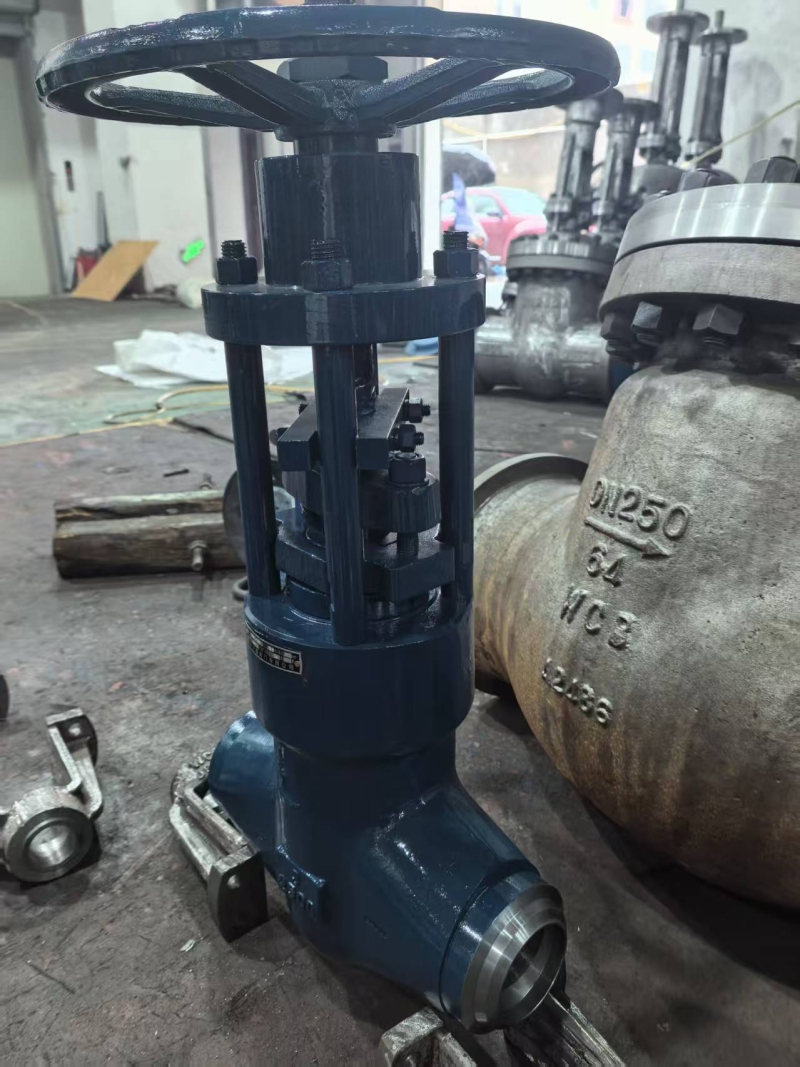

2500LB Forged BW High Pressure API600 Power Station Globe Valve

The 2500LB Forged BW High Pressure API600 Power Station Globe Valve is a professional high-pressure throttling and cut-off valve engineered strictly in accordance with API600 power station valve standards. Adopting one-piece integral forging technology, the entire valve body features dense metallic structure, ultra-high structural rigidity and excellent pressure-bearing performance, specially developed for ANSI 2500LB ultra-high pressure and high-temperature steam working conditions of supercritical and ultra-supercritical thermal power units. Different from gate valves, this globe valve is professionally optimized for pipeline flow regulation, throttling and emergency cut-off services, with precise sealing pair matching and stable throttling performance. Equipped with standard BW butt welded ends, it achieves full-penetration seamless welding with power station main pipelines, eliminating flange leakage points and improving the overall safety and stability of ultra-high-pressure steam pipeline systems.

All dimensional specifications, pressure-temperature ratings, structural designs and factory test procedures fully comply with API600, ASME B16.34, ASME B16.10 and API598 international industrial standards. The optimized streamline internal flow channel effectively reduces medium scouring and pressure loss, ensuring stable long-cycle operation of power plant main steam, boiler feed water and high-pressure auxiliary piping systems. With reinforced pressure-resistant forged body, precision metal hard seal structure and reliable anti-pressure impact performance, the valve maintains zero-leakage tight shutoff and accurate flow regulation under continuous ultra-high pressure and high-temperature alternating loads. It is the core throttling and safety cut-off equipment indispensable for large thermal power stations, petrochemical high-pressure process and ultra-high-pressure energy pipeline projects.

Core Product Features

1. Strict API600 Power-Grade Standard Compliance
Designed, manufactured and fully inspected according to API600 industrial specifications dedicated for power station critical service. All face-to-face dimensions, ANSI pressure class parameters and structural design standards conform to ASME B16.34 and ASME B16.10 regulations. Every finished valve undergoes 100% API598 hydrostatic shell pressure test and seat tightness test, fully meeting international supercritical power engineering acceptance and third-party quality certification requirements.

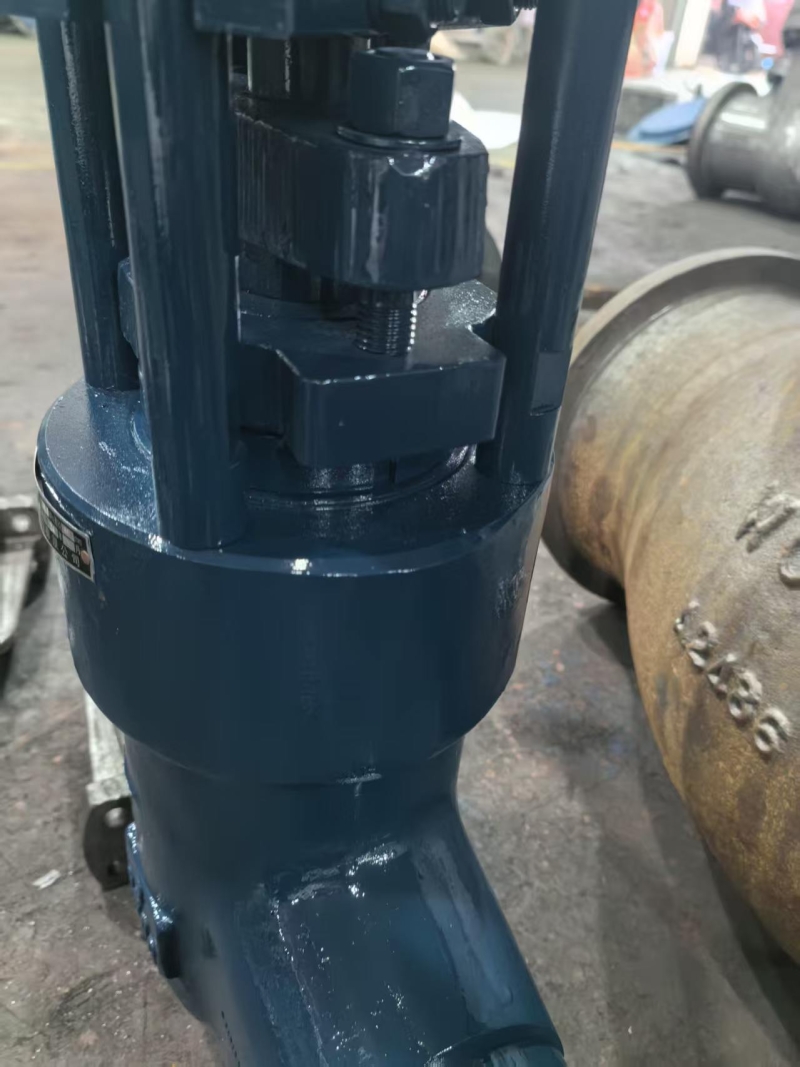

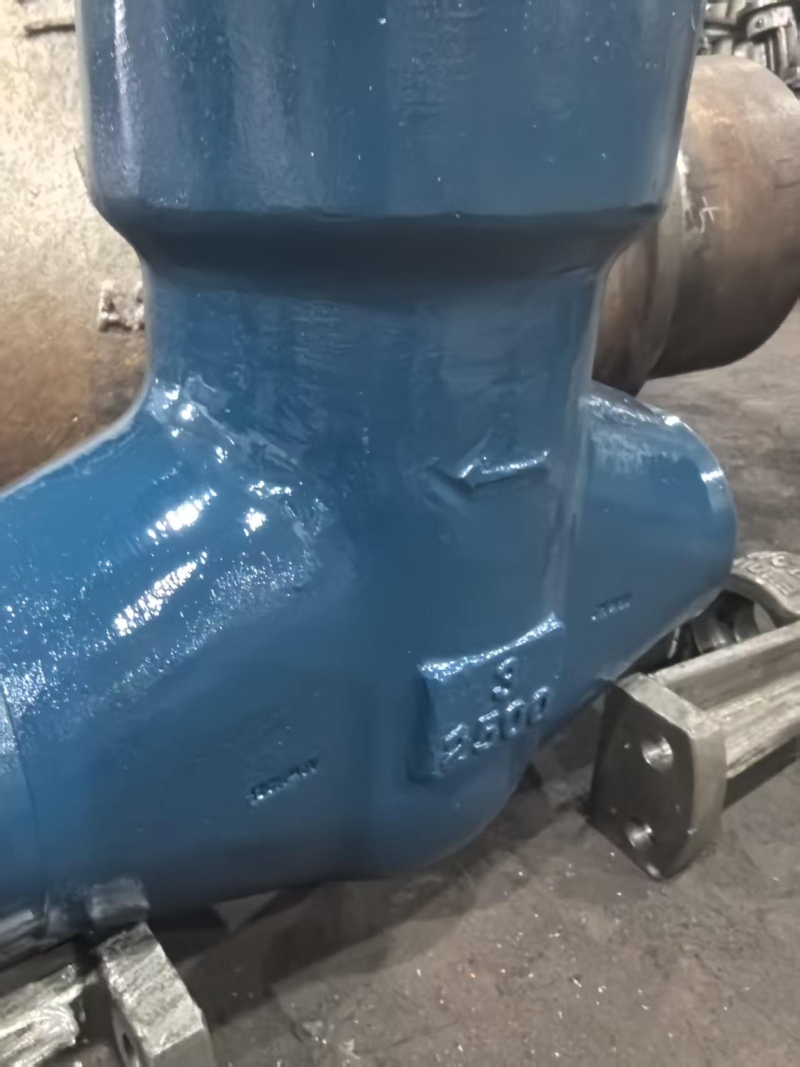

2. Premium Integral Forged Body Structure
Adopts one-piece integral forging molding with no casting pores, shrinkage cavities and structural defects. The continuous dense metal fiber structure endows the valve body with ultra-high tensile strength, pressure resistance and structural stability. It effectively resists structural deformation and cracking under long-term 2500LB ultra-high pressure impact, far exceeding the structural reliability of ordinary cast steel valves, suitable for extreme power station working conditions.

3. ANSI 2500LB Ultra-High Pressure Resistance
Optimized thick-wall forged valve body through finite element stress simulation analysis, specially reinforced and customized for ANSI 2500LB super high-pressure industrial working conditions. The overall structure maintains stable rigidity and zero deformation under long-term ultra-high pressure medium impact, adapting to severe pressure fluctuation working conditions of supercritical power plant main steam pipelines.

4. Professional BW Butt Weld Connection
Adopts standard ASME BW butt welded end design for power station pipelines, realizing full-penetration seamless welding with on-site pipelines. Completely avoids gasket aging, loosening and leakage risks of flanged connections, greatly improving the overall integrity, pressure resistance and operational safety of ultra-high-pressure steam pipeline systems, meeting long-term continuous operation requirements of power station main pipelines.

5. Precise Flow Throttling & Cut-off Performance
Unique globe valve streamline flow channel and plug sealing structure realize stepless accurate flow regulation and rapid emergency cut-off. The precision lapped metal hard sealing pair has strong scouring resistance and wear resistance, maintaining stable throttling accuracy and zero-leakage shutoff performance under high-speed high-temperature steam scouring, solving the problem of inaccurate regulation of ordinary pipeline valves.

6. Excellent High-Temperature Adaptability
The forged body and customized high-temperature resistant sealing accessories undergo strict high-temperature stabilization treatment, with outstanding thermal fatigue resistance and high-temperature oxidation resistance. It stably maintains mechanical performance and sealing tightness under long-term high-temperature steam working conditions, avoiding thermal deformation and sealing failure, fully adapting to power station high-temperature extreme working environments.

7. Durable & Low Maintenance Design
Integral forged defect-free structure with stable overall performance and few vulnerable parts. The metal hard seal structure is resistant to aging and deformation, suitable for long-term continuous throttling and cut-off operation. It effectively reduces later maintenance frequency and pipeline system operation costs, realizing long-cycle stable operation of power station ultra-high-pressure pipelines.

Complete Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This API600 2500LB forged BW power station globe valve is specially designed for ultra-high pressure high-temperature pipeline throttling and emergency cut-off. It can be used for long-term adjustable throttling service, different from gate valves. Operate strictly within rated 2500LB pressure and high-temperature range to avoid overload operation causing structural fatigue and sealing pair damage.

2. BW Welding Installation Requirements
Install the valve on straight pipeline sections of power station main steam systems, keep away from turbulent flow areas such as elbows and pump outlets. Thoroughly remove pipeline welding slag, oxide scale and hard impurities before welding to prevent scratching the precision hard sealing surface. Adopt professional power-grade full penetration welding process to ensure seamless pipeline connection and uniform welding stress, avoiding high-pressure leakage risks at welding joints.

3. Forged Body & Sealing Pair Protection
The integral forged valve body has high structural strength, but violent impact, extrusion and forced switching are prohibited during installation and operation. Avoid excessive stroke switching under full ultra-high pressure state to protect the stellite hardfacing sealing layer and maintain long-term throttling accuracy and tight shutoff performance.

4. Daily Inspection & Maintenance
Regularly inspect valve body tightness, stem lifting flexibility and sealing pair wear after long-term high-temperature operation. Clean internal pipeline impurities regularly, replace aging sealing accessories after complete pipeline depressurization and cooling. Lubricate the stem and transmission parts with high-temperature resistant grease to ensure stable and accurate throttling operation.

Wide Application Scenarios

•Supercritical Thermal Power Generation: Ultra-supercritical power plant main steam pipeline, superheated steam system and boiler feed water high-pressure throttling and cut-off valve systems

• Power Plant Auxiliary Pipeline: Turbine auxiliary piping, high-pressure water supply pipeline and thermal cycle process pipeline control equipment

• Petrochemical High-Pressure System: Refinery high-temperature heating medium, ultra-high pressure process fluid and hydrogen-containing medium pipeline regulation valves

• Industrial High-Energy Pipeline: Industrial ultra-high pressure steam circulation, high-temperature heat exchange system and pressurized process pipeline throttling control

• High-Pressure Energy Equipment: Large-scale energy station high-pressure pipeline, thermal power supporting equipment and emergency safety cut-off systems

Product Competitive Advantages

✅ Genuine API600 Power Station Standard — Fully compliant with API600 power-grade valve specifications, passing strict ultra-high pressure and high-temperature third-party engineering acceptance.

✅ Integral Forged Defect-Free Structure — One-piece forging molding, no casting defects, higher structural strength and pressure resistance than ordinary cast valves.

✅ 2500LB Ultra-High Pressure Resistance — Thick-wall reinforced forged body, anti-deformation and anti-fatigue, stable for long-term ultra-high pressure pipeline operation.

✅ BW Butt Weld Seamless Connection — Full penetration welded structure, zero gasket leakage risk, higher safety for power station main pipeline service.

✅ Precise Throttling & Cut-off Performance — Professional globe valve flow channel design, accurate flow regulation and rapid emergency cut-off function.

✅ High Temperature Anti-Scouring Performance — Hard alloy surfacing sealing pair, resistant to high-speed steam scouring and high-temperature aging, long service life.

Certification & Delivery Information

MOQ: 1 Unit
Production Lead Time: 15–25 working days for standard 2500LB forged BW specifications
Supporting Documents: EN10204 3.1 Material Certificate, API600 Compliance Report, API598 Inspection Report, ISO9001 Quality Certificate, High Temperature & Pressure Test Report
Export Packaging: Internal anti-rust & sealing protection + Plastic wrap + Reinforced fumigation-free wooden export case
Warranty Service: 12-month quality warranty + lifelong professional after-sales technical support

Contact Us for customized sizes, operation modes and bulk preferential prices of 2500LB Forged BW High Pressure API600 Power Station Globe Valves.
