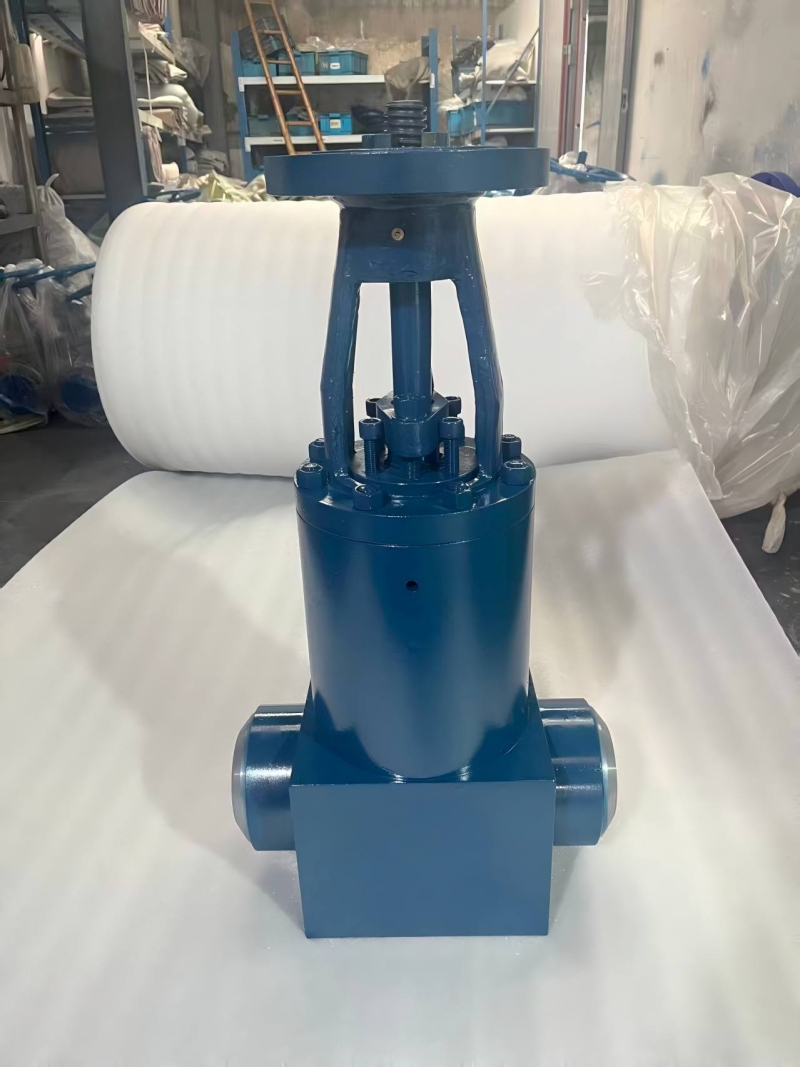

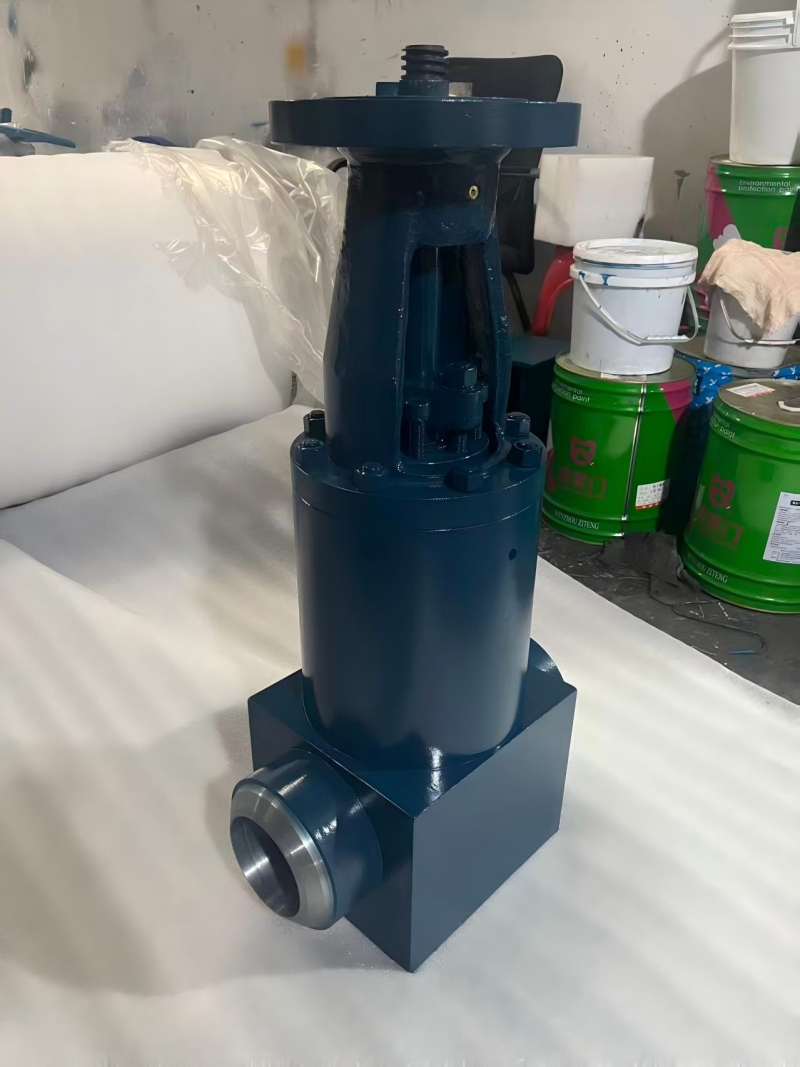

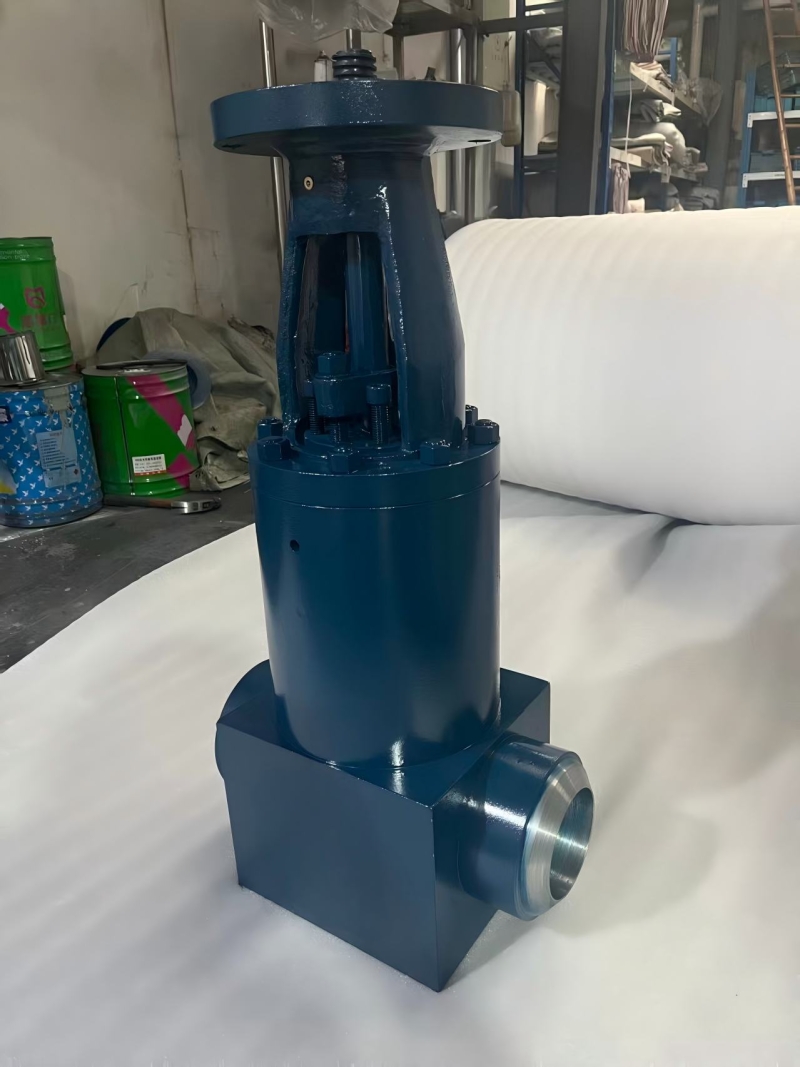

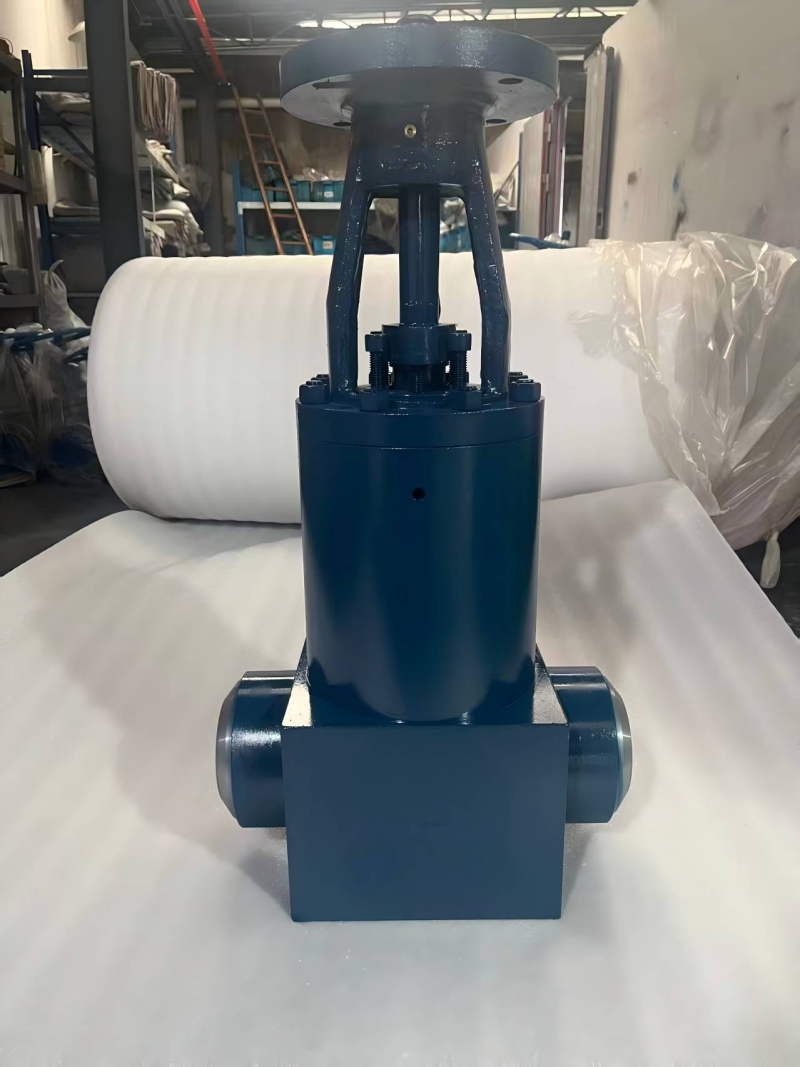

1500LB Integral Forged A182 F22 Self-Sealing API600 Power Station Gate Valve

The 1500LB Integral Forged A182 F22 Self-Sealing API600 Power Station Gate Valve is a heavy-duty power-grade isolation gate valve engineered strictly per API600 industrial power valve standards. Adopting one-piece integral open-die forging technology with premium ASTM A182 F22 (2.25Cr-1Mo) chromium-molybdenum alloy steel, this valve features dense continuous metal fiber structure, ultra-high mechanical strength and superior high-temperature creep resistance, professionally designed for 1500LB ultra-high pressure and high-temperature superheated steam extreme working conditions of large thermal power units. Upgraded from conventional F11 alloy steel valves, A182 F22 material delivers stronger high-temperature stability, hydrogen corrosion resistance and longer fatigue life under long-cycle high-pressure alternating load. Equipped with advanced medium pressure self-sealing bonnet structure, it achieves pressure-boost tight sealing performance — the higher the pipeline working pressure, the tighter the sealing effect, completely solving high-temperature steam leakage problems of traditional bolted bonnet valves.

All dimensional tolerance, pressure-temperature rating, structural design and factory test procedures fully comply with API600, ASME B16.34, ASME B16.10 and API598 international specifications. Adopting standard full-port straight flow channel, the valve minimizes medium flow resistance and pipeline pressure loss, ensuring stable and efficient long-term operation of power plant main steam, boiler feed water and high-pressure auxiliary piping systems. Featured with OS&Y outside screw rising stem, anti-blowout stem structure and thickened integral forged pressure-resistant body, it maintains zero-leakage tight shutoff under continuous high-temperature and high-pressure cycling impact. It is widely applied in supercritical power stations, thermal power generation, petrochemical high-temperature process and heavy industrial high-pressure energy pipeline projects, serving as core safety isolation equipment for high-end power engineering systems.

Core Product Features

1. Strict API600 Power-Grade Standard Compliance
Designed, manufactured and inspected fully in accordance with API600 steel gate valve specifications dedicated for power station critical service. All face-to-face structural lengths, ANSI pressure class ratings and internal structural designs conform to ASME B16.34 and ASME B16.10 industrial standards. Every finished valve undergoes 100% API598 hydrostatic shell pressure test and seat tightness sealing test, fully meeting international thermal power project third-party audit quality standards and engineering acceptance requirements.

2. Integral Forged A182 F22 Chrome-Moly Alloy Steel
Adopts premium ASTM A182 F22 (2.25Cr-1Mo) chromium-molybdenum alloy steel integral forging molding, with continuous metal fiber and ultra-compact internal structure. Compared with F11 steel and ordinary cast steel valves, F22 material possesses outstanding high-temperature creep resistance, thermal fatigue resistance and hydrogen embrittlement resistance. It stably maintains mechanical rigidity under long-term 580℃ high-temperature and 1500LB ultra-high pressure working conditions, effectively preventing structural deformation, cracking and medium leakage of power station high-pressure steam pipelines.

3. Advanced Pressure Self-Sealing Bonnet Structure
Equipped with exclusive power-grade pressure self-sealing bonnet design for ultra-high pressure pipeline service. The sealing assembly actively compresses the sealing ring relying on pipeline medium pressure, realizing automatic pressure compensation and reinforced tightness. Different from traditional bolted bonnet structures requiring regular tightening, this self-sealing design achieves higher pressure better sealing, no daily maintenance needed, permanently eliminating high-temperature high-pressure steam leakage at the valve bonnet.

4. 1500LB Ultra-High Pressure & Super High Temperature Resistance
Optimized thick-wall integral forged valve body via finite element stress simulation analysis, specially customized for ANSI 1500LB super high-pressure industrial working conditions. The upgraded F22 alloy steel adapts to higher temperature and longer thermal cycle operation, resisting steam erosion, pressure impact and thermal deformation. It operates stably for years in power station main steam and high-pressure process pipelines with extreme working condition fluctuations.

5. Full-Port Straight-Through Flow Channel
Adopts standard full-port straight-through flow channel structure with smooth internal wall, effectively reducing medium flow resistance and pipeline pressure drop. It avoids turbulent flow scouring on the sealing pair and valve body, greatly extending the service life of hard sealing components. Suitable for main pipeline full-bore isolation and stable flow control of large-scale thermal power and energy engineering projects.

6. OS&Y Rising Stem & Full Safety Protection
Features outside screw and yoke (OS&Y) rising stem structure, displaying valve opening and closing status clearly for real-time on-site monitoring. Equipped with integral anti-blowout valve stem, anti-loosening locking device and reinforced metal hard sealing pair, it effectively prevents stem ejection and medium leakage under ultra-high pressure, fully complying with high-risk power station pipeline safety operation specifications.

7. Low Maintenance & Long Service Life
One-piece integral forged F22 valve body has no casting pores, shrinkage cavities and structural defects, with extremely low failure rate. The pressure self-sealing structure requires no regular bolt maintenance and frequent accessory replacement, greatly reducing later operation and maintenance costs for power plant pipeline systems. It features excellent thermal cycle stability and fatigue resistance for long-term continuous industrial operation.

Complete Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This API600 1500LB A182 F22 self-sealing power station gate valve is specially designed for high-temperature high-pressure pipeline full open/closed isolation service. Long-term small-opening throttling operation is prohibited to avoid high-speed steam scouring damage to the precision metal hard sealing pair. Operate strictly within rated 1500LB pressure and 580℃ high-temperature range to prevent F22 alloy material thermal fatigue and sealing failure.

2. Power-Grade Pipeline Installation Requirements
Install the valve on straight pipeline sections of power station main steam systems, keep away from elbows, pump outlets and turbulent flow areas. Thoroughly clean pipeline welding slag, oxide scale and hard impurities before installation to protect the high-precision lapped hard sealing surface. Adopt matched high-pressure high-temperature flanges and special heat-resistant gaskets, tighten bolts diagonally and evenly to ensure uniform stress and prevent high-pressure steam leakage.

3. Integral Forged & Self-Sealing Structure Protection
The A182 F22 integral forged valve body has ultra-high structural strength, but violent impact, extrusion and forced switching are prohibited. The pressure self-sealing bonnet relies on medium pressure for tight sealing; avoid frequent switching under no-pressure state and do not disassemble the sealing assembly under pipeline pressurization to prevent safety accidents and sealing ring damage.

4. Daily High-Temperature Inspection & Maintenance
Regularly inspect valve body operating status, stem flexibility and bonnet tightness after long-term high-temperature operation. Check hard sealing surface wear periodically, replace aging self-sealing accessories only after complete pipeline depressurization and cooling. Lubricate stem and transmission parts with high-temperature resistant grease to ensure stable and flexible switching performance of power station high-pressure valves.

Wide Application Scenarios

• Thermal Power Generation: Supercritical power plant main steam pipeline, superheated steam system, boiler feed water and high-pressure auxiliary pipeline isolation valves

• Energy & Utility Engineering: Large-scale power station high-temperature high-pressure steam systems, central energy supply and thermal cycle process pipelines

• Petrochemical High-Pressure System: Refinery high-temperature heating medium, high-pressure process fluid and hydrogen-containing medium pipeline shutoff equipment

• Heavy Industrial Pipeline: Industrial high-pressure steam circulation, high-temperature heat exchange system and pressurized process pipeline control valves

• Power Plant Auxiliary Equipment: Turbine auxiliary piping, boiler supporting high-pressure pipelines and power station safety isolation valve systems

Product Competitive Advantages

✅ Genuine API600 Power Station Standard — Fully compliant with API600 power-grade gate valve specifications, passing strict power engineering third-party testing and acceptance.

✅ Premium A182 F22 Alloy Forging — Integral forged 2.25Cr-1Mo chrome-moly steel, higher temperature resistance and creep resistance than F11, ideal for super high-temperature power station conditions.

✅ Pressure Self-Sealing Bonnet Design — Pressure-boost sealing principle, zero leakage under 1500LB high pressure, maintenance-free bonnet sealing, lower operating cost.

✅ 1500LB Ultra-High Pressure Resistance — Thick-wall integral forged structure, anti-deformation and anti-fatigue, stable for long-term high-pressure steam pipeline continuous operation.

✅ Superior High-Temperature Stability — F22 professional high-temperature alloy, resistant to 580℃ long-cycle thermal operation, anti-aging and anti-cracking for extreme power working conditions.

✅ Full Safety & Low Failure Rate — One-piece forging defect-free structure + anti-blowout stem design, safe and reliable for high-risk power station pipeline systems.

Certification & Delivery Information

MOQ: 1 Unit
Production Lead Time: 15–25 working days for standard 1500LB F22 forged specifications
Supporting Documents: EN10204 3.1 A182 F22 Material Certificate, API600 Compliance Report, API598 Inspection Report, ISO9001 Quality Certificate, High-Temperature Pressure Test Report
Export Packaging: Internal anti-rust & sealing protection + Plastic wrap + Reinforced fumigation-free wooden export case
Warranty Service: 12-month quality warranty + lifelong professional after-sales technical support

Contact Us for customized sizes, pressure grades and bulk preferential prices of 1500LB Integral Forged A182 F22 Self-Sealing API600 Power Station Gate Valves.
