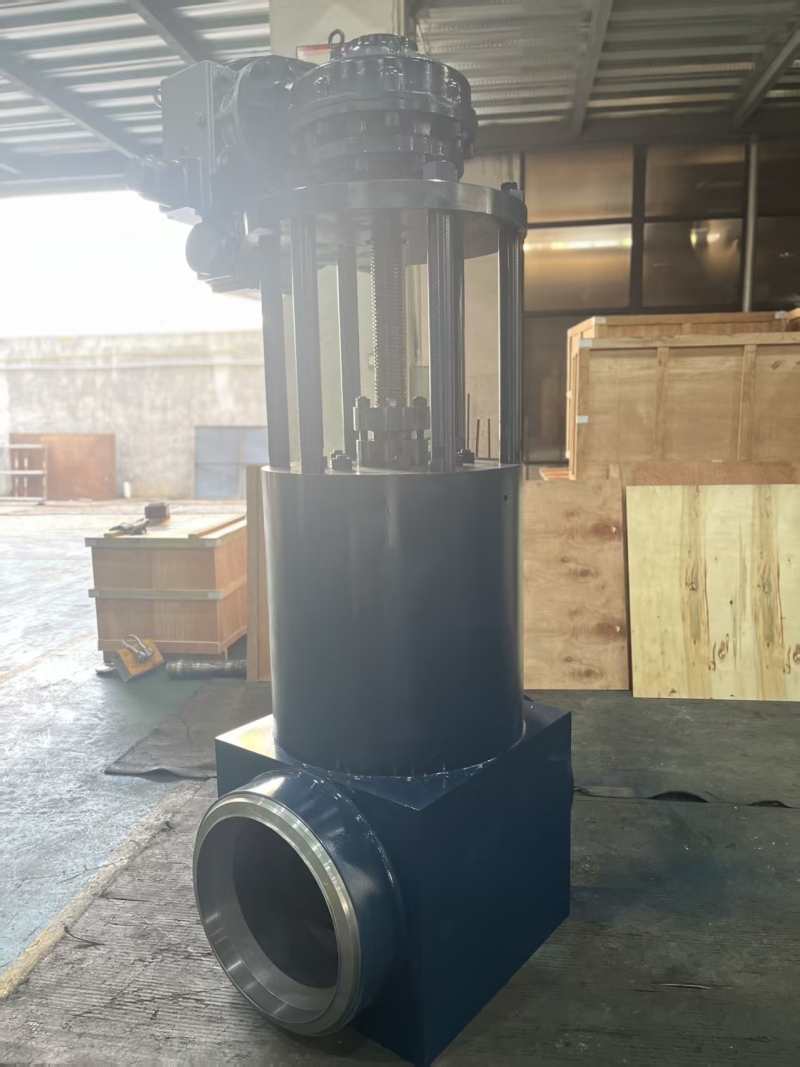

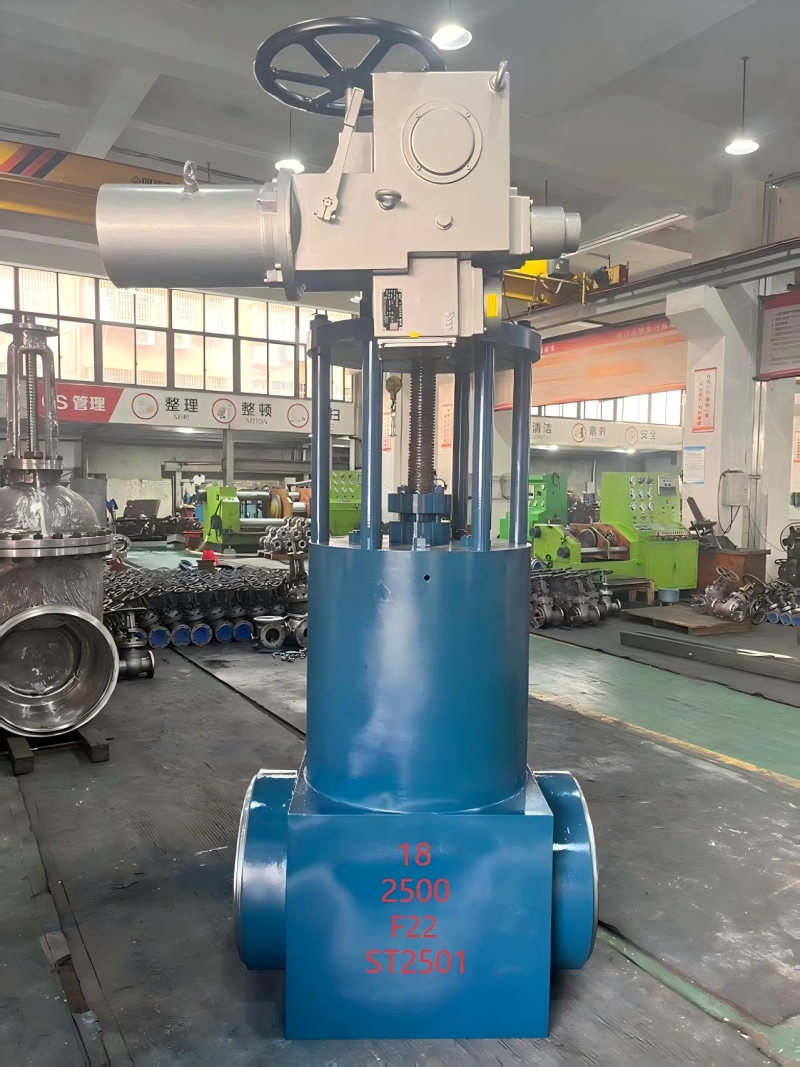

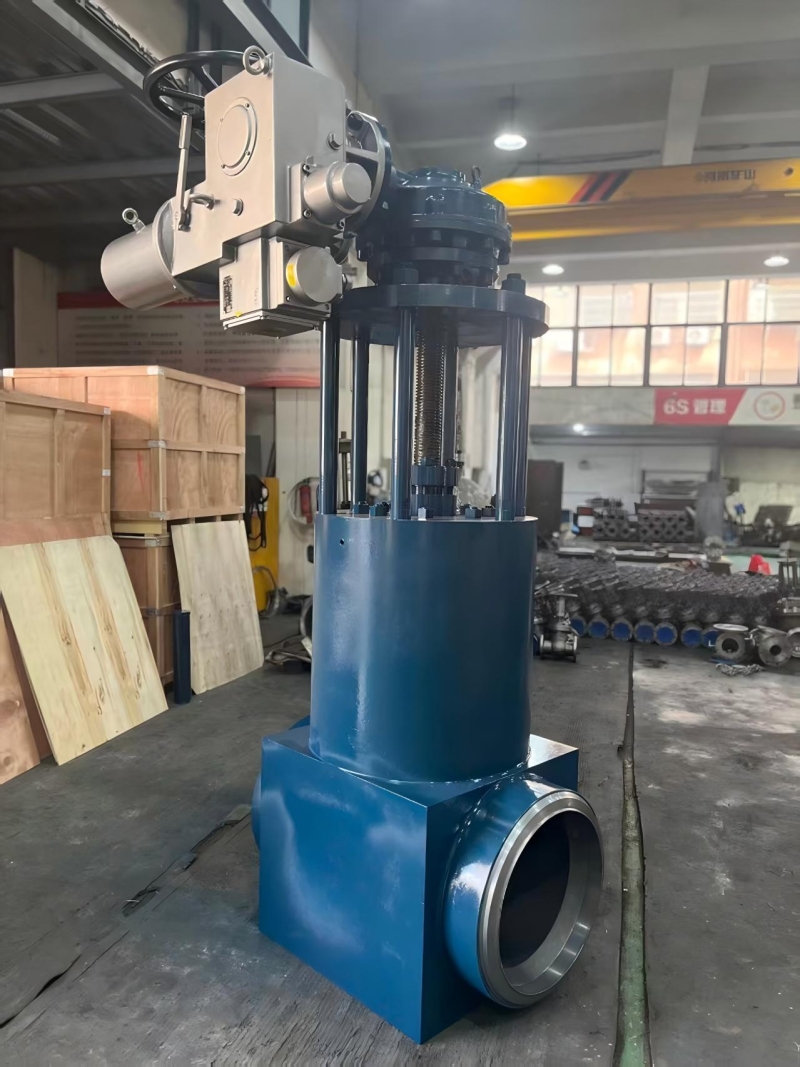

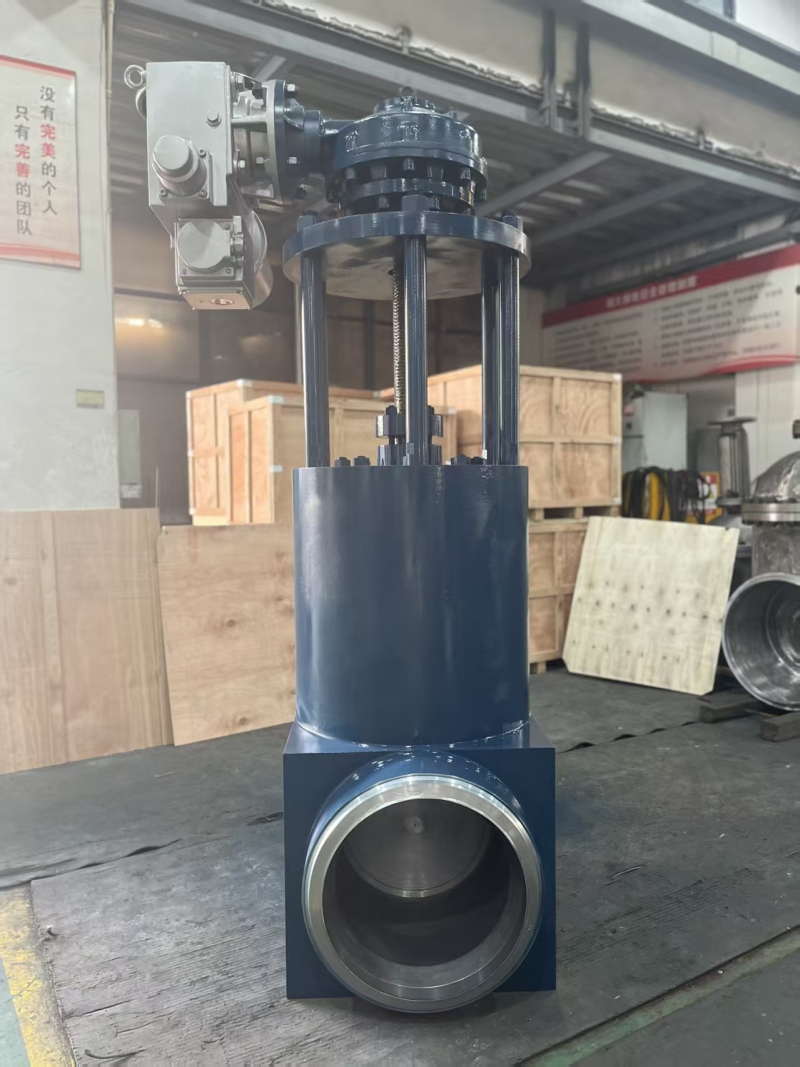

1500LB Large Bore Forged F11 High Temperature High Pressure API600 Self-Sealing Power Station Gate Valve

The 1500LB Large Bore Forged F11 High Temperature High Pressure API600 Self-Sealing Power Station Gate Valve is a heavy-duty power-grade isolation gate valve engineered strictly per API600 industrial valve standards. Adopting integral forged ASTM A182 F11 chromium-molybdenum alloy steel structure, this valve features ultra-fine metallic grain density, outstanding high-temperature creep resistance and extreme pressure bearing capacity, specially developed for 1500LB ultra-high pressure and high-temperature steam working conditions of thermal power plants. Different from conventional bolted bonnet gate valves, it adopts advanced pressure self-sealing bonnet structure, realizing pressure-enhanced tight sealing — the higher the pipeline pressure, the more reliable the sealing performance, completely eliminating high-pressure steam leakage risks.

All dimensional standards, pressure-temperature ratings, structural designs and factory tests fully comply with API600, ASME B16.34, ASME B16.10 and API598 specifications. Optimized for large-bore pipeline engineering, the full-port flow channel reduces medium resistance and pressure loss, ensuring stable long-cycle operation of main steam and auxiliary piping systems. With rising stem & outside screw yoke (OS&Y) structure, anti-blowout stem and reinforced pressure-resistant body, it delivers excellent structural stability and zero-leakage performance under continuous high-temperature and high-pressure cycling load. Widely recognized as core safety isolation equipment for thermal power, energy generation and high-pressure process industrial pipeline systems.

Core Product Features

1. Strict API600 Power-Grade Standard Compliance
Designed, manufactured and inspected fully in accordance with API600 steel gate valve specifications for power station service. All face-to-face dimensions, pressure class ratings and structural designs conform to ASME B16.34 and ASME B16.10 standards. Every valve undergoes 100% API598 hydrostatic shell test and seat tightness test, fully meeting international power plant engineering acceptance and third-party quality certification requirements.

2. Premium Forged F11 Chromium-Molybdenum Alloy Steel
Adopts integral forged ASTM A182 F11 alloy steel blank molding with continuous metal fiber structure. Compared with cast steel valves, forged F11 material features superior high-temperature oxidation resistance, creep resistance and fatigue resistance. It maintains stable mechanical strength under long-term 550℃ high-temperature and 1500LB ultra-high pressure impact, effectively avoiding structural deformation, cracking and failure of power station high-pressure pipelines.

3. Advanced Pressure Self-Sealing Bonnet Design
Equipped with professional pressure self-sealing bonnet structure exclusive for high-pressure power valves. The sealing system relies on pipeline medium pressure to compress the sealing ring actively, achieving automatic pressure compensation and enhanced tightness. No frequent bolt tightening required, solving the common leakage defect of traditional bolted bonnet valves under high-temperature and high-pressure alternating load, realizing permanent zero leakage of valve bonnet.

4. 1500LB Ultra-High Pressure & High-Temperature Resistance
Reinforced thick-wall forged valve body optimized via finite element stress analysis, specially adapted to ANSI 1500LB super high-pressure working conditions. The F11 alloy steel material stably bears high-temperature steam erosion and pressure fluctuation, suitable for long-term continuous operation of power station main steam, feed water and high-pressure process pipelines, with excellent extreme working condition adaptability.

5. Large Bore Full-Port Flow Channel Optimization
Customized large-diameter full-port design ensures straight-through medium flow with minimal flow resistance and no pressure drop. It avoids turbulent flow and medium scouring, protecting the sealing pair and extending service life. Perfectly applicable for large-bore main pipeline isolation and flow control in large-scale thermal power and industrial energy projects.

6. OS&Y Rising Stem & Safety Protection Structure
Adopts outside screw and yoke rising stem structure, clearly displaying valve opening and closing status for convenient on-site monitoring. Equipped with anti-blowout valve stem, anti-loosening locking structure and reinforced pressure-resistant sealing pair, effectively preventing stem ejection and medium leakage under ultra-high pressure, fully complying with power station high-risk pipeline safety standards.

7. Durable Anti-Fatigue & Low Maintenance Performance
Forged alloy steel body with integrated forming process has fewer vulnerable parts and no casting defects. The self-sealing structure requires no regular bolt maintenance, greatly reducing later operation and maintenance costs for power plant pipeline systems. It features strong thermal cycle resistance and long service life for continuous industrial operation.

Complete Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This API600 1500LB F11 self-sealing power station gate valve is designed for high-temperature high-pressure pipeline full open/closed isolation. Long-term throttling service is prohibited to avoid high-speed steam scouring and damage to the hard sealing pair. Operate strictly within rated 1500LB pressure and 550℃ high-temperature range to prevent alloy material fatigue and sealing failure.

2. Power-Grade Pipeline Installation Requirements
Install the valve on straight pipeline sections of power station main steam systems, keep away from elbows, pump outlets and turbulent areas. Completely clean pipeline welding slag, oxide scale and hard impurities before installation to protect the precision hard sealing surface. Adopt matched high-pressure high-temperature flanges and gaskets, tighten bolts diagonally and evenly to ensure uniform stress and avoid high-pressure steam leakage.

3. Self-Sealing Structure Protection
The pressure self-sealing bonnet relies on medium pressure for tight sealing. Avoid empty-pressure frequent switching and violent forced operation during startup and shutdown. Do not disassemble the self-sealing assembly under pressurized state to prevent sealing ring damage and medium ejection safety accidents.

4. Daily High-Temperature Maintenance & Inspection
Regularly inspect valve body deformation, stem flexibility and bonnet sealing status after long-term high-temperature operation. Check the hard seal surface wear periodically, replace aging self-sealing accessories after full pipeline depressurization and cooling. Lubricate the stem and transmission parts with high-temperature resistant grease to ensure stable switching performance of power station pipeline valves.

Wide Application Scenarios

• Thermal Power Generation: Power plant main steam pipeline, superheated steam system, boiler feed water and high-pressure auxiliary pipeline isolation valves

• Energy & Utility Engineering: High-temperature high-pressure industrial steam pipeline systems, central power supply and energy station process pipelines

• Petrochemical High-Pressure System: Refinery high-temperature steam, heating medium and high-pressure process fluid shutoff equipment

• Industrial High-Temperature Pipeline: Heavy industry high-pressure steam circulation, high-temperature heat exchange and pressurized pipeline control systems

• Power Plant Auxiliary Equipment: Turbine auxiliary piping, boiler supporting pipelines and high-pressure safety isolation valve systems

Product Competitive Advantages

✅Genuine API600 Power Station Standard — Fully compliant with API600 high-pressure power valve specifications, passing strict power engineering third-party acceptance.

✅ Forged F11 Chrome-Moly Alloy Steel — Integral forging process, excellent high-temperature creep resistance and pressure resistance, far more reliable than cast valves for power station extreme conditions.

✅ Pressure Self-Sealing Bonnet Design — Pressure-boost sealing principle, zero leakage under high pressure, no regular bolt tightening, low maintenance cost.

✅ 1500LB Ultra-High Pressure Resistance — Reinforced thick-wall forged structure, stable and safe for long-term high-pressure steam pipeline operation.

✅ Large Bore Full-Port Optimization — Straight-through flow channel, low pressure loss, suitable for large-diameter main pipeline isolation in power projects.

✅ High-Temperature Anti-Fatigue Performance — F11 alloy material adapts to 550℃ long-cycle high-temperature operation, anti-aging and anti-deformation for power station continuous service.

Certification & Delivery Information

MOQ: 1 Unit
Production Lead Time: 15–25 working days for standard 1500LB F11 forged specifications
Supporting Documents: EN10204 3.1 F11 Material Certificate, API600 Compliance Report, API598 Inspection Report, ISO9001 Quality Certificate, High-Temperature Pressure Test Report
Export Packaging: Internal anti-rust & sealing protection + Plastic wrap + Reinforced fumigation-free wooden export case
Warranty Service: 12-month quality warranty + lifelong professional after-sales technical support

Contact Us for customized large bore sizes, pressure grades and bulk preferential prices of 1500LB Forged F11 API600 Self-Sealing Power Station Gate Valves.
