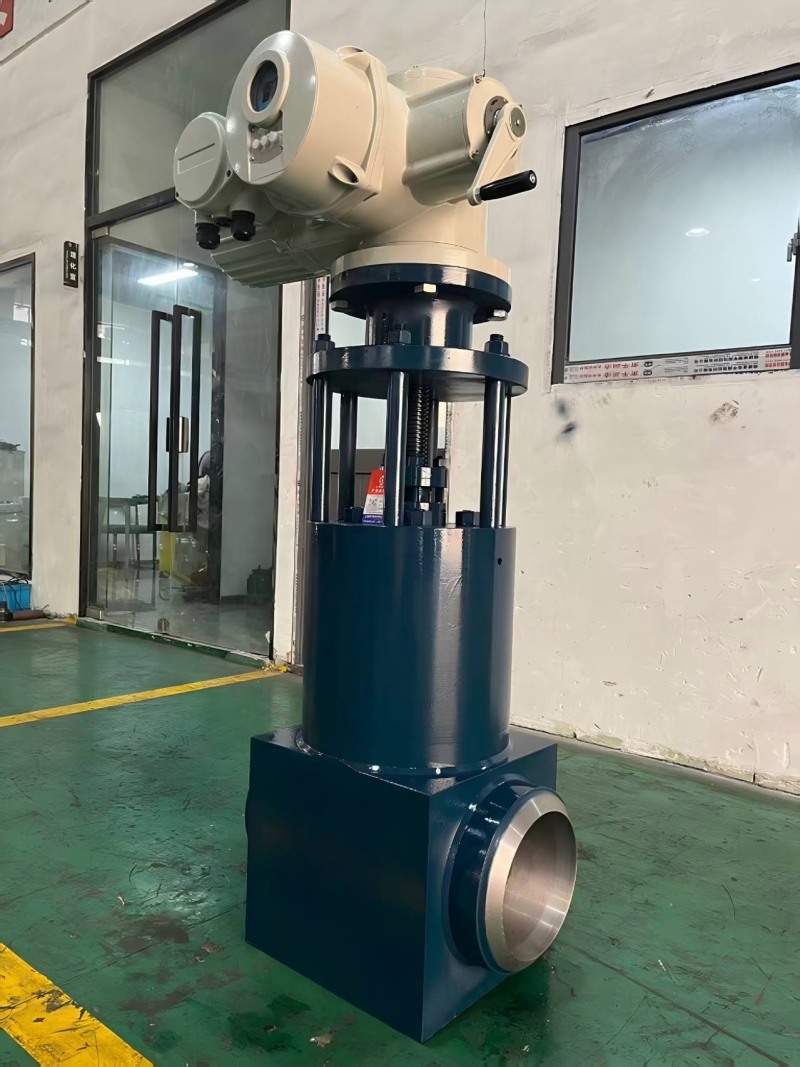

2500LB Electric Integral Forged A182 F22 BW Self-Sealing High Temperature API600 Power Station Gate Valve

The 2500LB Electric Integral Forged A182 F22 BW Self-Sealing High Temperature API600 Power Station Gate Valve is a top-tier automatic ultra-high pressure power-grade isolation valve strictly designed and manufactured per API600 industrial power valve standards. Adopting one-piece integral open-die forging process with premium ASTM A182 F22 (2.25Cr-1Mo) chromium-molybdenum alloy steel, this valve features continuous dense metal fiber structure, zero casting defects, extreme mechanical strength and outstanding high-temperature creep resistance, perfectly customized for ANSI 2500LB ultra-high pressure and 593℃ super-high temperature superheated steam harsh working conditions of supercritical and ultra-supercritical thermal power units. Different from conventional manual and flanged valves, this model is equipped with industrial electric actuator for remote automatic control and adopts full BW butt welded end structure, achieving seamless pipeline integration and zero leakage connection. Combined with advanced medium pressure self-sealing bonnet technology, it realizes pressure-boost sealing performance — the higher the pipeline pressure, the tighter the sealing effect, completely solving long-standing high-temperature steam leakage problems of traditional bolted bonnet valves.

All dimensional tolerances, pressure-temperature ratings, structural designs and factory inspection standards fully comply with API600, ASME B16.34, ASME B16.10 and API598 international industrial specifications. Designed with full-port straight-through flow channel, the valve minimizes medium flow resistance and pipeline pressure drop, ensuring stable long-cycle automatic operation of power plant main steam, boiler feed water and high-pressure auxiliary piping systems. Featured with OS&Y outside screw rising stem, integral anti-blowout stem and thickened integral forged pressure-resistant body, it maintains reliable zero-leakage tight shutoff under repeated extreme high-temperature and high-pressure alternating loads. It is the preferred automatic safety isolation valve for large-scale thermal power stations, petrochemical high-temperature process pipelines and heavy industrial ultra-high-pressure energy projects.

Core Product Features

1. Strict API600 Power-Grade Standard Compliance
Designed, manufactured and fully inspected in accordance with API600 steel gate valve specifications for critical power station service. All face-to-face dimensions, ANSI pressure class ratings and internal structural designs conform to ASME B16.34 and ASME B16.10 industrial standards. Every finished valve undergoes 100% API598 hydrostatic shell pressure test and seat tightness sealing test, fully meeting international supercritical power project third-party audit and engineering acceptance requirements.

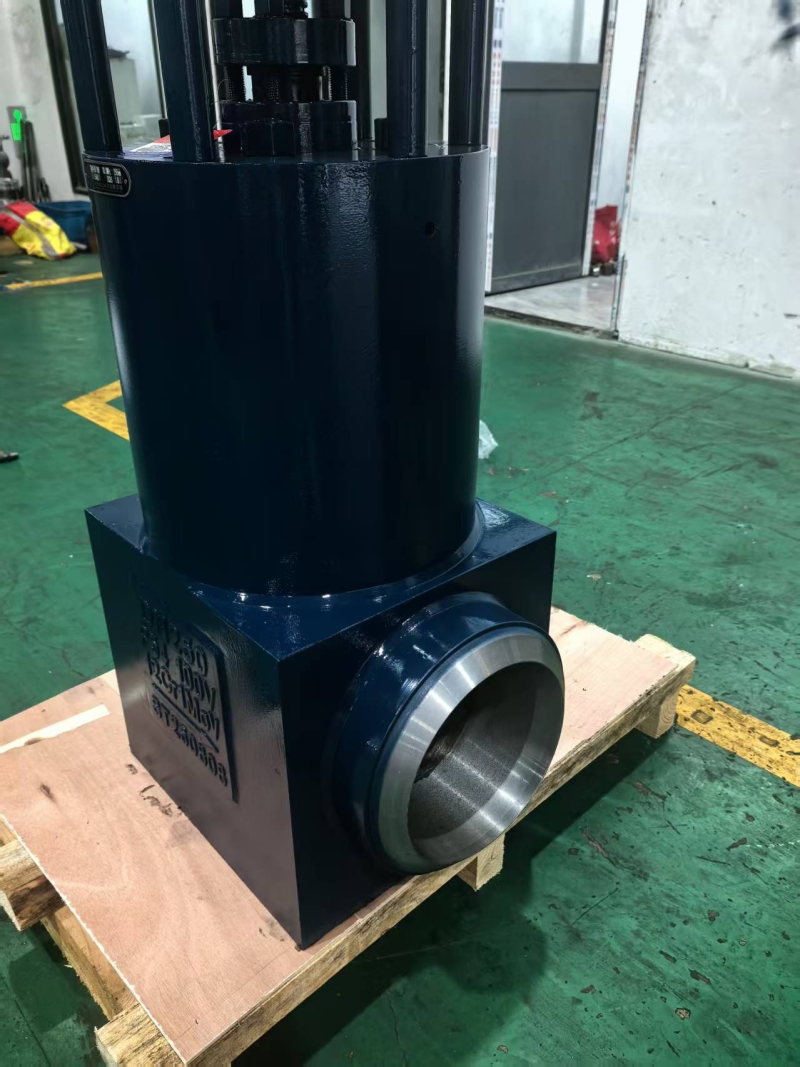

2. Integral Forged A182 F22 Chrome-Moly Alloy Steel Body
Adopts premium ASTM A182 F22 (2.25Cr-1Mo) chromium-molybdenum alloy steel one-piece integral forging molding, with continuous uniform metal fiber and ultra-compact internal structure. Compared with F11 steel and ordinary cast steel valves, A182 F22 material delivers superior high-temperature creep resistance, thermal fatigue resistance and hydrogen embrittlement resistance. It stably maintains structural rigidity under long-term 593℃ ultra-high temperature and 2500LB super high-pressure impact, effectively preventing deformation, cracking and medium leakage of power station ultra-high-pressure main steam pipelines.

3. Pressure Self-Sealing Bonnet Structure for Ultra-High Pressure
Equipped with exclusive power-grade pressure self-sealing bonnet optimized for 2500LB severe service. The sealing assembly actively compresses the sealing ring relying on pipeline medium pressure, realizing automatic pressure compensation and reinforced tightness. Unlike traditional bolted bonnet valves that require regular bolt tightening, this self-sealing structure achieves tighter sealing under higher pressure, requiring no daily maintenance and permanently eliminating high-temperature high-pressure steam leakage at the bonnet joint.

4. ANSI 2500LB Super High Pressure & High Temperature Resistance
Optimized thick-wall integral forged valve body via finite element stress simulation analysis, specially reinforced for ANSI 2500LB ultra-high pressure working conditions. The upgraded F22 alloy steel adapts to extreme thermal cycle environments, resisting severe steam erosion, ultra-high pressure impact and long-term thermal deformation. It operates stably and continuously for years in supercritical power plant main steam pipelines with drastic working condition fluctuations.

5. BW Butt Weld Seamless Connection Structure
Adopts standard ASME BW butt welded end design, realizing full penetration seamless welding with power station main pipelines. Completely eliminates flange gasket aging and leakage risks of flanged valves, greatly improving the overall structural integrity, pressure resistance and operational safety of ultra-high-pressure steam pipeline systems. The full-port straight flow channel reduces medium turbulent scouring and extends the service life of precision hard sealing pairs.

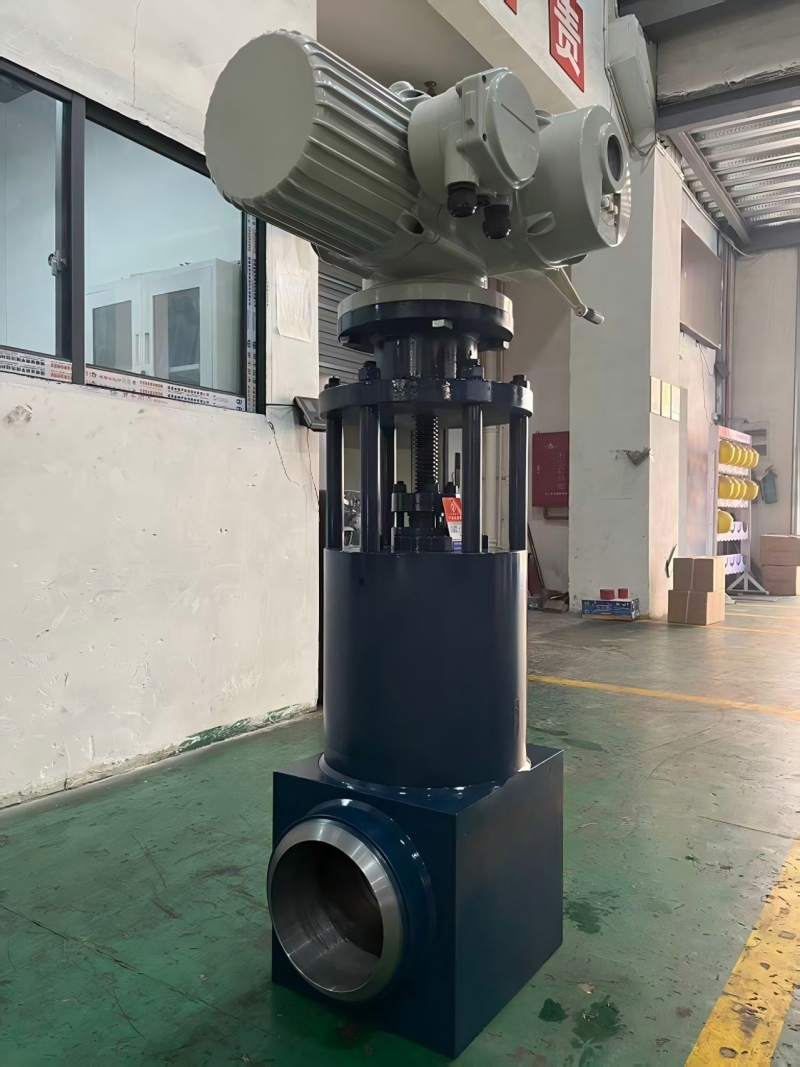

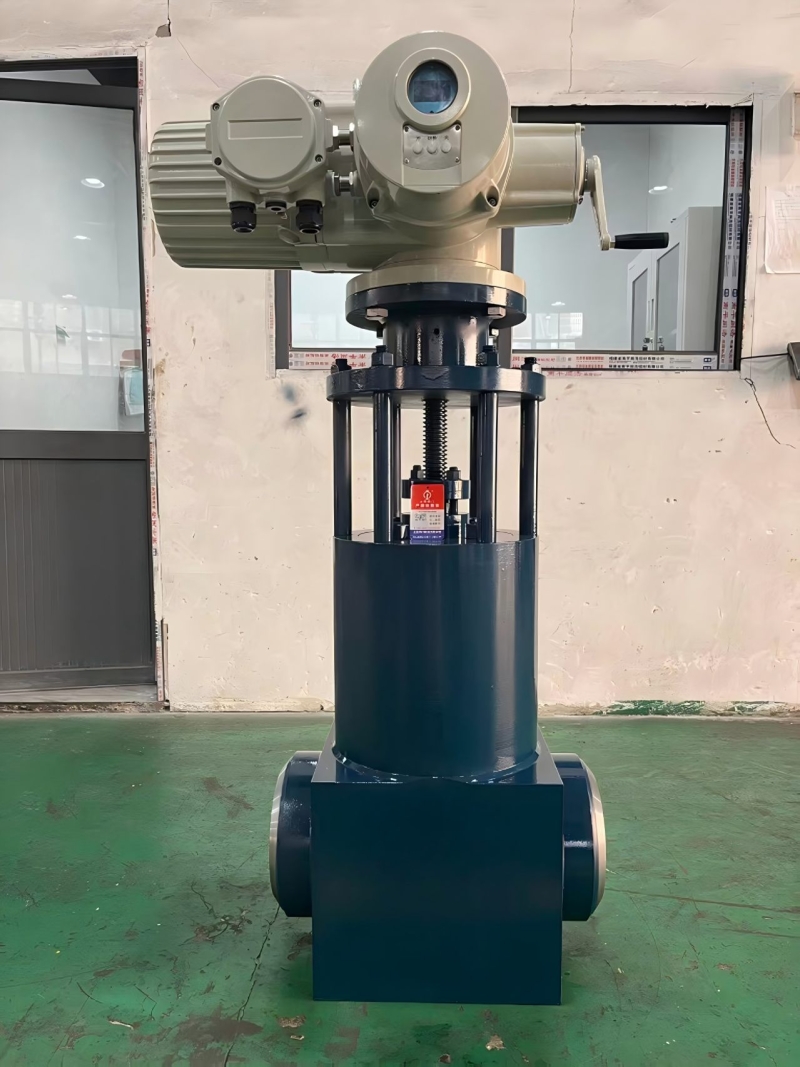

6. Intelligent Electric Automatic Control System
Matched with high-performance industrial electric actuator, supporting remote signal control, local manual emergency operation, opening/closing position feedback and fault alarm functions. It realizes unattended automatic pipeline isolation and flow cut-off, perfectly compatible with DCS centralized control systems of modern large-scale power plants. Stable torque output protects the valve stem and sealing structure from damage under 2500LB ultra-high pressure.

7. Full-Port Straight-Through Flow Channel
Features standard full-port straight-through flow channel with smooth inner wall, effectively reducing medium flow resistance and pipeline pressure loss. It avoids turbulent scouring on the gate and seat sealing surface, protecting precision hard-sealing components and extending overall valve service life, ideal for large-bore main pipeline isolation in supercritical power generation projects.

8. OS&Y Rising Stem & Complete Safety Protection
Adopts outside screw and yoke (OS&Y) rising stem structure for intuitive on-site opening and closing status observation. Equipped with integral anti-blowout valve stem, anti-loosening locking device and Stellite alloy hardfacing sealing pair, it effectively prevents stem ejection and medium leakage under extreme ultra-high pressure, fully complying with high-risk power station pipeline safety operation specifications.

Complete Technical Specifications

Installation, Operation & Maintenance Notes

1. Standard Operation Guidelines
This API600 2500LB F22 electric self-sealing power station gate valve is designed for ultra-high pressure high-temperature pipeline full open/closed automatic isolation. Long-term throttling service is strictly prohibited to avoid high-speed steam scouring damage to the precision hard sealing pair. Operate strictly within rated 2500LB pressure and 593℃ ultra-high temperature range to prevent F22 alloy thermal fatigue and sealing failure.

2. BW Welding Installation Requirements
Install the valve on straight pipeline sections of power station main steam systems, keeping away from elbows, pump outlets and turbulent areas. Remove all welding slag, oxide scale and hard impurities before welding to protect the sealing surface. Adopt professional power-grade welding process for full penetration BW butt welding, ensure uniform welding stress and seamless pipeline integration to eliminate high-pressure leakage risks.

3. Self-Sealing & Electric Structure Protection
The pressure self-sealing bonnet relies on medium pressure for tight sealing; avoid frequent no-load switching and do not disassemble sealing components under pressurized state. Protect the electric actuator from high-temperature radiation, heavy impact and water immersion during installation and operation to ensure stable automatic control performance.

4. Daily Inspection & Maintenance
Regularly inspect valve body tightness, stem flexibility and electric actuator operating status after long-term high-temperature operation. Replace aging self-sealing accessories only after complete pipeline depressurization and cooling. Lubricate transmission parts with high-temperature resistant grease and conduct regular electric system fault detection to ensure long-term stable automatic operation.

Wide Application Scenarios

• Supercritical Thermal Power Generation: Ultra-supercritical power plant main steam pipeline, superheated steam system and high-pressure boiler feed water isolation valve systems

• Automatic Power Plant Control System: Centralized DCS control pipeline, unattended power station high-pressure steam cut-off equipment

• High-End Petrochemical Industry: Refinery ultra-high pressure high-temperature process pipelines, hydrogenation unit and heating medium pipeline systems

• Heavy Industrial Energy Pipeline: Industrial ultra-high pressure steam circulation, high-temperature heat exchange and pressurized process pipeline control systems

• Power Plant Critical Auxiliary Equipment: Turbine auxiliary piping, boiler main supporting pipelines and emergency safety isolation valve systems

Product Competitive Advantages

✅Genuine API600 Power Station Grade — Fully compliant with API600 power valve standards, passing strict ultra-high pressure and high-temperature third-party acceptance.

✅ Premium A182 F22 Forged Alloy — 2.25Cr-1Mo chrome-moly steel integral forging, higher creep resistance than F11, stable at 593℃ extreme high temperature and 2500LB ultra-high pressure.

✅ 2500LB Ultra-High Pressure Resistance — Thick-wall reinforced forged structure, anti-deformation and anti-fatigue, suitable for supercritical power station extreme working conditions.

✅ BW Butt Weld Seamless Structure — Full penetration welded connection, zero gasket leakage risk, higher safety and stability than flanged valves for main pipeline service.

✅ Pressure Self-Sealing Bonnet Design — Higher pressure better sealing, maintenance-free bonnet sealing, effectively reducing power plant operation costs.

✅ Intelligent Electric Automatic Control — Remote automatic switch control, compatible with modern power plant DCS system, realizing unattended pipeline management.

Certification & Delivery Information

MOQ: 1 Unit
Production Lead Time: 18–28 working days for standard 2500LB F22 BW forged specifications
Supporting Documents: EN10204 3.1 F22 Material Certificate, API600 Compliance Report, API598 Pressure Test Report, ISO9001 Certificate, High Temperature & High Pressure Test Report
Export Packaging: Internal anti-rust treatment + moisture-proof protection + Plastic wrap + Reinforced fumigation-free wooden case
Warranty Service: 12-month quality warranty + lifelong professional after-sales technical support

Contact Us for customized sizes, actuator types and bulk prices of 2500LB Electric Integral Forged A182 F22 BW Self-Sealing API600 Power Station Gate Valves.
