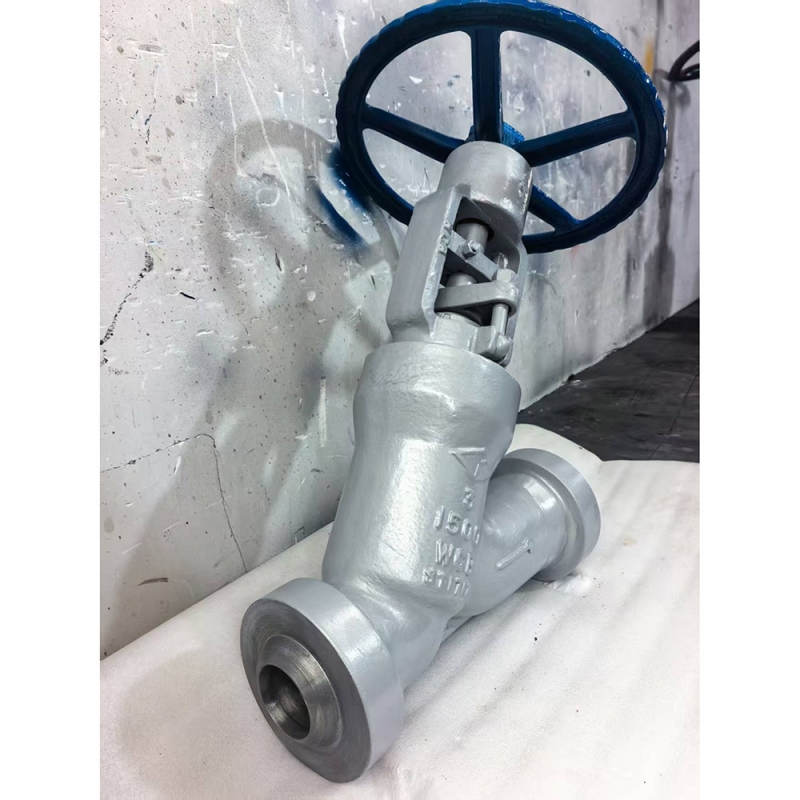

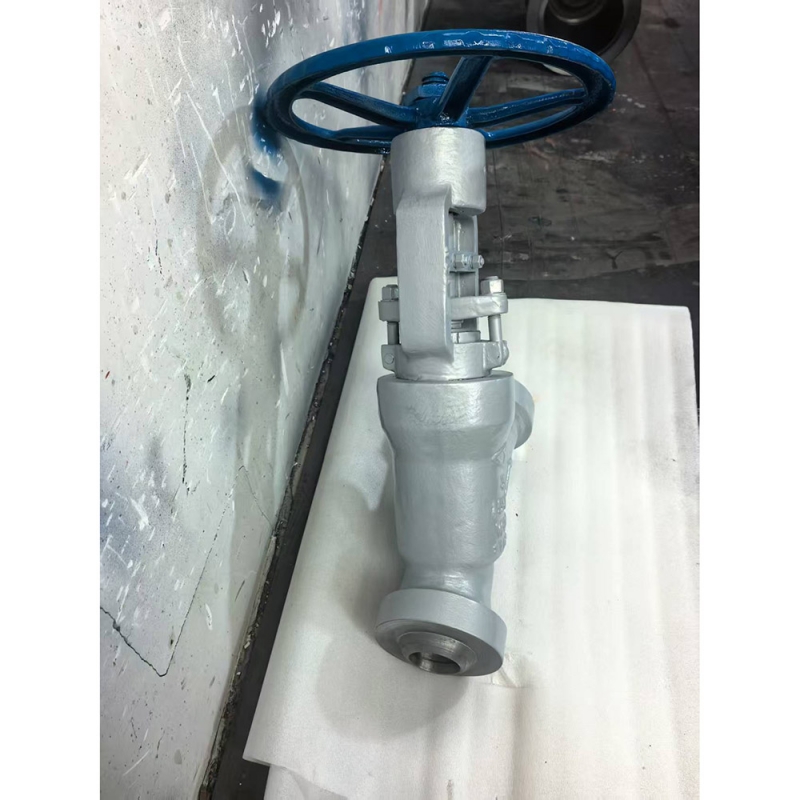

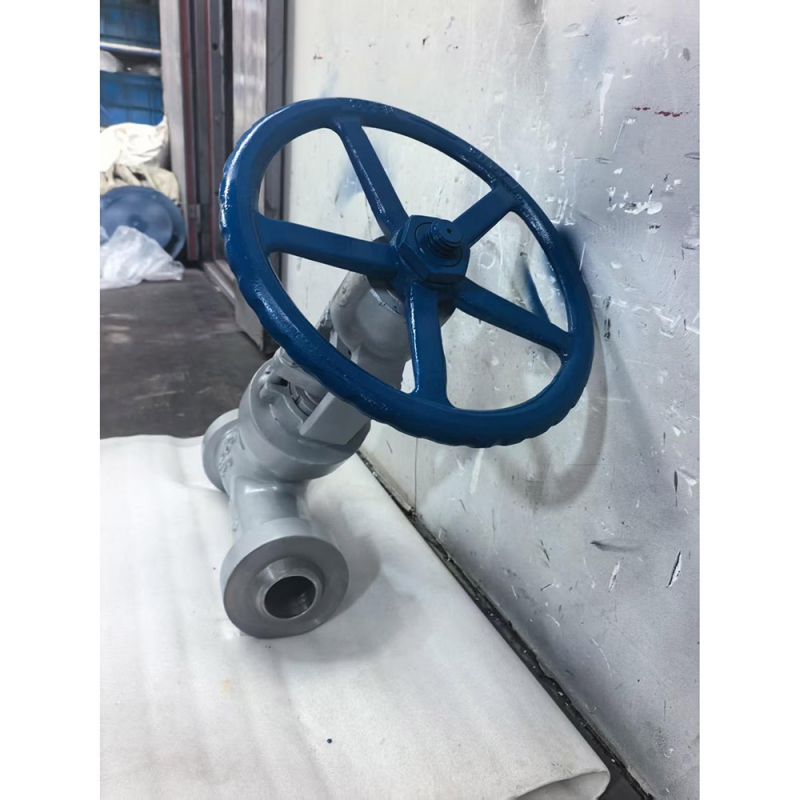

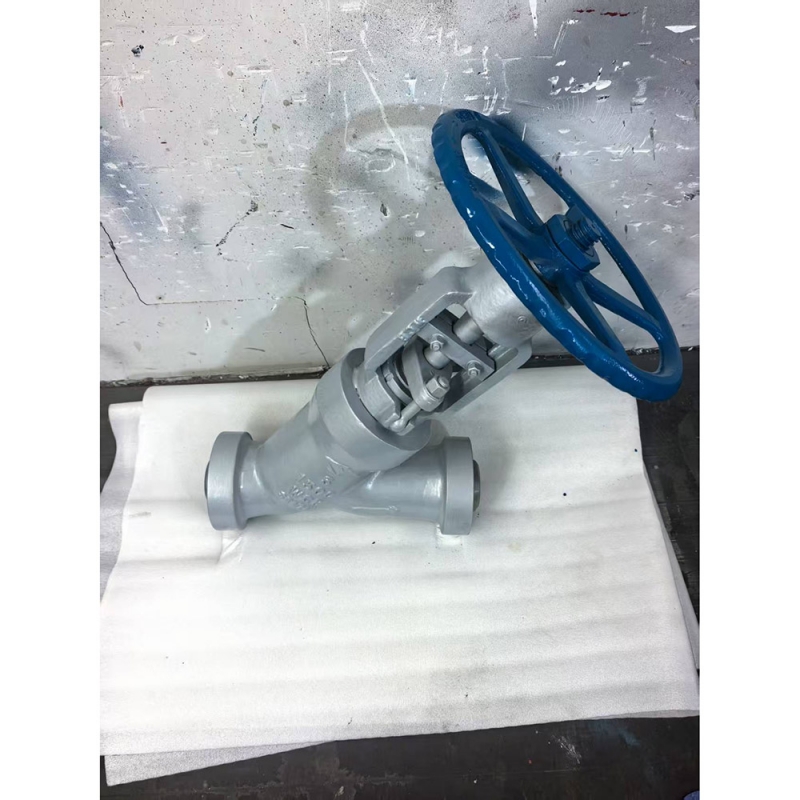

Engineered for extreme thermal and pressure conditions, the Class 1500 API 600 High Temperature High Pressure Welded Alloy Steel Y-Type Globe Valve delivers uncompromising safety, precise flow regulation, and minimized pressure loss.
Designed strictly to API 600 standards, this valve is built to withstand severe thermal cycling and ultra-high internal pressures up to Class 1500. It features a distinctive Y-type body configuration that reduces flow resistance by up to 50% compared to traditional globe valves, combined with welded end connections (BW/SW) for permanent, leak-proof pipeline integration. Constructed from high-strength alloy steel (such as WC6/WC9) and equipped with a pressure seal bonnet, this HTHP Y-type globe valve ensures reliable throttling, zero-leakage shut-off, and seamless integration into critical main steam, reheat steam, and high-pressure feedwater systems in thermal and nuclear power plants.
Key Features & Benefits
· Y-Type Low Pressure Drop Design: The inclined Y-shaped flow channel minimizes flow resistance and pressure loss by up to 50% compared to standard globe valves, significantly improving system efficiency in high-velocity steam services.
· API 600 Standard Compliance: Designed and manufactured strictly to API 600 specifications, ensuring dimensional compatibility, structural safety, and reliable performance in global petroleum and petrochemical infrastructure.
· HTHP Alloy Steel Construction: Crafted from premium alloy steel (WC6/WC9), providing superior creep resistance, high-temperature strength, and structural integrity in severe thermal cycling environments up to 595°C.
· Welded End Connections: Features butt-welded (BW) or socket-welded (SW) ends to provide a permanent, structurally sound, and completely leak-proof connection, essential for Class 1500 ultra-high-pressure applications.
· Pressure Seal Bonnet: Utilizes a self-sealing bonnet structure where internal media pressure enhances the sealing force, guaranteeing zero leakage at Class 1500 and above without the need for massive external bolting.
· Stellite Hard-Faced Trim: Seat rings and disc seating surfaces are overlaid with Stellite 6 (Co-Cr-W alloy) to resist severe erosion, high-temperature corrosion, and galling in aggressive steam and oil flows.
Technical Specifications
Parameter | Specification |
Valve Type | Welded Y-Type Globe Valve |
Design Standard | API 600, ASME B16.34 |
Body Material | Alloy Steel (WC6, WC9, C5) |
End Connection | Welded (BW / SW) |
Pressure Rating | Class 1500 (PN250) |
Size Range | 2" - 12" (DN50 - DN300) |
Temperature Range | -29°C to +595°C |
Trim Material | Alloy Steel + Stellite 6 Hard-Faced |
Operation | Manual Handwheel / Bevel Gear / Electric |
Testing & Inspection | API 598 |
Applications
This high-performance Class 1500 API 600 Y-type globe valve is widely deployed in:
· Power Generation: Main steam, reheat steam, and high-pressure feedwater lines in thermal and nuclear power plants.
· Supercritical Units: Ultra-high-temperature and ultra-high-pressure steam piping networks requiring low pressure drop and zero-leakage throttling.
· Oil Refineries: High-temperature crude oil, hot product pipelines, and coker units requiring precise flow regulation.
· Petrochemical Plants: High-pressure steam and hot oil processing lines in critical cracking and processing units.
· Industrial Boilers: High-pressure steam generation headers and distribution systems.
FAQ
Q: What is the advantage of a Y-type globe valve over a standard globe valve?
A: Y-type globe valves feature an inclined flow channel that reduces flow resistance and pressure drop by up to 50% compared to traditional globe valves. This design minimizes energy loss in high-velocity steam services while maintaining precise throttling and shut-off capabilities.
Q: Why choose alloy steel (WC6/WC9) for Class 1500 HTHP valves?
A: Alloy steels like WC6 and WC9 contain chromium and molybdenum, which significantly enhance high-temperature strength, creep resistance, and oxidation resistance. They prevent valve body deformation and failure under continuous exposure to extreme heat (up to 595°C) and ultra-high pressure.
Q: What is the benefit of welded end connections for Y-type globe valves?
A: Welded end connections (BW/SW) provide a permanent, leak-proof seal directly to the pipeline, eliminating potential leak paths associated with flanged connections. For Class 1500 HTHP applications, welded connections offer superior structural integrity and safety in severe service environments.
